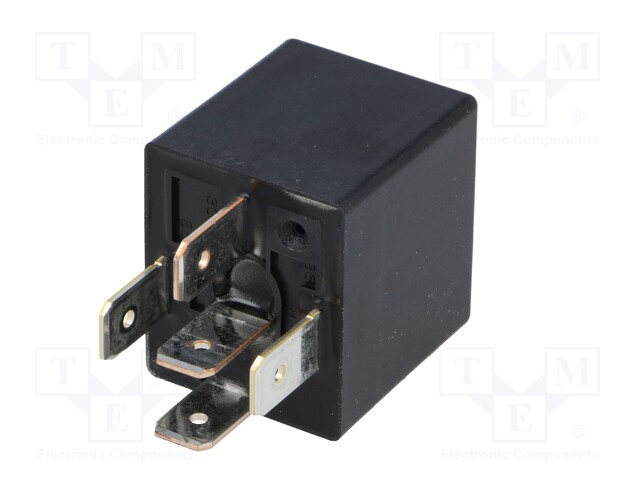

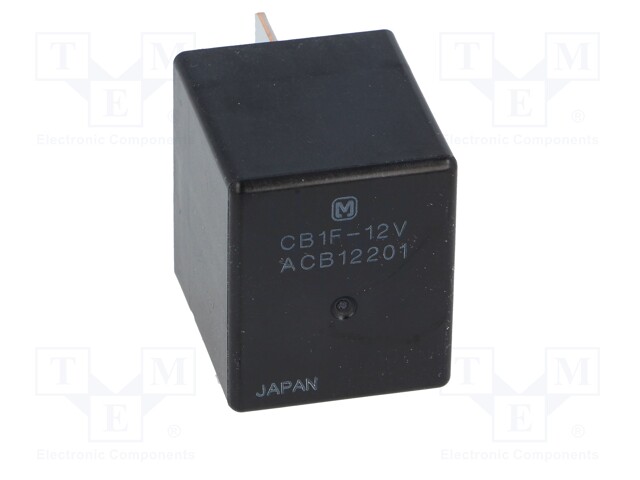

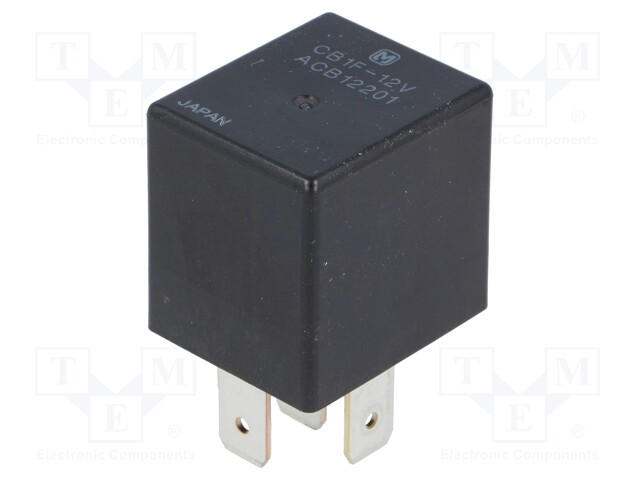

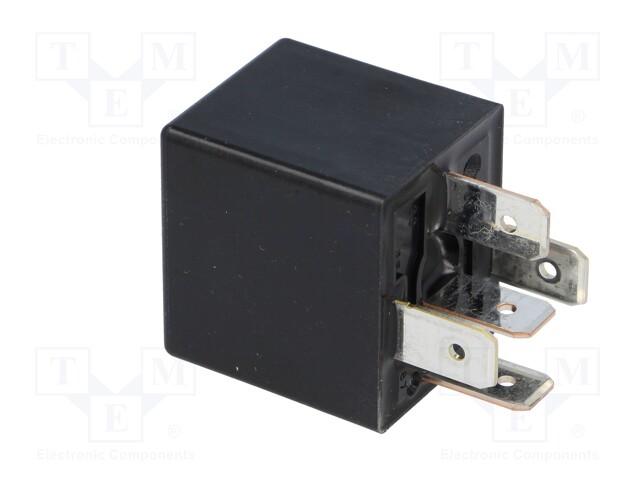

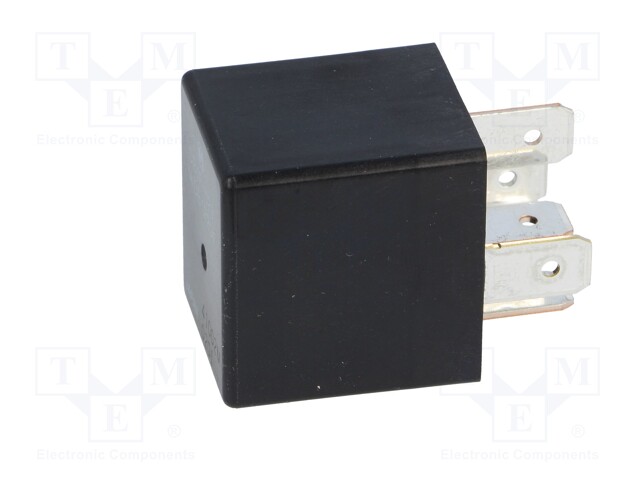

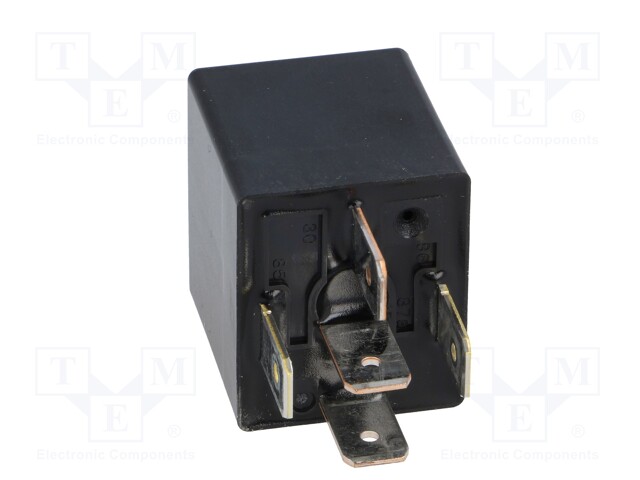

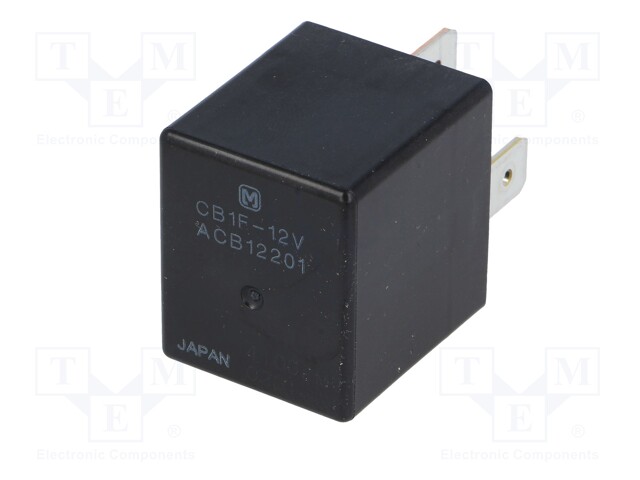

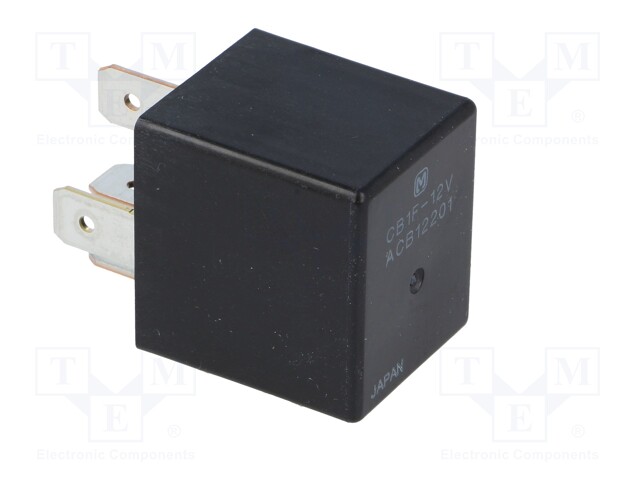

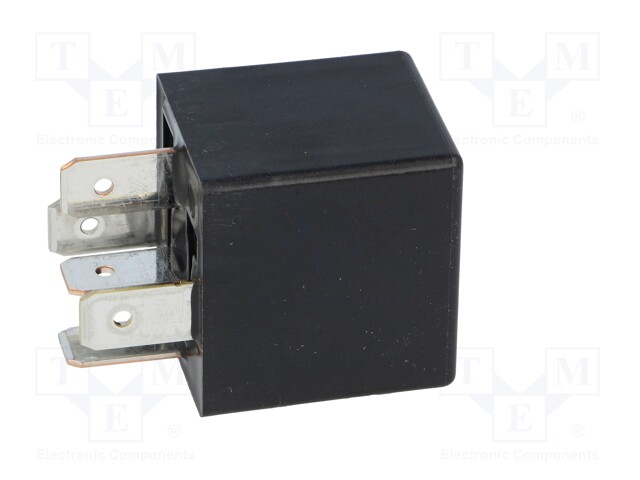

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 40A; automotive; 103Ω

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: CB1F-12V
    Tootja: PANASONIC
    Tootja tootekood: CB1F-12V
    • Mounting
    • Operating temperature
    • Body dimensions
    • Mechanical durability
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil current

    9,87 € 9,87 € (KM-TA) 9.870000000000001 EUR

    9,87 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 40A; automotive; 103Ω

    Mounting socket
    Operating temperature -40...85°C

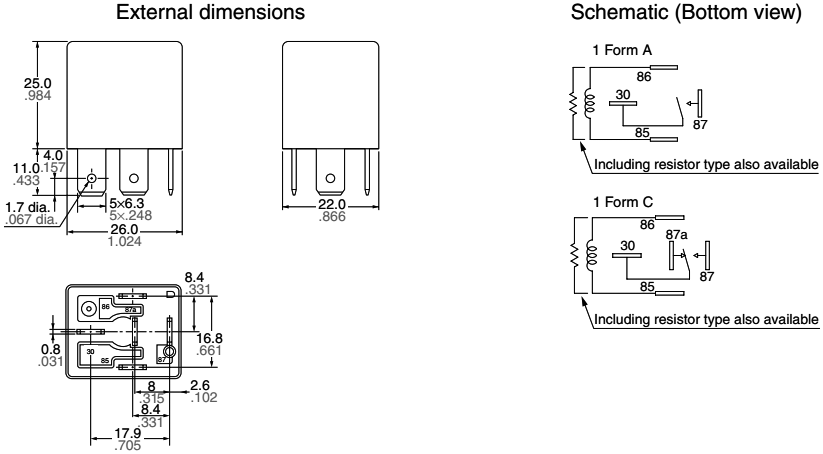

    Body dimensions 26x22x25mm
    Mechanical durability 1000000cycles
    Coil resistance 103Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    Contact current max. 40A
    Relay variant automotive
    Type of relay electromagnetic
    Coil voltage min. 9V DC
    Coil power consumption 1.4W
    Coil current 117mA
