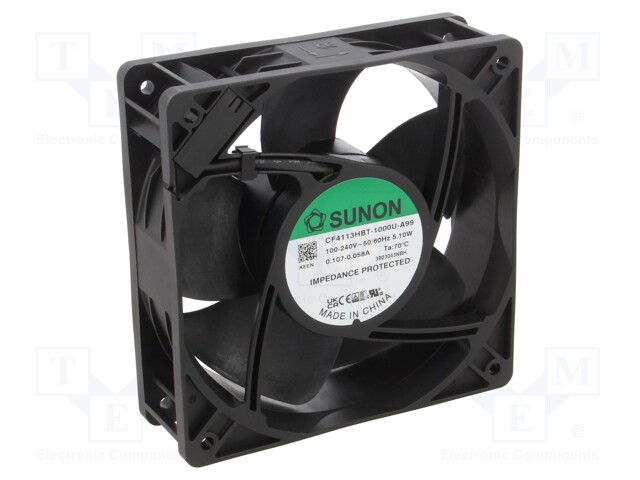

Fan: EC; axial; 230VAC; 120x120x38mm; 164m3/h; 44.9dBA; 3600rpm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: CF4113HBT-1000U-A99
    Tootja: SUNON
    Tootja tootekood: CF4113HBT-1000U-A99
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Leads
    • Series
    • Current rating
    • Frequency
    • Fan efficiency
    • Power consumption
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Type of fan
    • Noise level

    32,76 € 32,76 € (KM-TA) 32.76 EUR

    32,76 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Fan: EC; axial; 230VAC; 120x120x38mm; 164m3/h; 44.9dBA; 3600rpm

    Supply voltage 230V AC
    Operating temperature -25...70°C
    Enclosure material thermoplastic
    Leads connectors
    Series ECO
    Current rating 58mA
    Frequency 50...60Hz
    Fan efficiency 164m<sup>3</sup>/h
    Power consumption 5.1W
    Rotational rate/speed 3600rpm
    Fan motor brushless EC motor
    Fan dimensions 120x120x38mm
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Type of fan EC
    Noise level 44.9dBA
