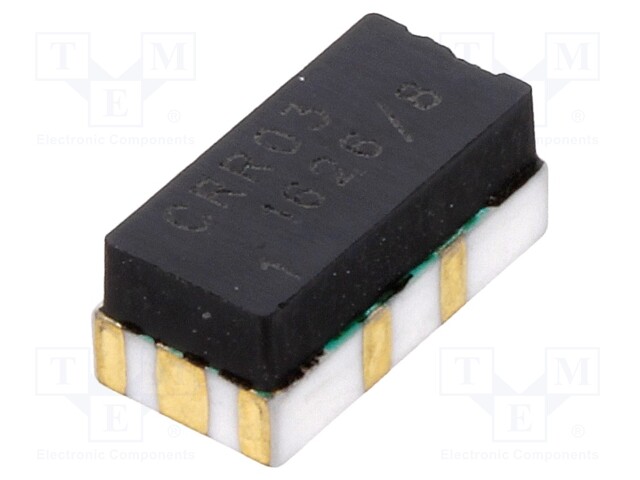

Relay: reed; SPST-NO; Ucoil: 3VDC; 0.5A; max.170VDC; max.170VAC; 10W

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: CRR03-1A
    Tootja: MEDER
    Tootja tootekood: CRR03-1A
    • Mounting
    • Operating temperature
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact current max.
    • Type of relay
    • Coil power consumption
    • Operate time

    10,32 € 10,32 € (KM-TA) 10.32 EUR

    10,32 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 3VDC; 0.5A; max.170VDC; max.170VAC; 10W

    Mounting SMD
    Operating temperature -40...125°C

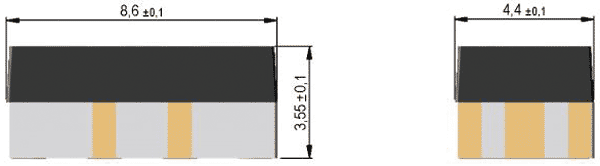

    Body dimensions 4.4x8.6x3.55mm
    Switched voltage ≤ 170V AC, ≤ 170V DC
    Switching capacity 10W
    Coil resistance 70Ω
    Rated coil voltage 3V DC
    Contacts configuration SPST-NO
    Contact current max. 500mA
    Type of relay reed
    Coil power consumption 167mW
    Operate time 600µs
