Reed switch; Range: 25÷50AT; Pswitch: 5W; 6.4x2.31x2.31mm

    Kordarv: 2000.0
    Minimum quantity: 2000.0
    Tootekood: CT05-3050-G1-1
    Tootja:
    Tootja tootekood: CT05-3050-G1
    • Max. operating current
    • Operating temperature
    • Max. contact resistance
    • Body dimensions
    • Breakdown voltage
    • Switched voltage
    • Min. insulation resistance
    • Type of sensor
    • Switching capacity
    • Contacts configuration
    • Switched current
    • Measuring range

    4,05 € 4,05 € (KM-TA) 4.05 EUR

    4,05 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Reed switch; Range: 25÷50AT; Pswitch: 5W; 6.4x2.31x2.31mm

    Max. operating current 500mA
    Operating temperature -40...125°C
    Max. contact resistance 160mΩ

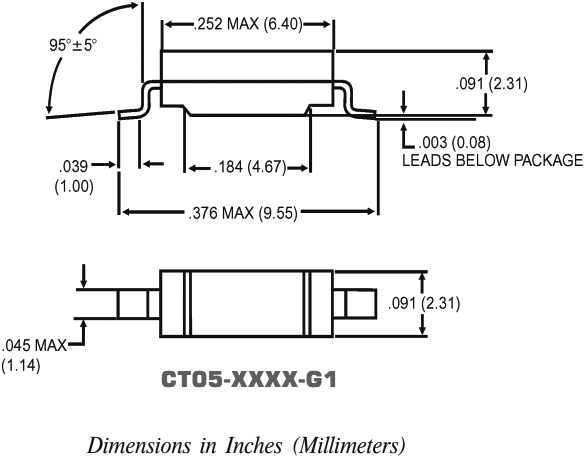

    Body dimensions 6.4x2.31x2.31mm
    Breakdown voltage 230V
    Switched voltage ≤ 140V
    Min. insulation resistance 1TΩ
    Type of sensor reed switch
    Switching capacity 5W
    Contacts configuration SPST-NO
    Switched current 350mA
    Measuring range 25...50AT
