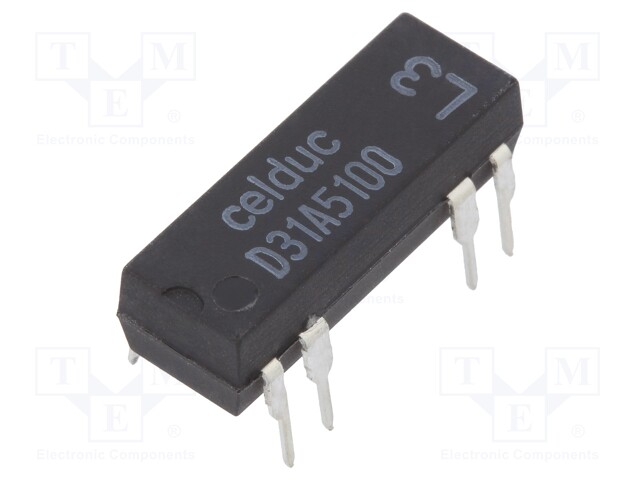

Relay: reed; SPST-NO; Ucoil: 12VDC; 1A; max.100VDC; 10W; Rcoil: 1000Ω

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: D31A5100
    Tootja: CELDUC
    Tootja tootekood: D31A5100
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.

    6,23 € 6,23 € (KM-TA) 6.23 EUR

    6,23 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 12VDC; 1A; max.100VDC; 10W; Rcoil: 1000Ω

    Mounting PCB
    Case DIP14
    Operating temperature -40...70°C
    Terminal pitch 2.54mm

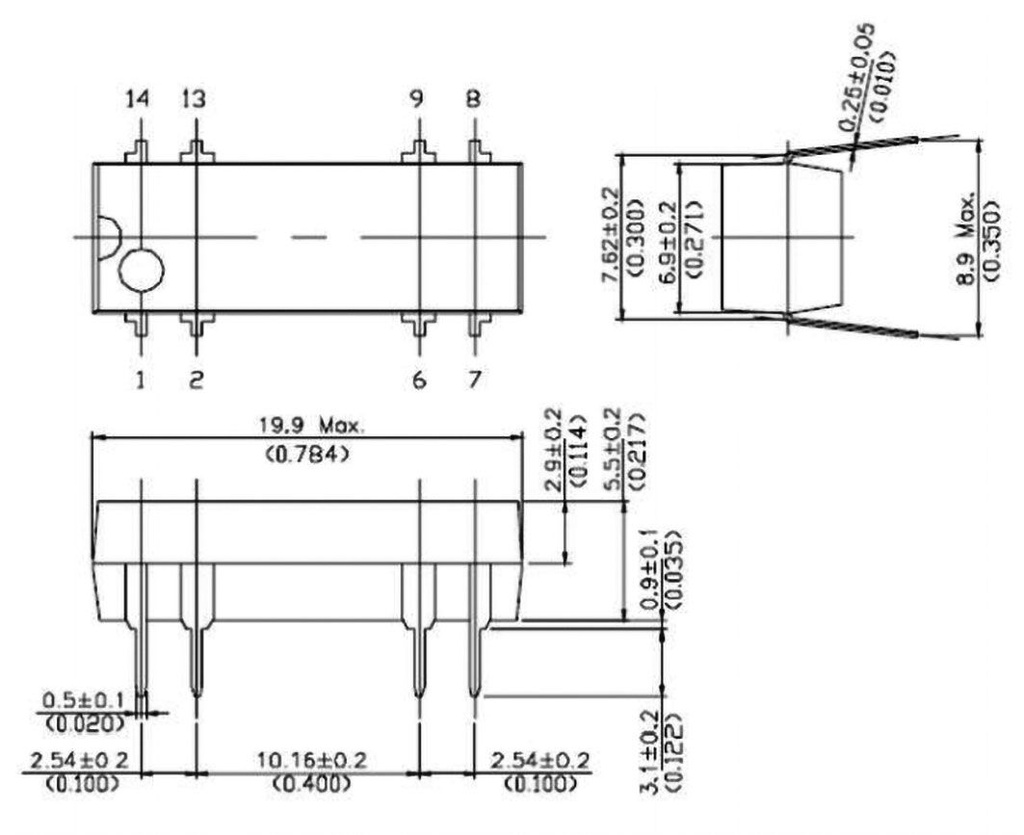

    Body dimensions 19.9x7.62x5.5mm
    Switched voltage ≤ 100V DC
    Switching capacity 10W
    Coil resistance 1kΩ
    Rated coil voltage 12V DC

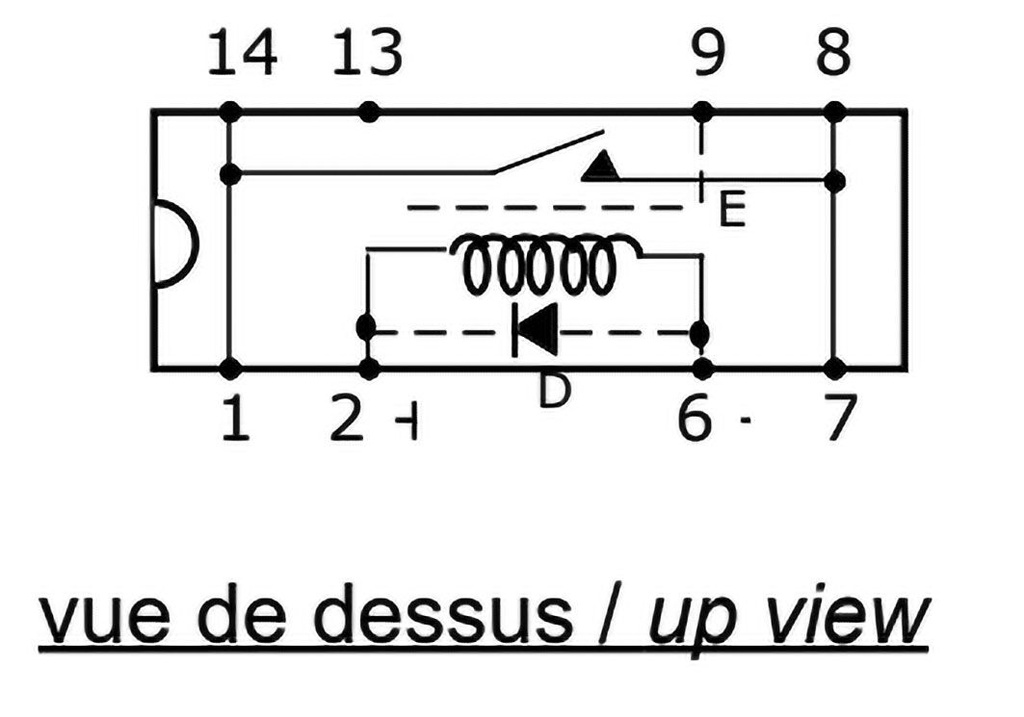

    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Contact current max. 1A
    Coil voltage max. 20V DC
    Type of relay reed
    Coil voltage min. 9V DC
