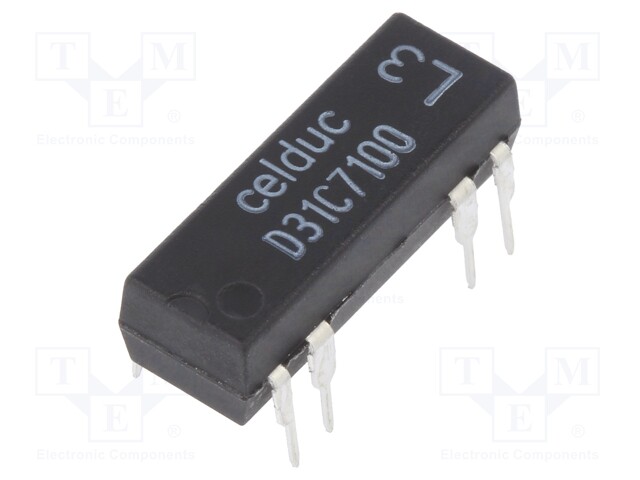

Relay: reed; SPDT; Ucoil: 24VDC; 500mA; max.100VDC; 3W; Rcoil: 2150Ω

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: D31C7100
    Tootja: CELDUC
    Tootja tootekood: D31C7100
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPDT; Ucoil: 24VDC; 500mA; max.100VDC; 3W; Rcoil: 2150Ω

    Mounting PCB
    Case DIP14
    Operating temperature -40...70°C
    Terminal pitch 2.54mm
    Body dimensions 19.9x7.62x5.5mm
    Switched voltage ≤ 100V DC
    Switching capacity 3W
    Coil resistance 2.15kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    Contact resistance 150mΩ
    Contact current max. 500mA
    Coil voltage max. 32V DC
    Type of relay reed
    Coil voltage min. 18V DC
