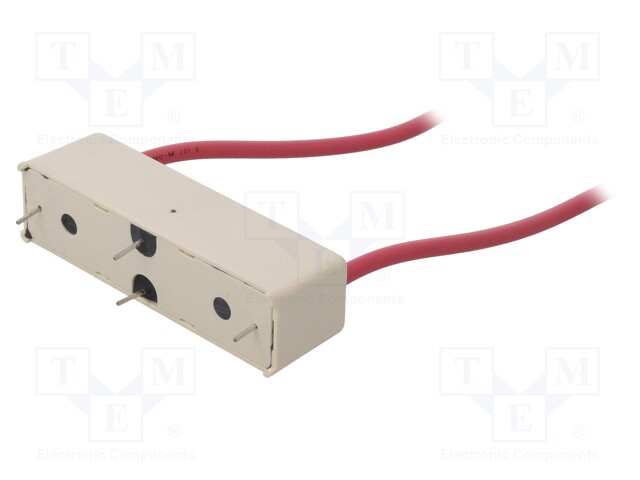

Relay: reed; SPST-NO; Ucoil: 24VDC; 2A; max.7kVDC; max.7kVAC; 50W

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: DAT72415F
    Tootja:
    Tootja tootekood: DAT72415F
    • Mounting
    • Operating temperature
    • Leads
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Min. insulation resistance
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time

    89,73 € 89,73 € (KM-TA) 89.73 EUR

    89,73 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 24VDC; 2A; max.7kVDC; max.7kVAC; 50W

    Mounting PCB
    Operating temperature -20...70°C
    Leads cables
    Body dimensions 60x18.5x15.8mm
    Switched voltage ≤ 7kV AC, ≤ 7kV DC
    Min. insulation resistance 10GΩ
    Switching capacity 50W
    Coil resistance 780Ω
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    Contact resistance 250mΩ
    Contact current max. 2A
    Type of relay reed
    Coil power consumption 30mW
    Operate time 3ms
    Release time 2ms
