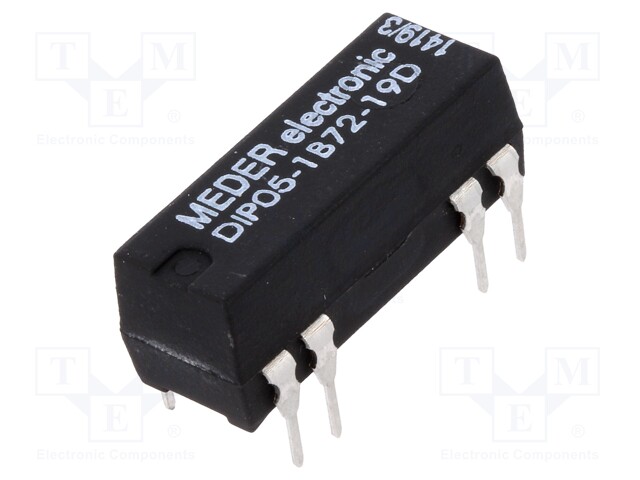

Relay: reed; SPST-NC; Ucoil: 5VDC; 1A; max.200VDC; max.200VAC; 50mW

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: DIP05-1B72-19D
    Tootja: MEDER
    Tootja tootekood: DIP05-1B72-19D
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Soldering temperature
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    9,08 € 9,08 € (KM-TA) 9.08 EUR

    9,08 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPST-NC; Ucoil: 5VDC; 1A; max.200VDC; max.200VAC; 50mW

    Mounting PCB
    Case DIP14
    Operating temperature -20...70°C
    Terminal pitch 2.54mm
    Soldering temperature 260°C
    Body dimensions 19.3x7.5x7mm
    Switched voltage ≤ 200V AC, ≤ 200V DC
    Coil resistance 500Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NC
    Contact resistance 150mΩ
    Contact current max. 1A
    Coil voltage max. 7.5V DC
    Type of relay reed
    Coil voltage min. 3.5V DC
    Coil power consumption 50mW
