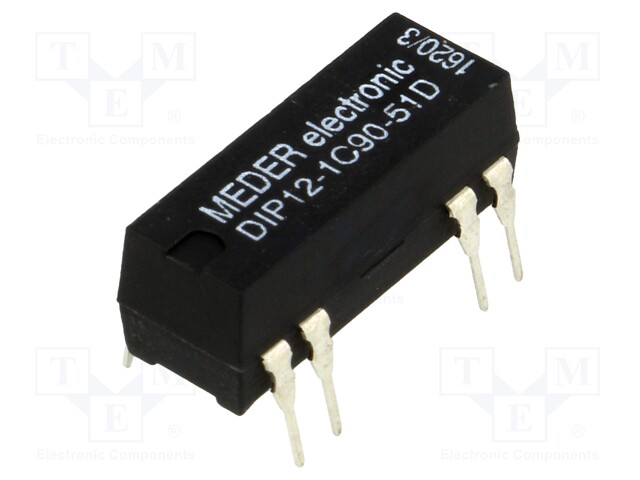

Relay: reed; SPDT; Ucoil: 12VDC; 0.5A; max.100VDC; max.100VAC; 290mW

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: DIP12-1C90-51D
    Tootja: MEDER
    Tootja tootekood: DIP12-1C90-51D
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Soldering temperature
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    10,01 € 10,01 € (KM-TA) 10.01 EUR

    10,01 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: reed; SPDT; Ucoil: 12VDC; 0.5A; max.100VDC; max.100VAC; 290mW

    Mounting PCB
    Case DIP14
    Operating temperature -20...70°C
    Terminal pitch 2.54mm
    Soldering temperature 260°C
    Body dimensions 19.3x7.5x7mm
    Switched voltage ≤ 100V AC, ≤ 100V DC
    Coil resistance 500Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    Contact resistance 150mΩ
    Contact current max. 500mA
    Coil voltage max. 16V DC
    Type of relay reed
    Coil voltage min. 8.4V DC
    Coil power consumption 290mW
