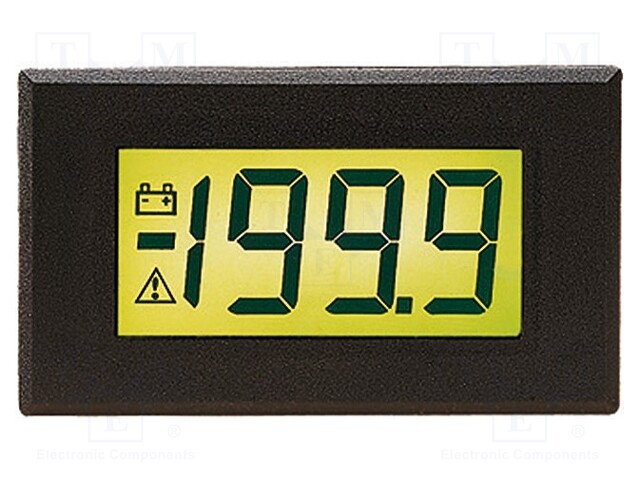

Panel; LCD 3,5 digit 19mm,with a backlit; VDC: 0÷200mV
Kordarv:
1.0
Minimum quantity:
1.0
Sertifikaadid:
Product downloads
Spetsifikatsioon tootele Panel; LCD 3,5 digit 19mm,with a backlit; VDC: 0÷200mV
| Mounting | on panel |
| Mechanical mounting | bezel and fastening holders screwed to meter's enclosure |
| Mounting hole diameter | 71.5x39mm |
| Kind of display used | LCD |
| Supply current | 150µA |
| Digit height | 19mm |
| Illumination voltage | 5V |
| Measuring instrument features | . symbol (activated by jumper setting), 1 overflow indicator (activated by jumper setting), automatic polarization selection, autozeroing, IDC connector, low battery indicator (activated by jumper setting), measures voltage in relation to ground of internal supply source, #NAZWA? |
| Standard equipment | 16pin IDC female plug with cable holder, 4x screw, screwed on bezel with window pan, mounting holder x2 |
| Type of meter | voltmeter |
| Measurement | DC voltage |
| Sampling | 3x/s |
| Kind of meter | digital, mounting |
| Dimensions (W x H x D) | 76x44x13.5mm |
