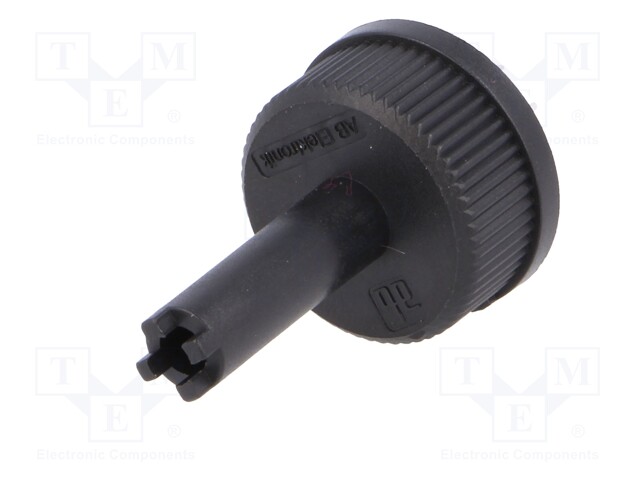

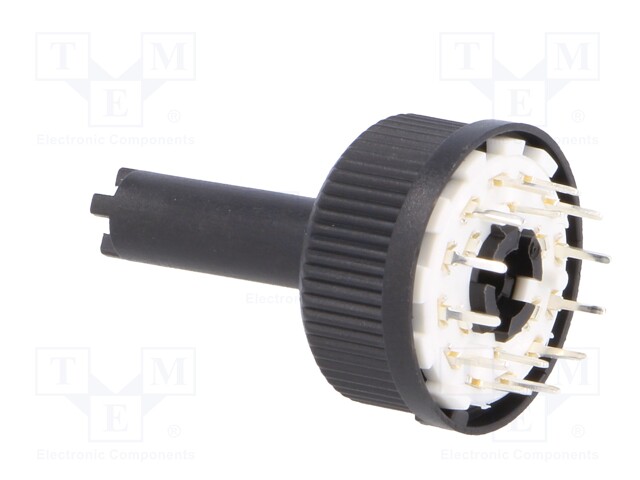

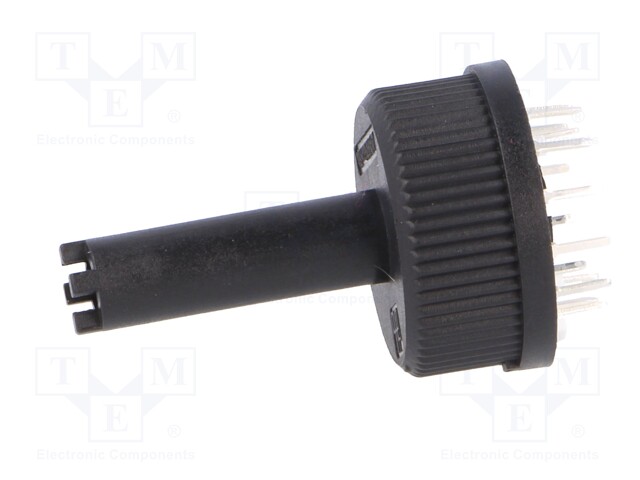

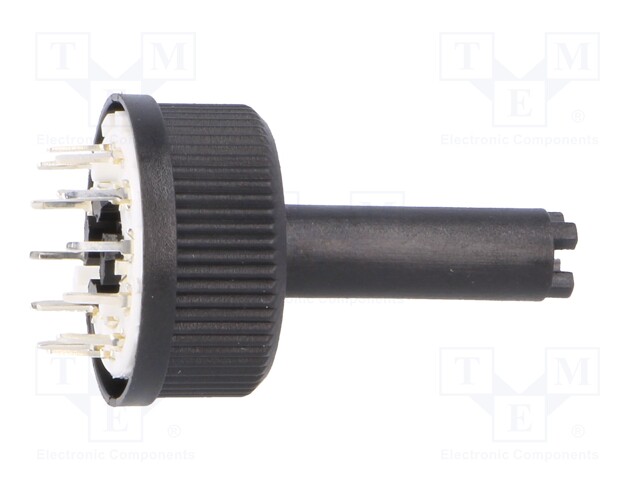

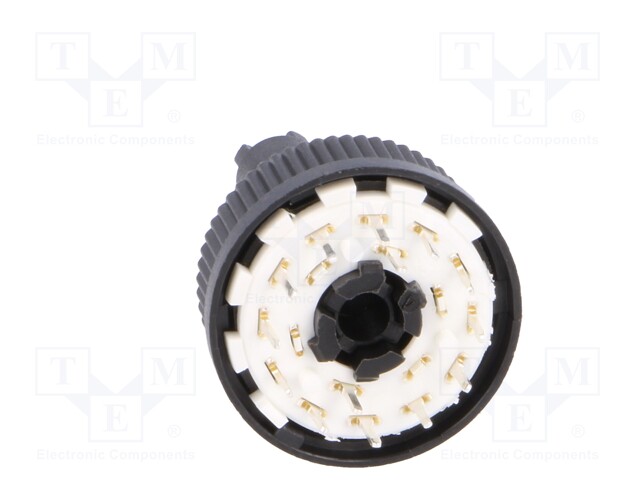

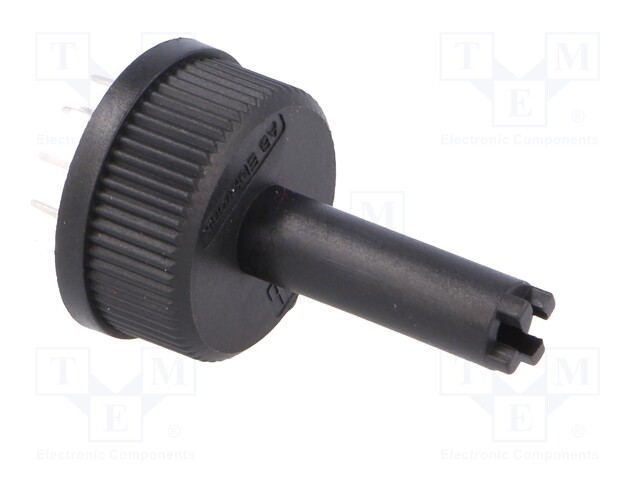

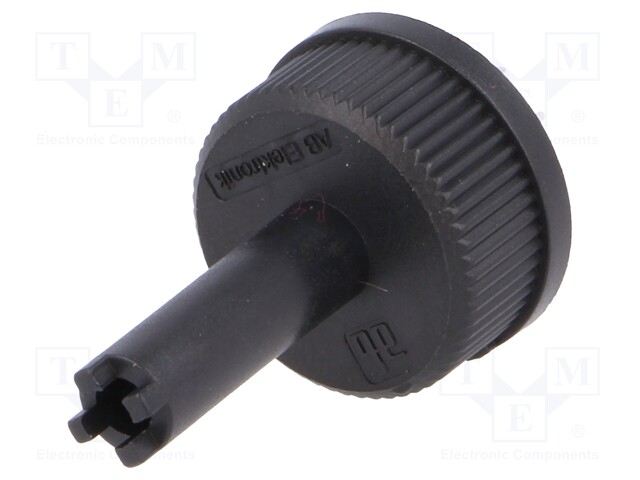

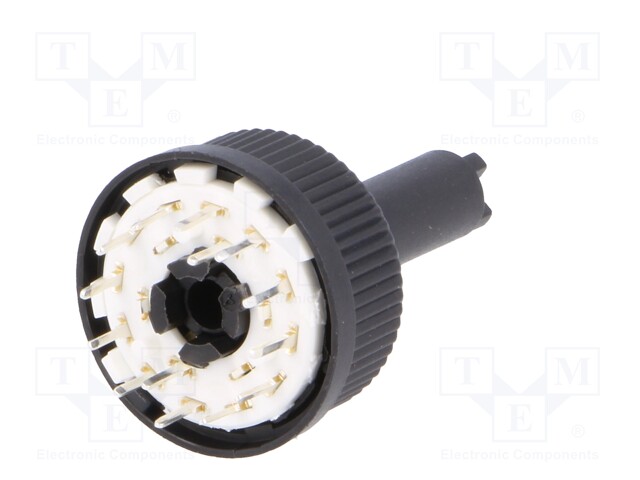

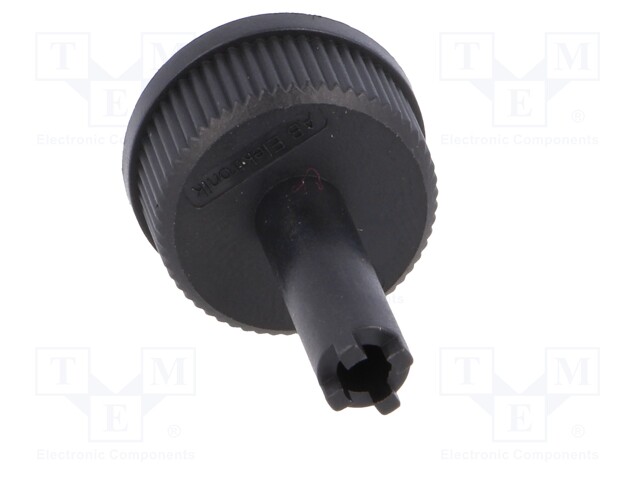

Switch: rotary; Pos: 6; 0.13A/150VAC; 0.13A/150VDC; Poles number: 2

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: DRM2X6
    Tootja: AB Elektronik
    Tootja tootekood:
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance
    • Body dimensions
    • Diameter
    • Mechanical durability
    • Min. insulation resistance
    • Shaft length
    • Shaft diameter
    • Shaft surface
    • Poles number
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Switching torque
    • Indexed positions

    9,12 € 9,12 € (KM-TA) 9.120000000000001 EUR

    9,12 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: rotary; Pos: 6; 0.13A/150VAC; 0.13A/150VDC; Poles number: 2

    Operating temperature -30...85°C
    Type of switch rotary
    Contact plating silver plated
    Number of positions 6
    Leads for PCB
    Contact material brass
    Max. contact resistance 25mΩ

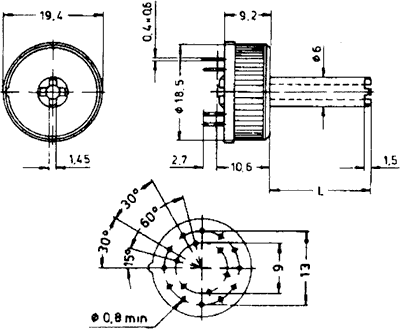

    Body dimensions Ø19.4x9.2mm
    Diameter 19.4mm
    Mechanical durability 15000cycles
    Min. insulation resistance 1TΩ
    Shaft length 20mm
    Shaft diameter 6mm
    Shaft surface smooth
    Poles number 2
    DC contacts rating @R 130mA / 150V DC
    AC contacts rating @R 130mA / 150V AC
    Switching method BBM (non-shorting)
    Stable positions number 6
    Switching torque 5Ncm
    Indexed positions 30°
