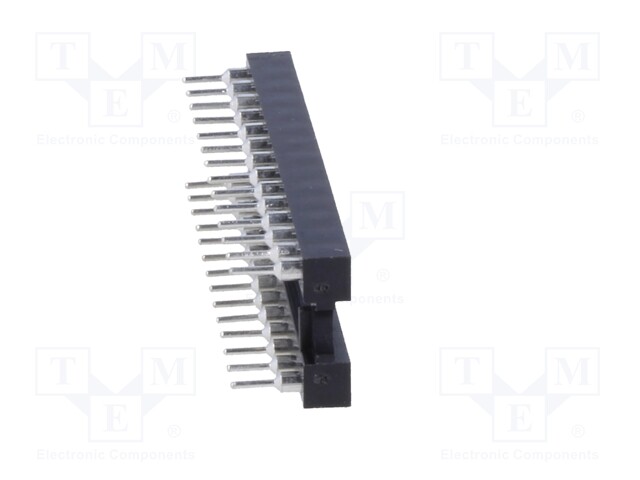

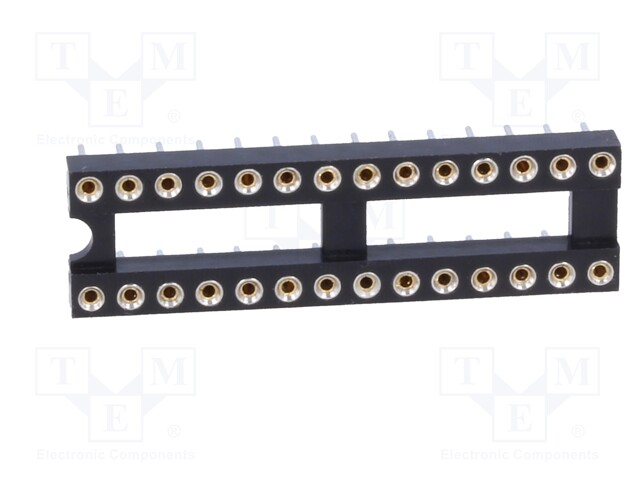

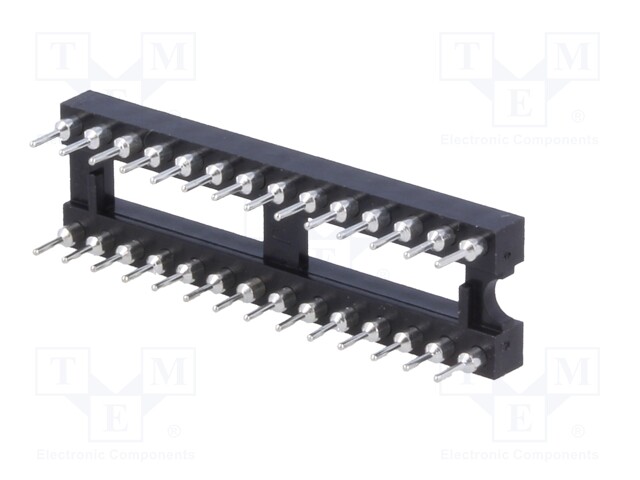

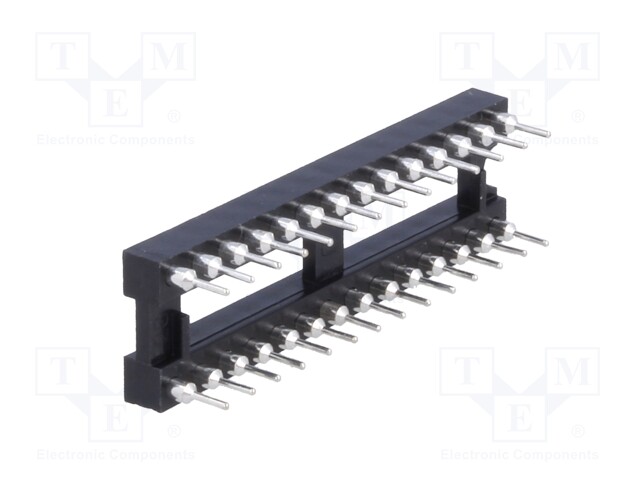

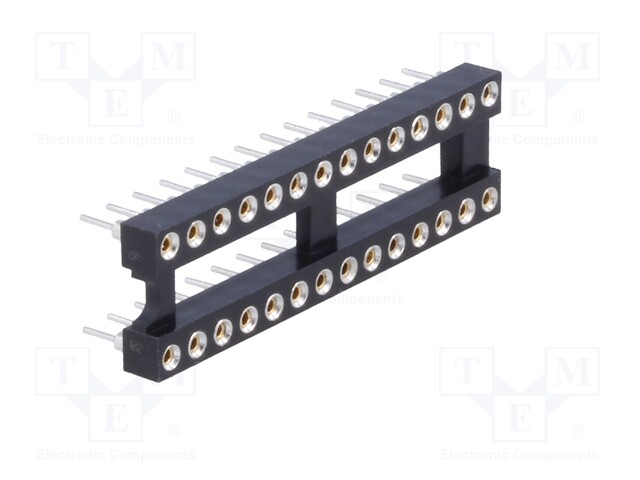

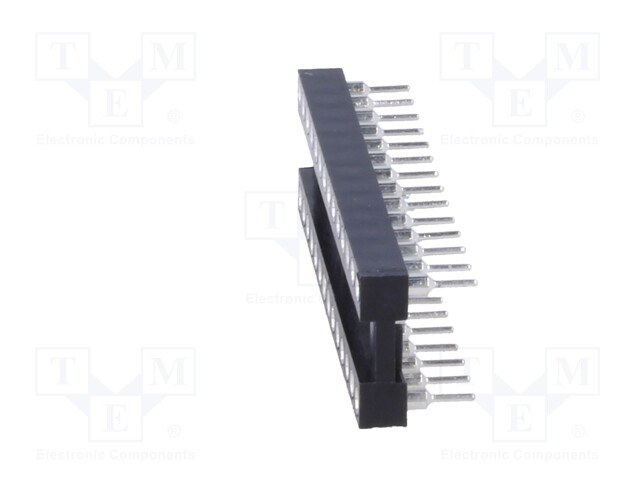

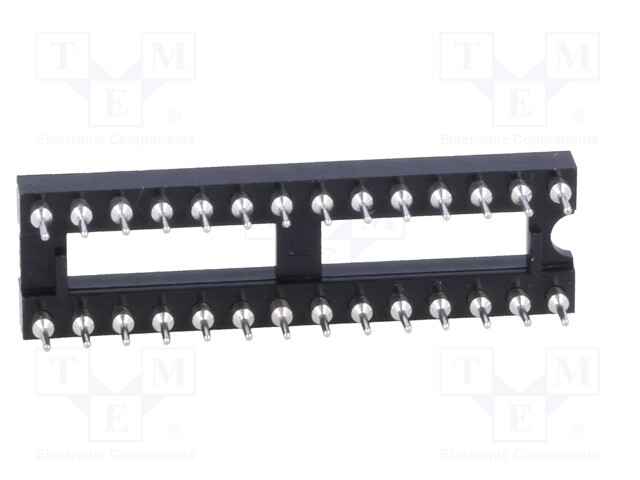

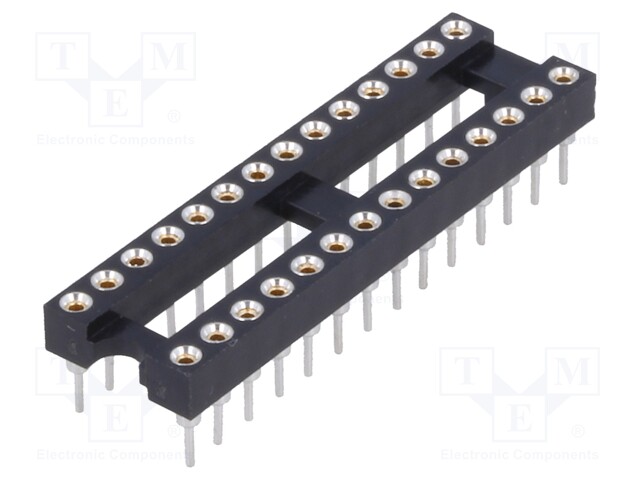

Socket: DIP; PIN: 28; Pitch: 2.54mm; precision; THT; gold-plated

    Kordarv: 1.0
    Minimum quantity: 2.0
    Tootekood: DS1001-01-28BT1NSF6S-JKB
    Tootja: CONNFLY
    Tootja tootekood: DS1001-01-28BT1NSF6S-JKB
    • Operating temperature
    • Electrical mounting
    • Contact plating
    • Row pitch
    • Max. contact resistance
    • Sockets features
    • Sockets features
    • Terminal pitch
    • Body material
    • Flammability rating
    • Pin diameter
    • Maximum current

    1,65 € 1,65 € (KM-TA) 1.6500000000000001 EUR

    1,65 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Socket: DIP; PIN: 28; Pitch: 2.54mm; precision; THT; gold-plated

    Operating temperature -40...105°C
    Electrical mounting THT
    Contact plating gold-plated
    Row pitch 7.62mm
    Max. contact resistance 3mΩ
    Sockets features bushing contacts, round pins
    Terminal pitch 2.54mm
    Body material polyester
    Flammability rating UL94V-0
    Pin diameter 0.51mm
    Maximum current 1A
