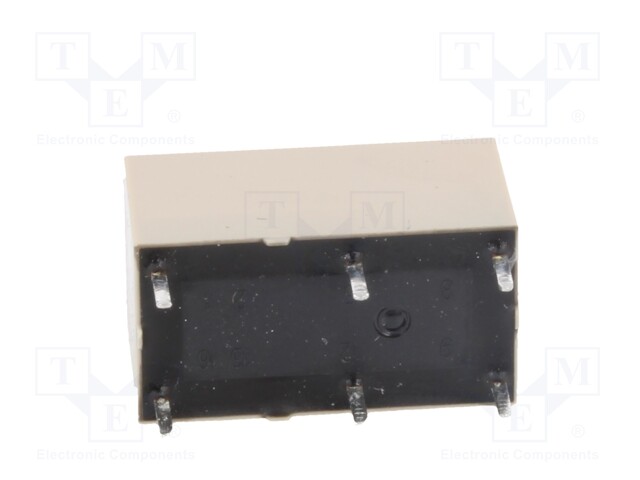

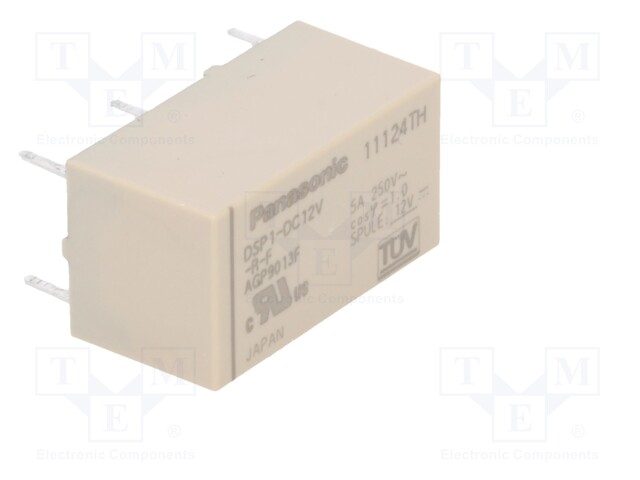

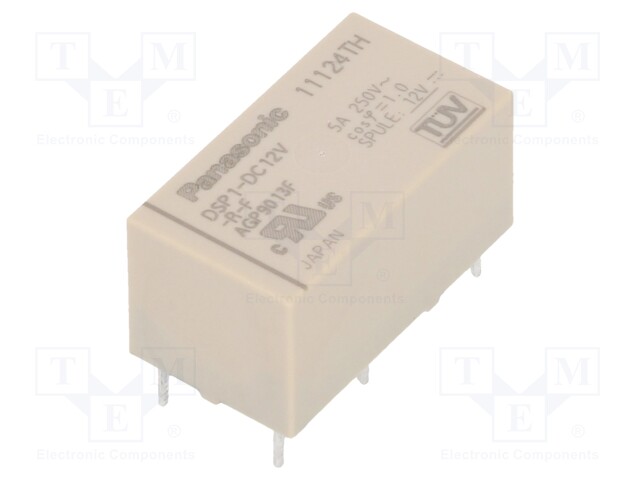

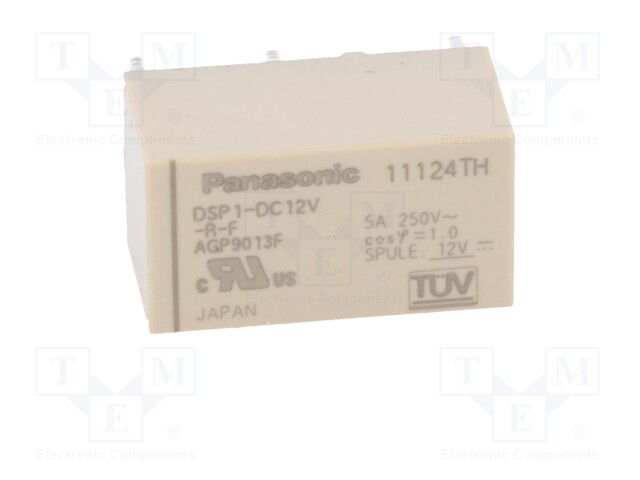

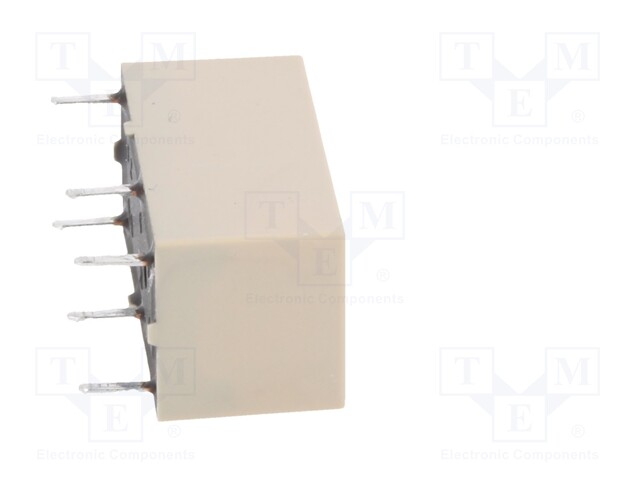

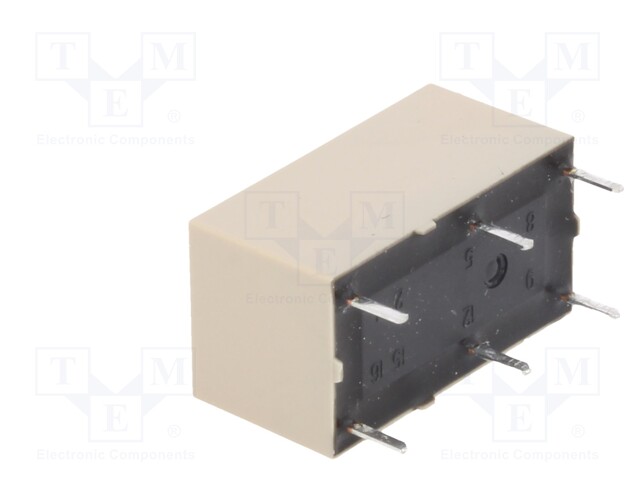

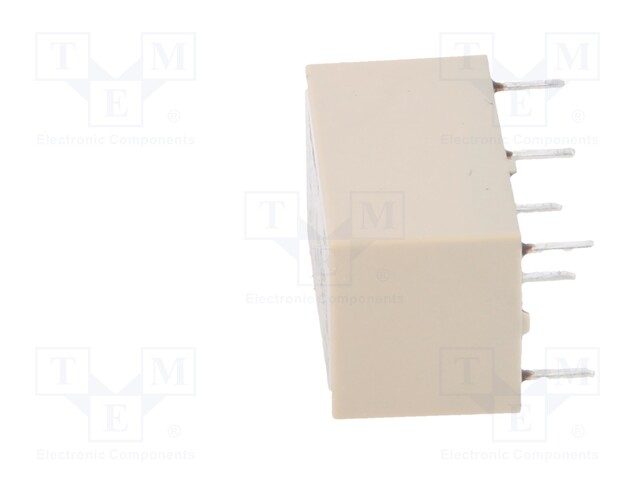

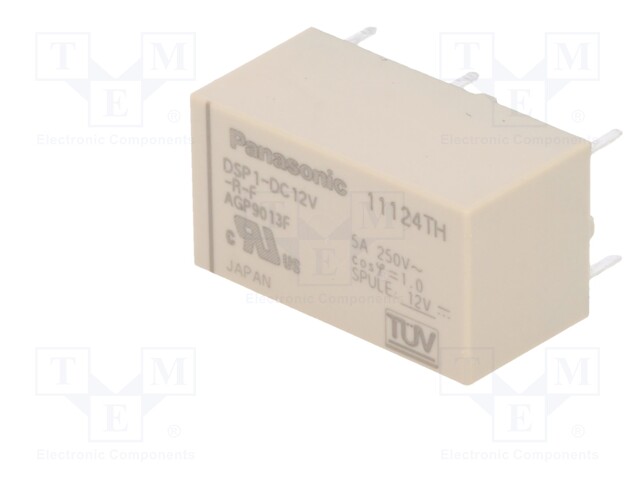

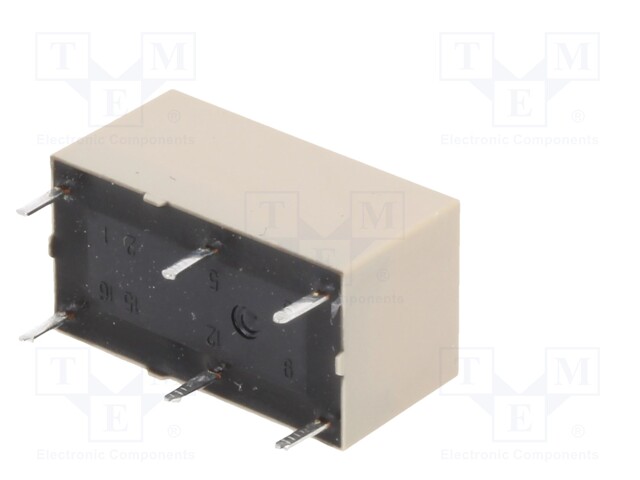

Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 12VDC; 480Ω

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: DSP1-DC12V-R-F
    Tootja: PANASONIC ELECTRIC WORKS
    Tootja tootekood: DSP1-DC12V-R-F
    • Mounting
    • Mounting
    • Operating temperature
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil current

    18,34 € 18,34 € (KM-TA) 18.34 EUR

    18,34 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO + SPST-NC; Ucoil: 12VDC; 480Ω

    Mounting PCB, socket
    Operating temperature -40...65°C
    Contact material AgSnO<sub>2</sub>

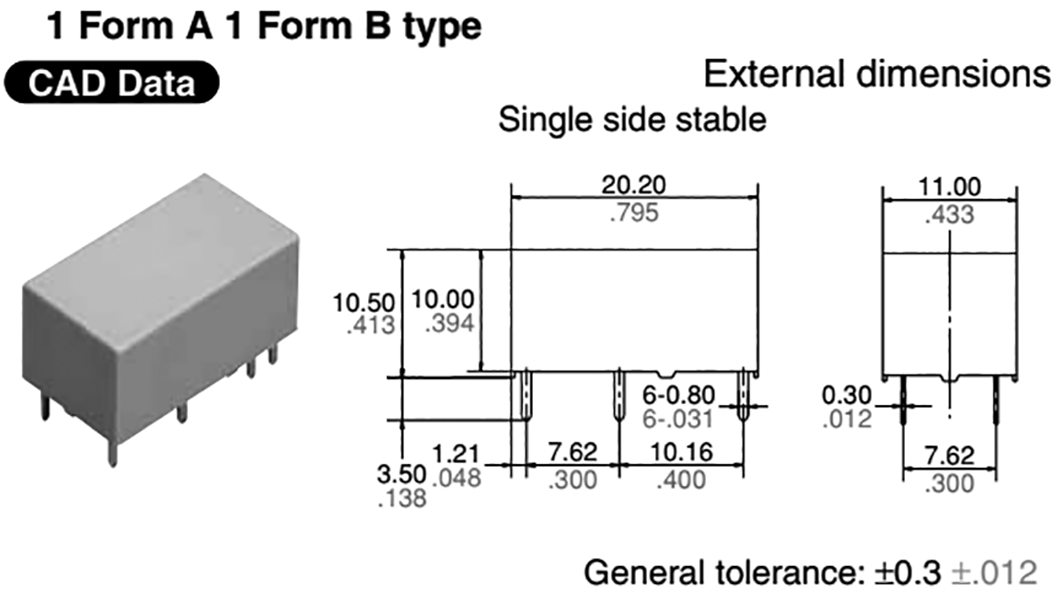

    Body dimensions 20.2x11x10.5mm
    Mechanical durability 50000000cycles
    Switched voltage ≤ 125V DC, ≤ 250V AC
    Coil resistance 480Ω
    Rated coil voltage 12V DC

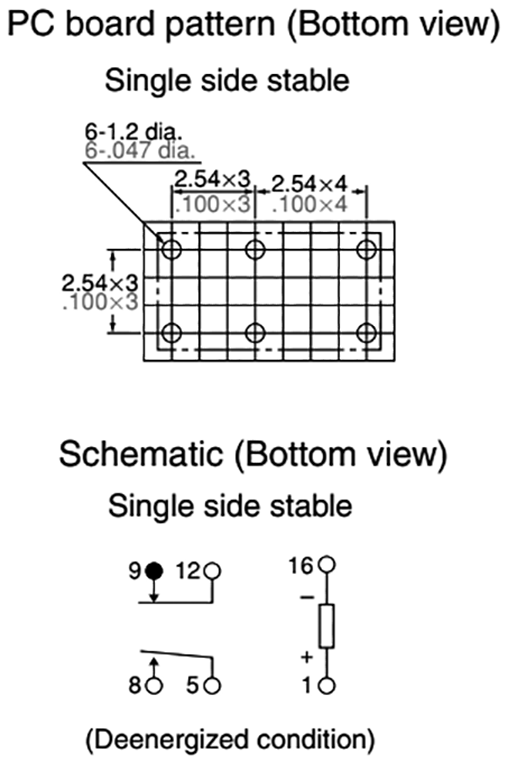

    Contacts configuration SPST-NO + SPST-NC
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 9.6V DC
    Coil power consumption 300mW
    Coil current 25mA
