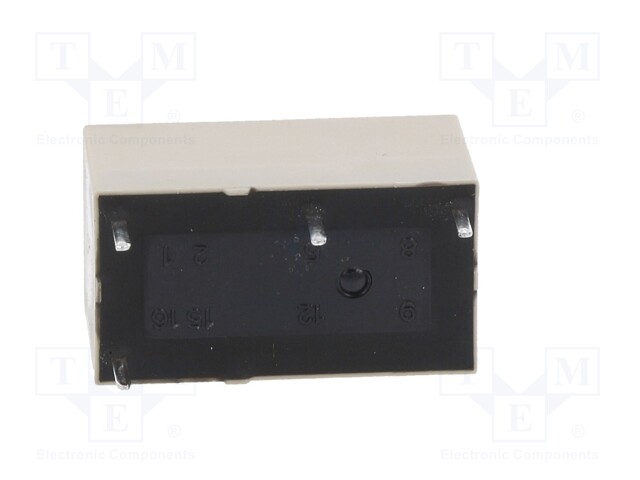

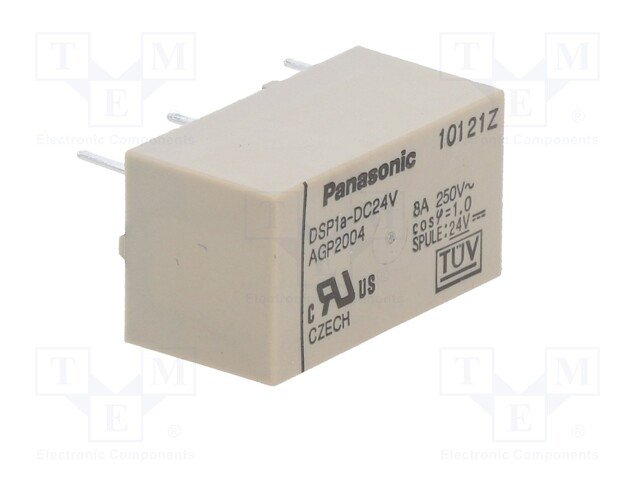

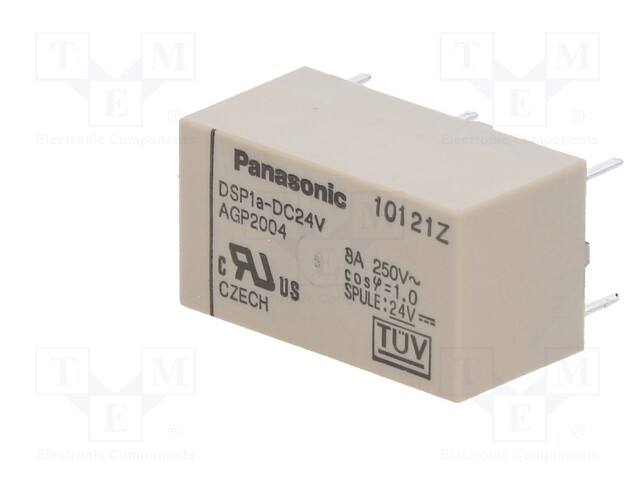

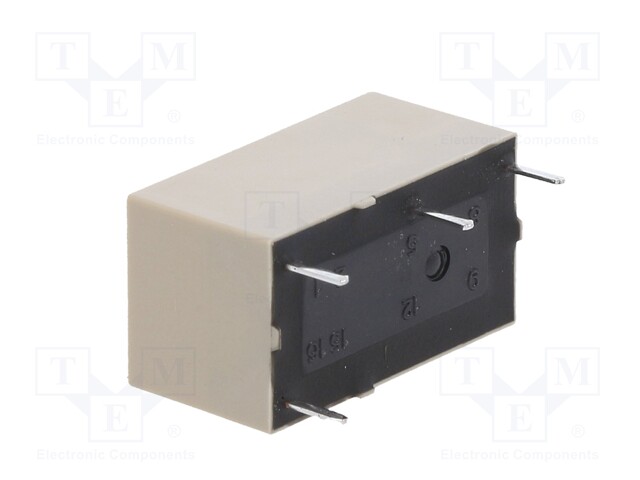

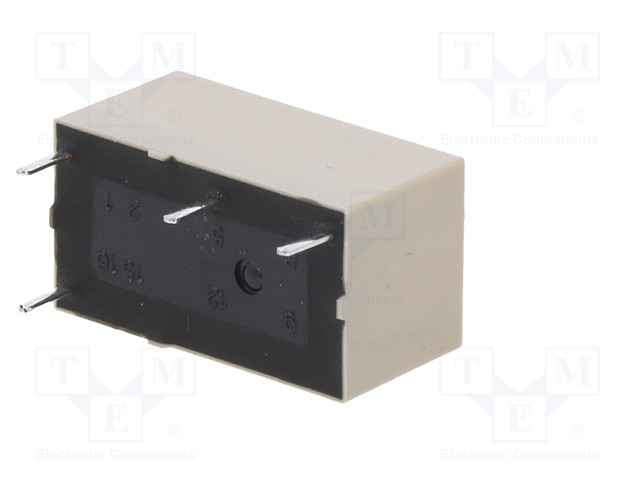

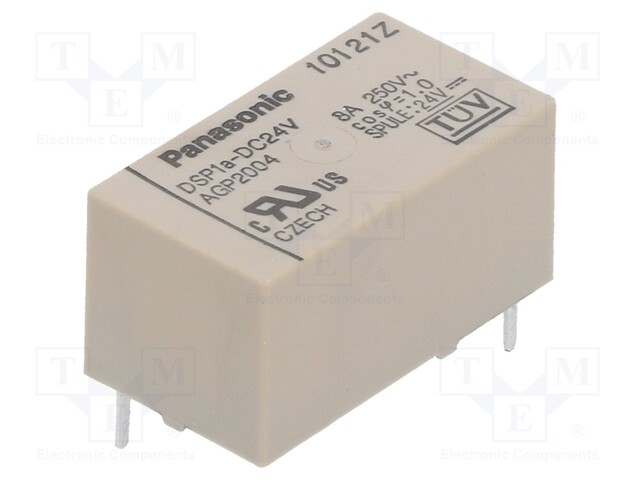

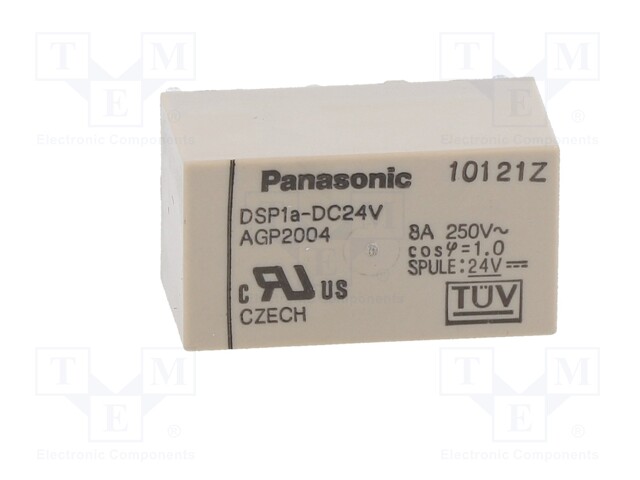

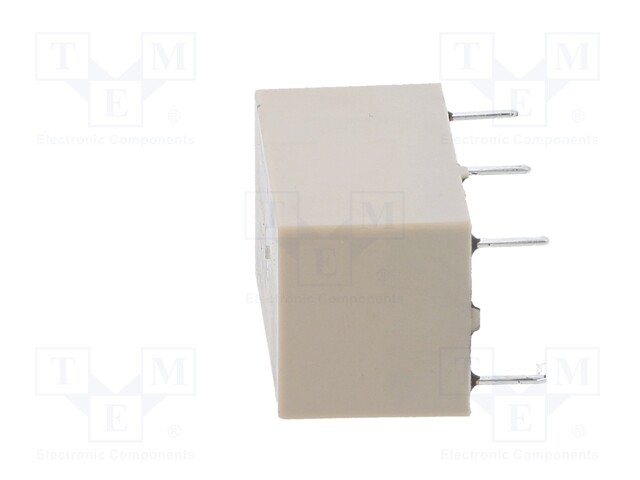

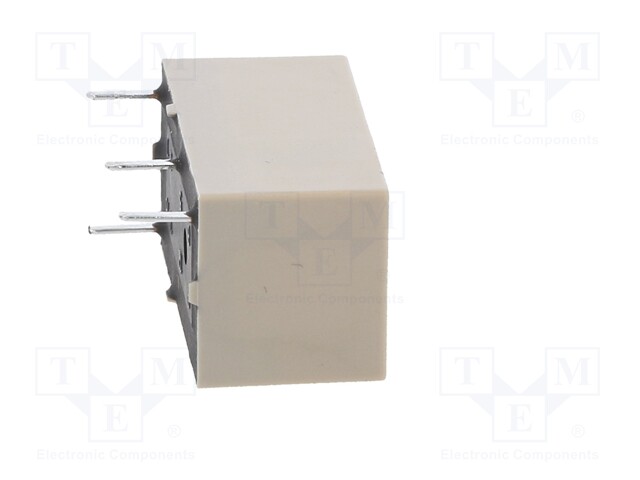

General Purpose Relay, DSP Series, Power, Non Latching, SPST-NO, 24 VDC, 8 A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: DSP1A24D
    Tootja: PANASONIC
    Tootja tootekood: DSP1A24D
    • Mounting
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil current

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele General Purpose Relay, DSP Series, Power, Non Latching, SPST-NO, 24 VDC, 8 A

    Mounting PCB, socket
    Operating temperature -40...85°C
    Contact plating gold-plated
    Contact material AgSnO<sub>2</sub> Au
    Body dimensions 20.2x11x10.5mm
    Switched voltage ≤ 250V AC
    Coil resistance 1.92kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 19.2V DC
    Coil power consumption 300mW
    Coil current 12.5mA
