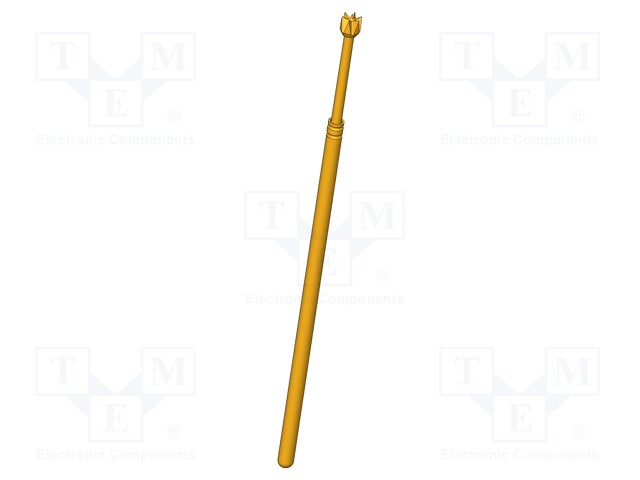

Test needle; Operational spring compression: 4.3mm; 3A; Ø: 1.3mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: E-075 224 130 A 2000
    Tootja: INGUN
    Tootja tootekood: E-075 224 130 A 2000
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance
    • Length
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Maksimum spring compression

    5,04 € 5,04 € (KM-TA) 5.04 EUR

    5,04 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Test needle; Operational spring compression: 4.3mm; 3A; Ø: 1.3mm

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material steel
    Max. contact resistance 20mΩ

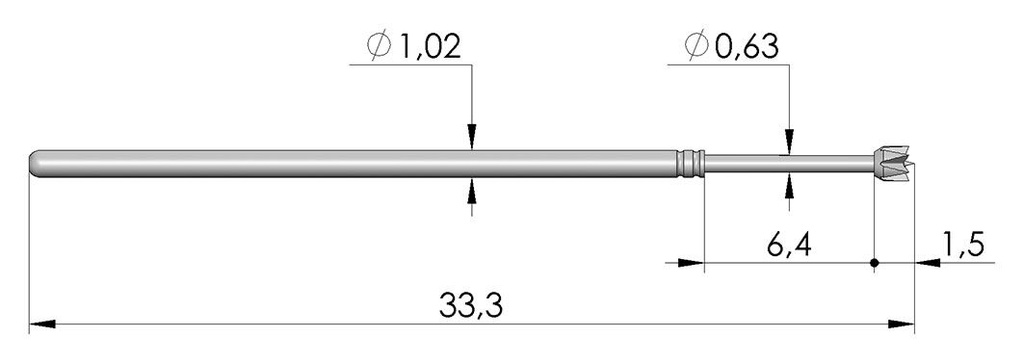

    Length 32.3mm
    Current rating 3A

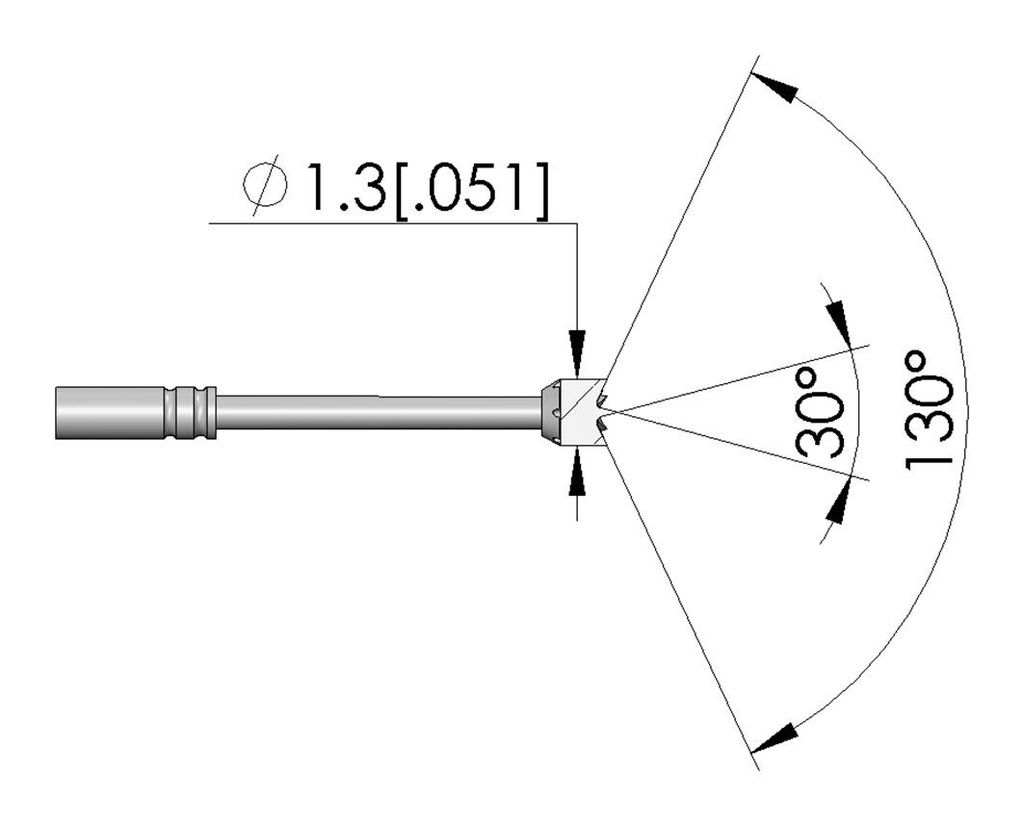

    Tip diameter 1.3mm
    Type of test accessories test probe
    Maksimum spring compression 6.35mm
