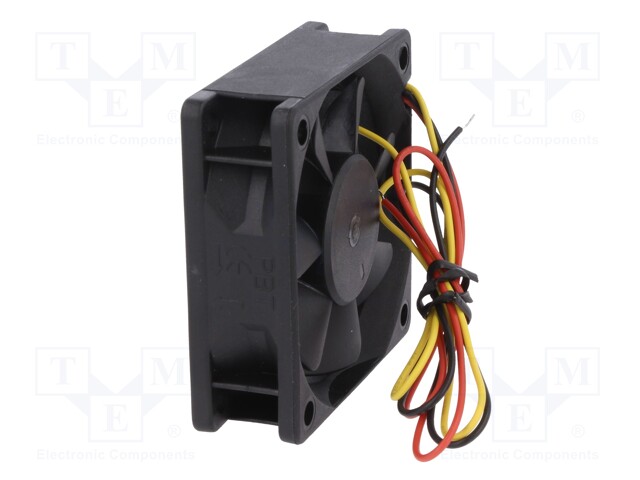

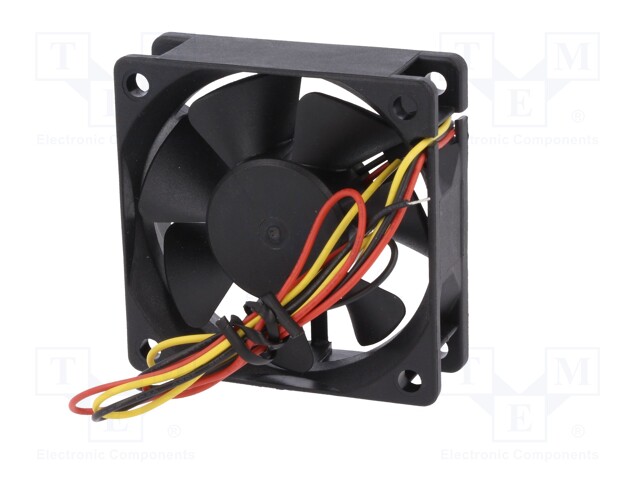

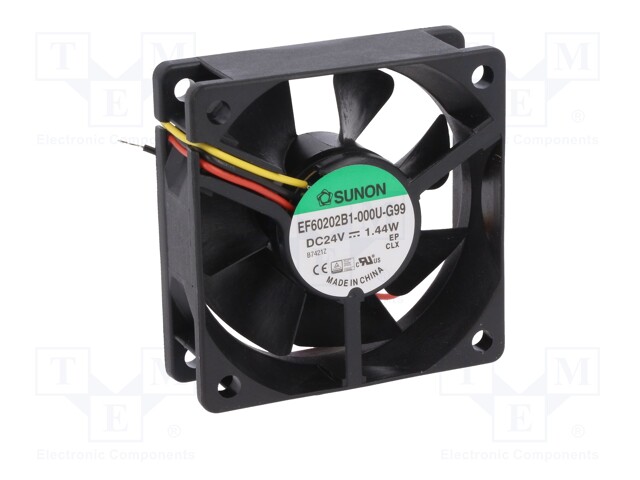

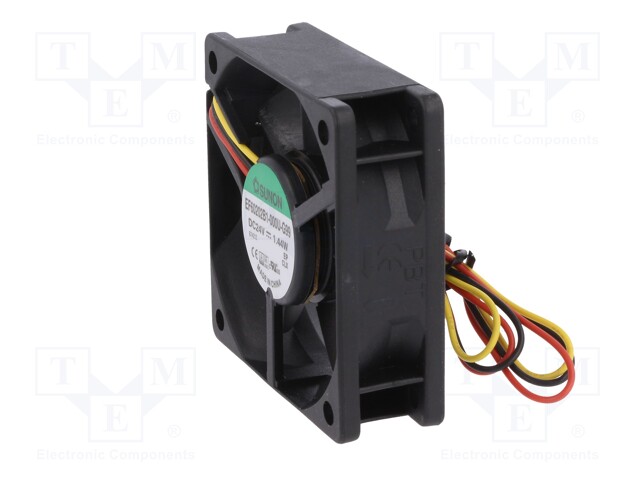

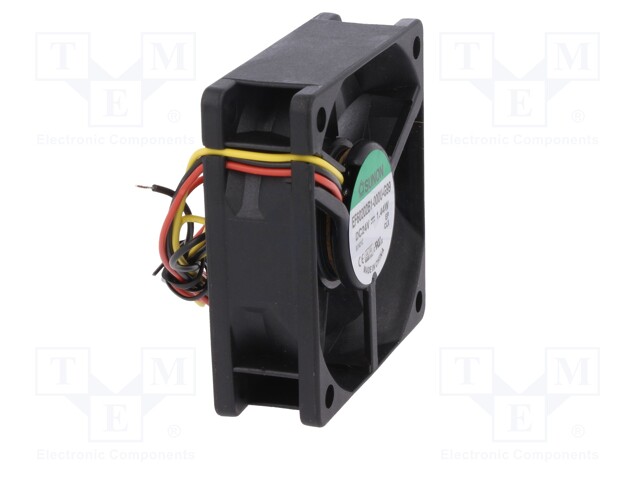

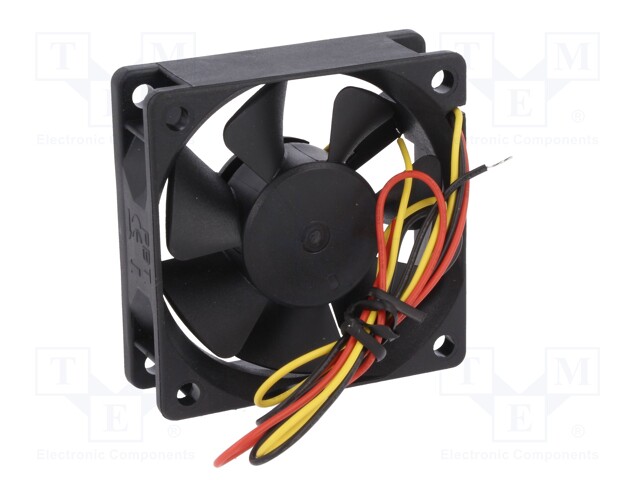

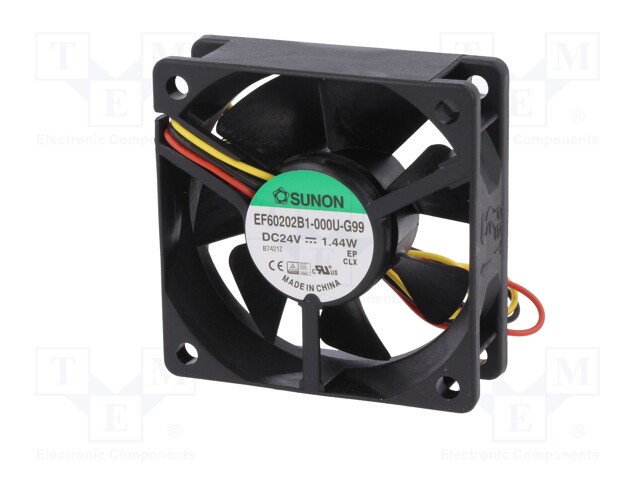

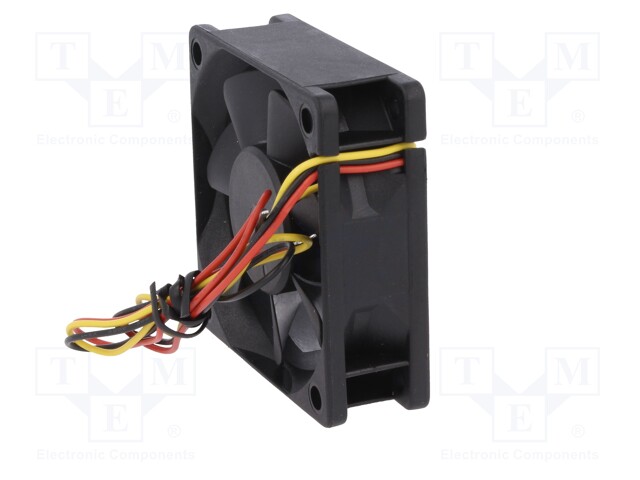

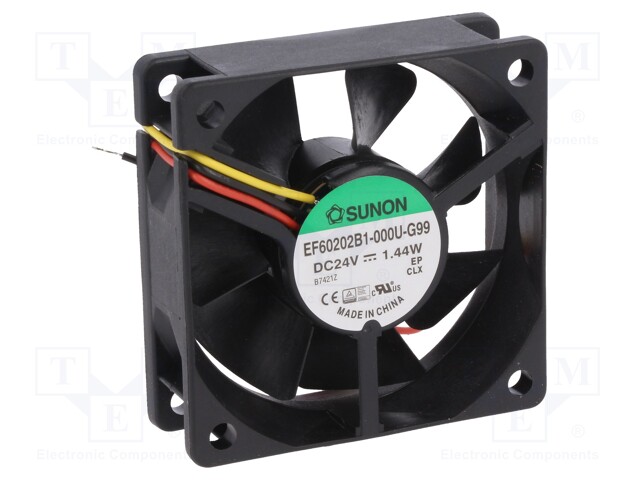

Fan: DC; axial; 24VDC; 60x60x20mm; 39.07m3/h; 34.5dBA; ball bearing

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: EF60202B1-000U-G99
    Tootja: SUNON
    Tootja tootekood: EF60202B1-000U-G99
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Flammability rating
    • Current rating
    • Fan efficiency
    • Power consumption
    • Additional functions
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Insulation class
    • Type of fan
    • Static pressure
    • Noise level
    • Signal output

    11,85 € 11,85 € (KM-TA) 11.85 EUR

    11,85 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Fan: DC; axial; 24VDC; 60x60x20mm; 39.07m3/h; 34.5dBA; ball bearing

    Supply voltage 24V DC
    Operating temperature -10...70°C
    Enclosure material thermoplastic
    Flammability rating UL94V-0
    Current rating 60mA
    Fan efficiency 39.07m<sup>3</sup>/h
    Power consumption 1.44W
    Additional functions Autorestart
    Rotational rate/speed 4500 (±15%)rpm
    Fan motor brushless DC motor
    Fan dimensions 60x60x20mm
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Insulation class A
    Type of fan DC
    Static pressure 4.57mm H<sub>2</sub>O
    Noise level 34.5dBA
    Signal output F type
