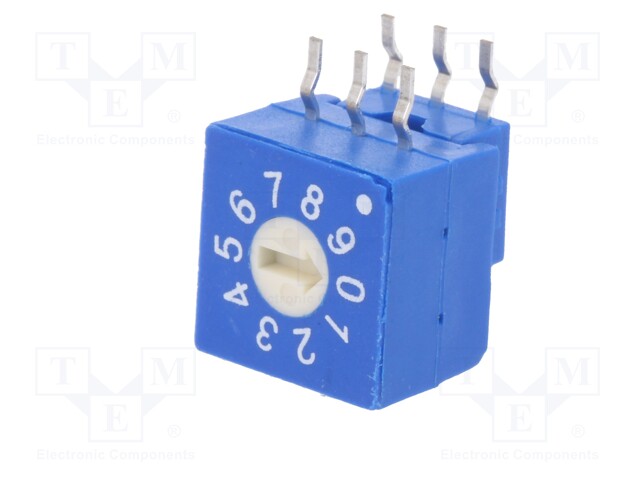

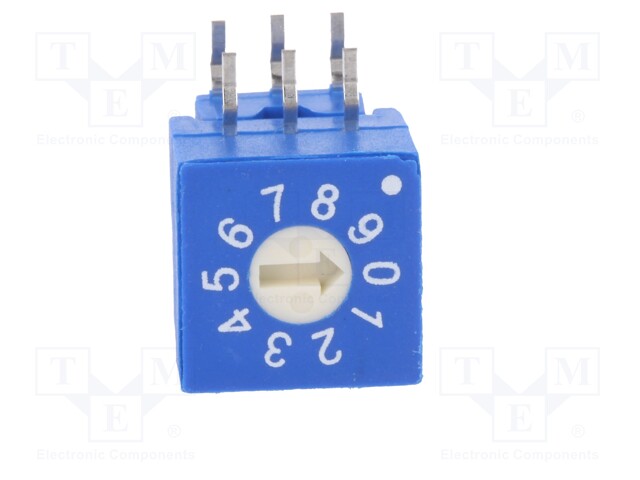

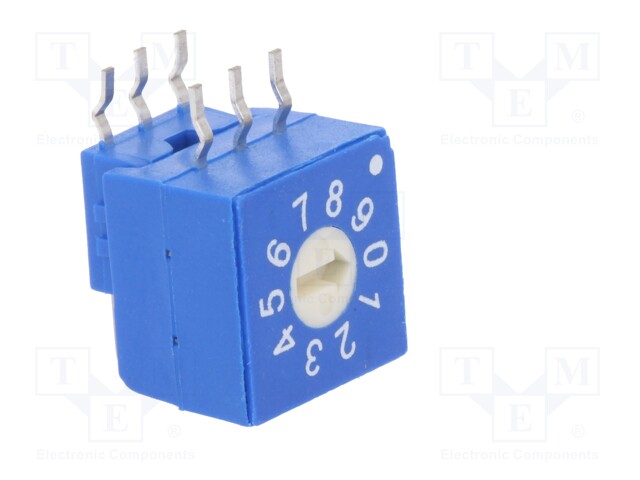

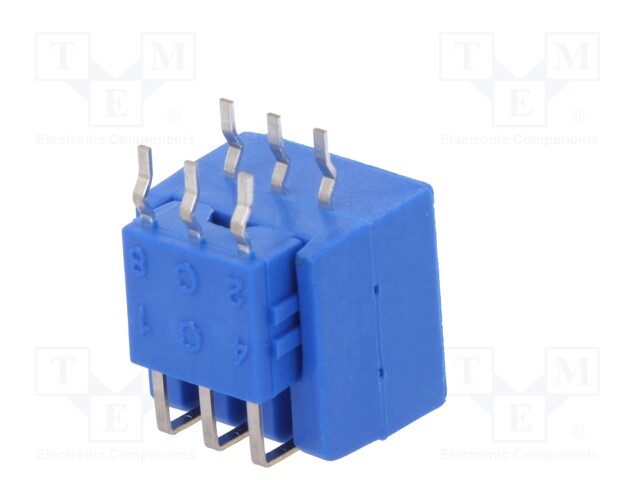

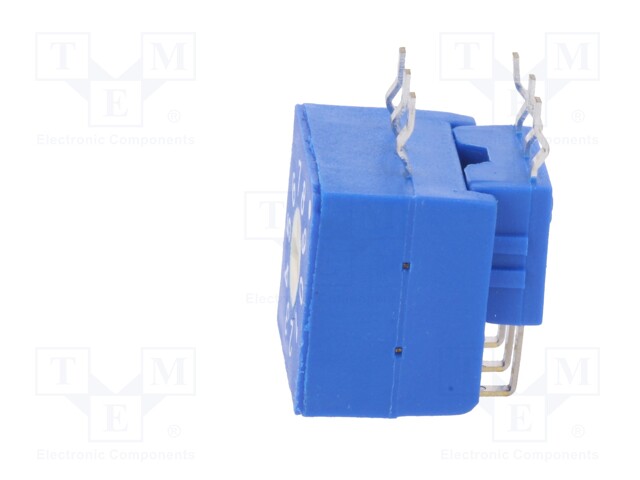

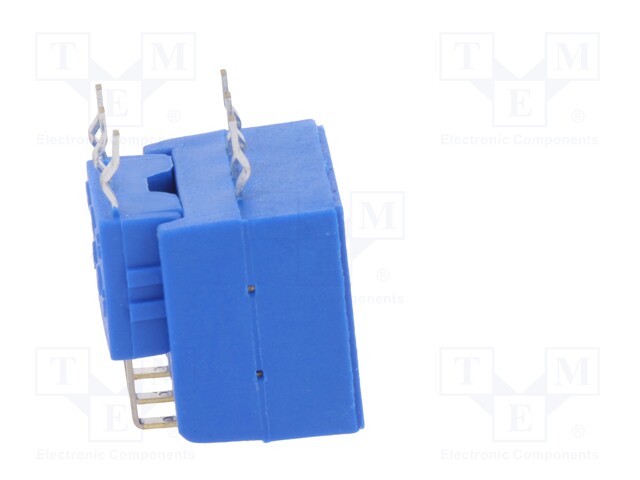

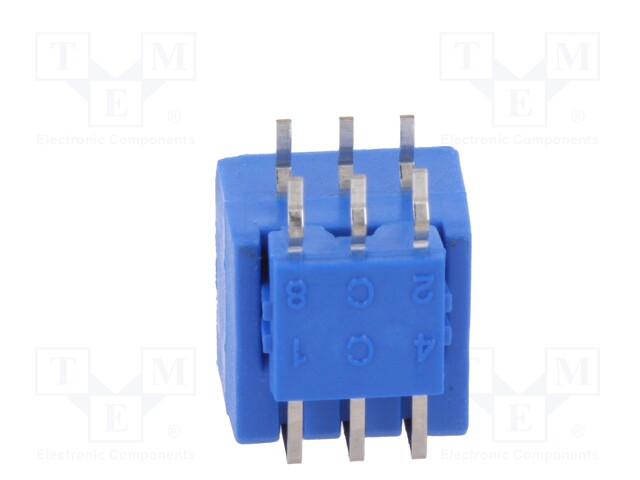

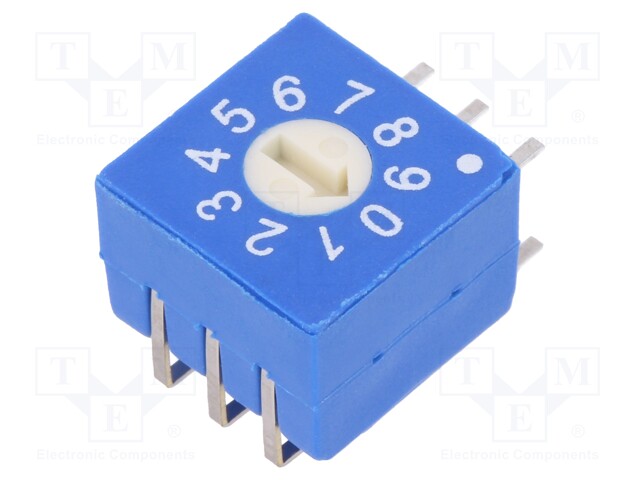

Encoding switch; DEC/BCD; Pos: 10; THT; Rcont max: 100mΩ; 5Ncm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: ERD110RFZ
    Tootja: ECE
    Tootja tootekood: ERD110RFZ
    • Mounting
    • Operating temperature
    • Type of switch
    • Switches features
    • Kind of package
    • Contact plating
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance
    • Terminal pitch
    • Flammability rating
    • Soldering temperature
    • Body dimensions
    • Min. insulation resistance
    • DC contacts rating @R
    • Stable positions number
    • Switching torque
    • Kind of encoding switch

    3,47 € 3,47 € (KM-TA) 3.47 EUR

    3,47 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Encoding switch; DEC/BCD; Pos: 10; THT; Rcont max: 100mΩ; 5Ncm

    Mounting THT
    Operating temperature -40...85°C
    Type of switch encoding switch
    Switches features without knob
    Kind of package tube
    Contact plating gold-plated
    Number of positions 10
    Leads for PCB
    Contact material copper alloy
    Max. contact resistance 100mΩ
    Terminal pitch 2.54mm
    Flammability rating UL94V-0
    Soldering temperature 260°C / 5 s
    Body dimensions 10x10x7.55mm
    Min. insulation resistance 1GΩ
    DC contacts rating @R 100mA / 50V DC
    Stable positions number 10
    Switching torque 5Ncm
    Kind of encoding switch DEC/BCD
