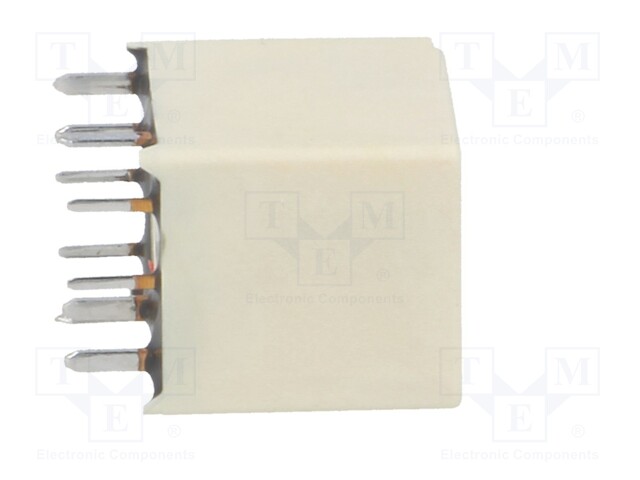

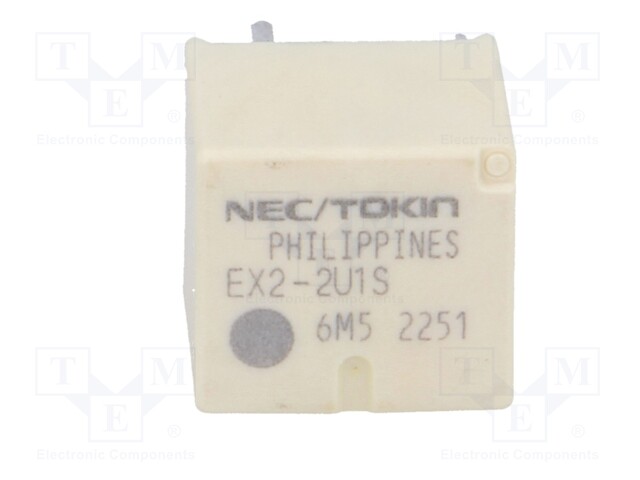

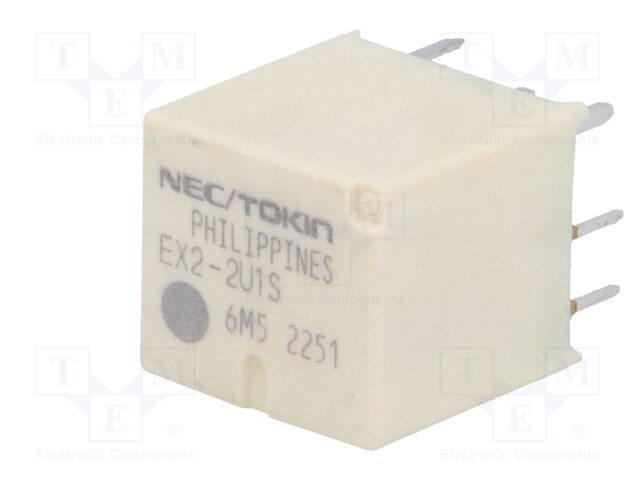

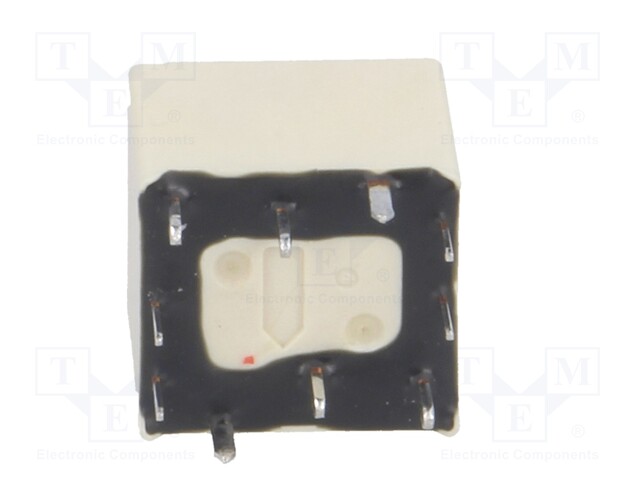

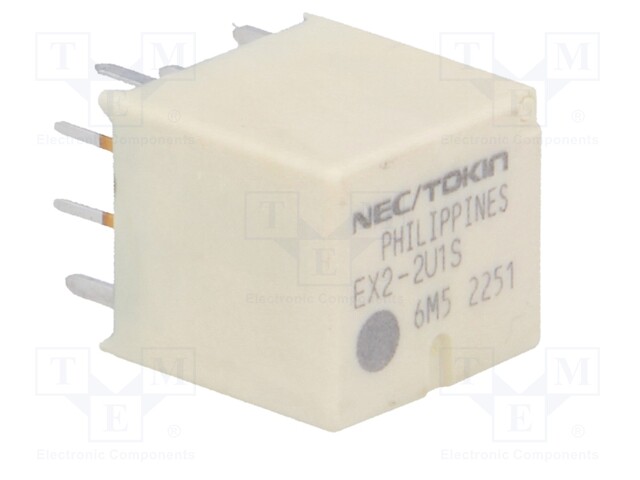

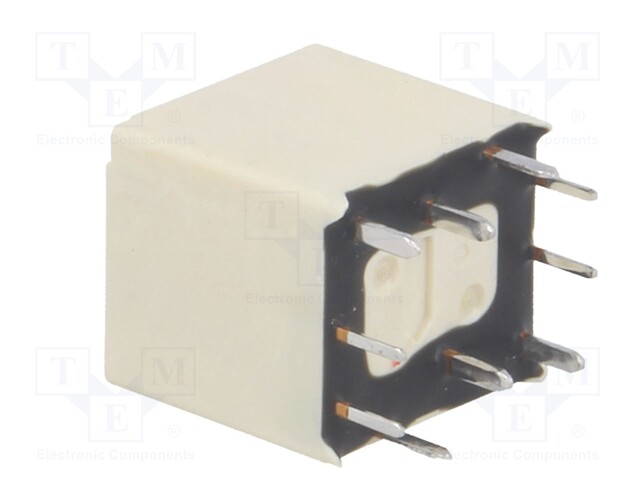

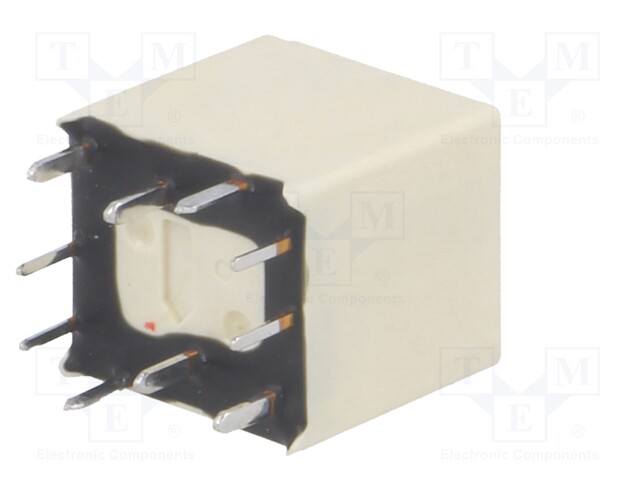

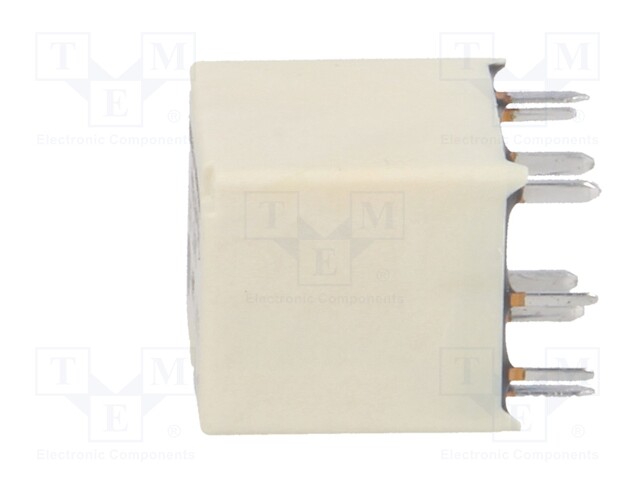

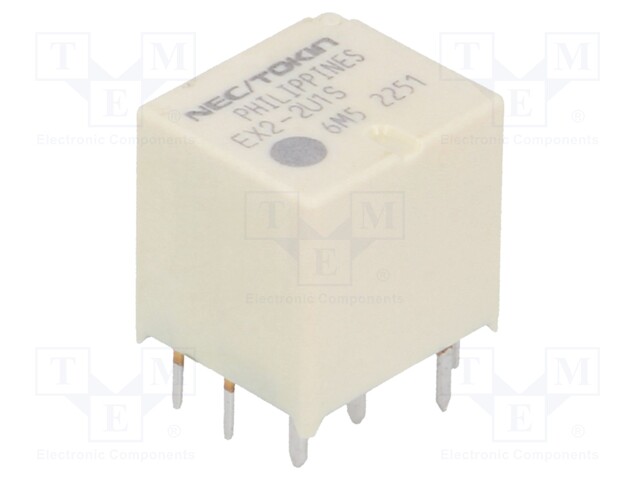

Relay: electromagnetic; SPDT x2; Ucoil: 12VDC; 30A; automotive

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: EX2-2U1(S)
    Tootja: NEC
    Tootja tootekood: EX2-2U1(S)
    • Mounting
    • Operating temperature
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Coil current

    3,47 € 3,47 € (KM-TA) 3.47 EUR

    3,47 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT x2; Ucoil: 12VDC; 30A; automotive

    Mounting PCB
    Operating temperature -40...125°C

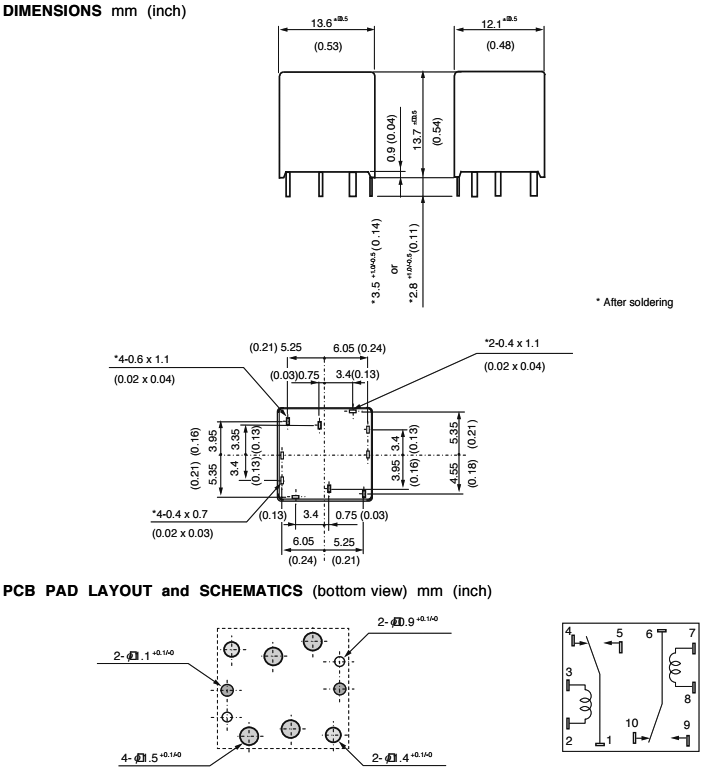

    Body dimensions 13.7x13.6x12.1mm
    Mechanical durability 1000000cycles
    Switched voltage ≤ 16V DC
    Coil resistance 160Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT x2
    Contact current max. 30A
    Relay variant automotive
    Type of relay electromagnetic
    Coil voltage min. 6.5V DC
    Coil power consumption 0.9W
    Coil current 75mA
