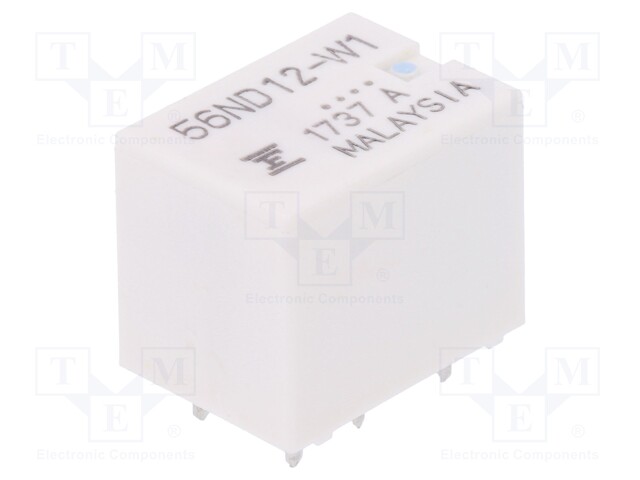

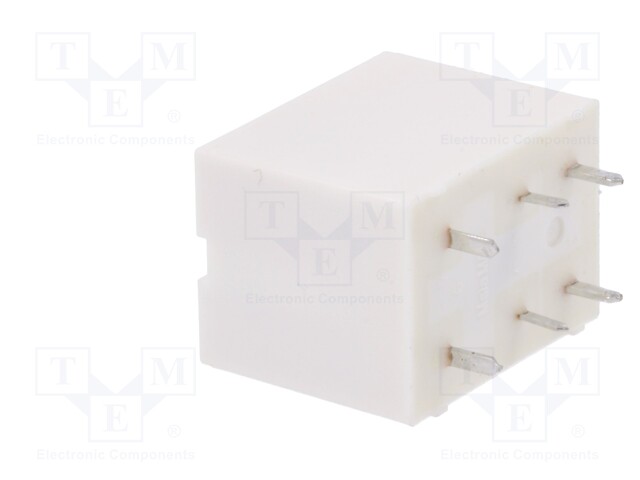

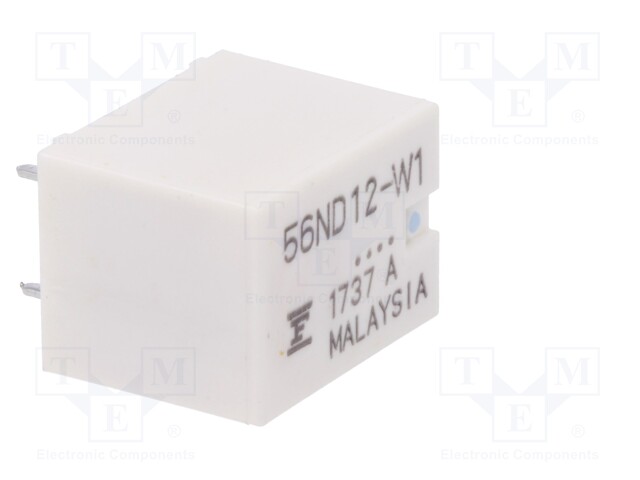

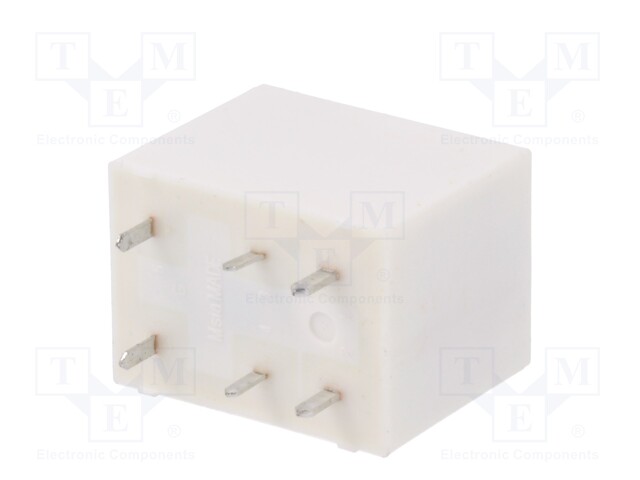

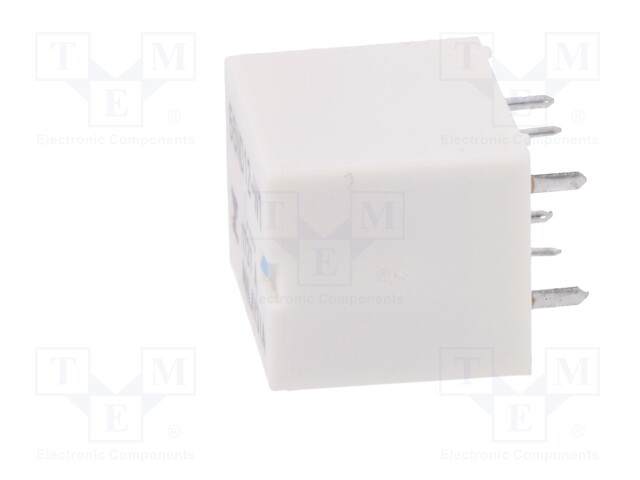

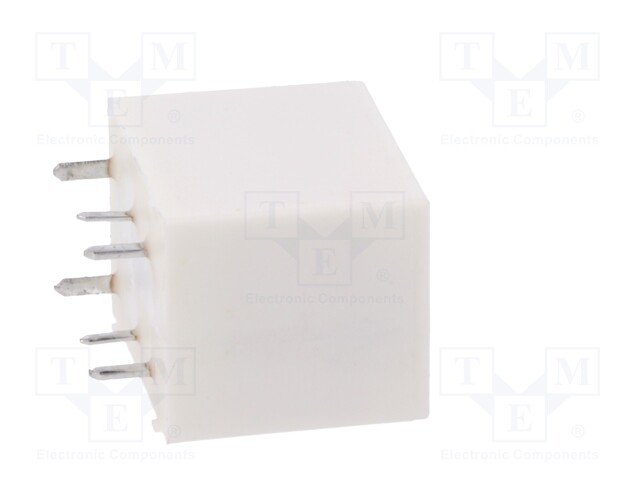

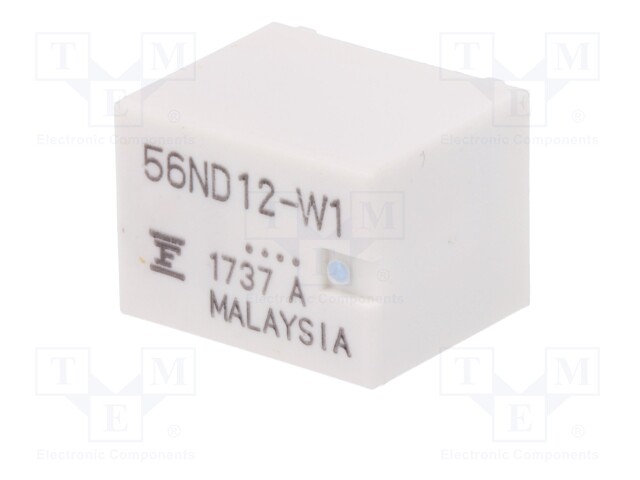

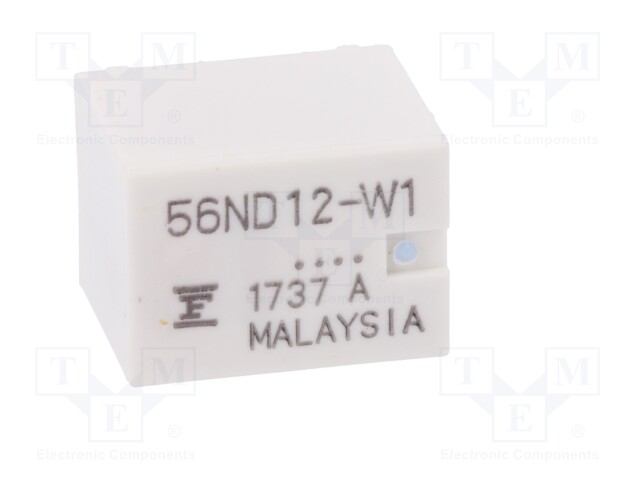

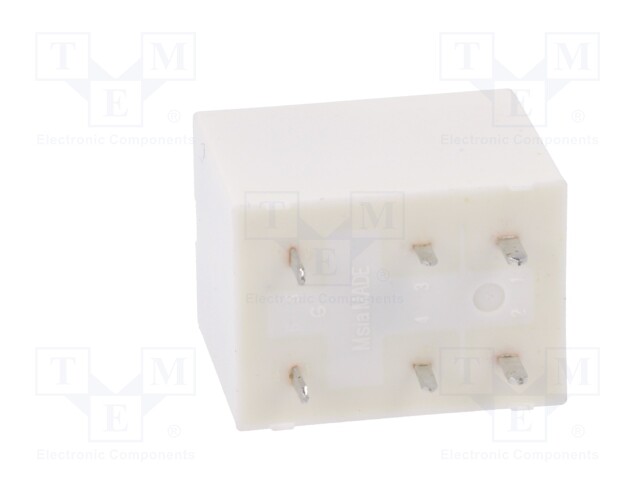

Relay: electromagnetic; SPDT; Ucoil: 12VDC; 30A/14VDC; 40A; 170Ω

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: FBR56ND12-W1
    Tootja: FUJITSU
    Tootja tootekood: FBR56ND12-W1
    • Mounting
    • Operating temperature
    • Contact material
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time

    3,63 € 3,63 € (KM-TA) 3.63 EUR

    3,63 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 12VDC; 30A/14VDC; 40A; 170Ω

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnInO
    Switched voltage ≤ 16V DC
    Coil resistance 170Ω
    Rated coil voltage 12V DC
    Contacts configuration SPDT
    DC contacts rating @R 30A / 14V DC
    Contact current max. 40A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 10ms
    Release time 5ms
