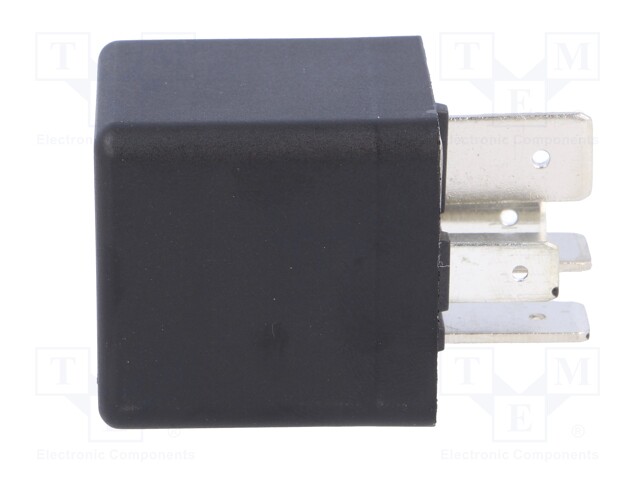

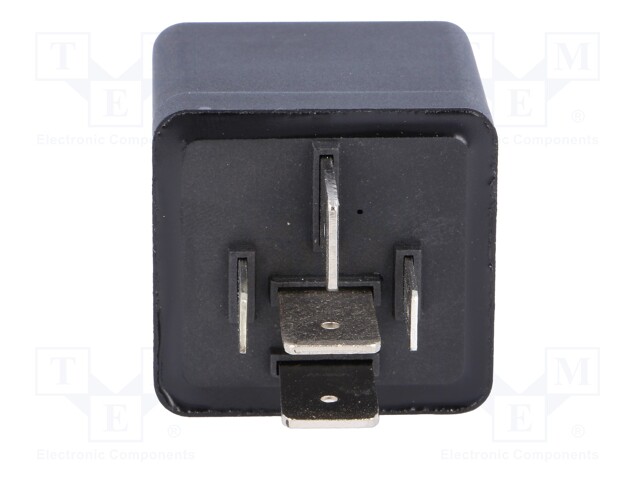

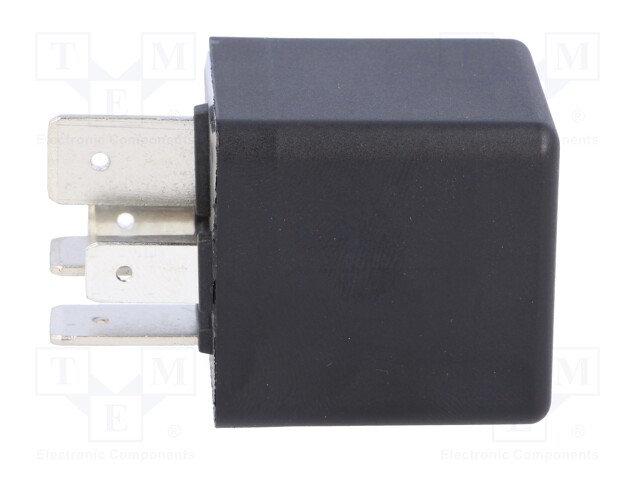

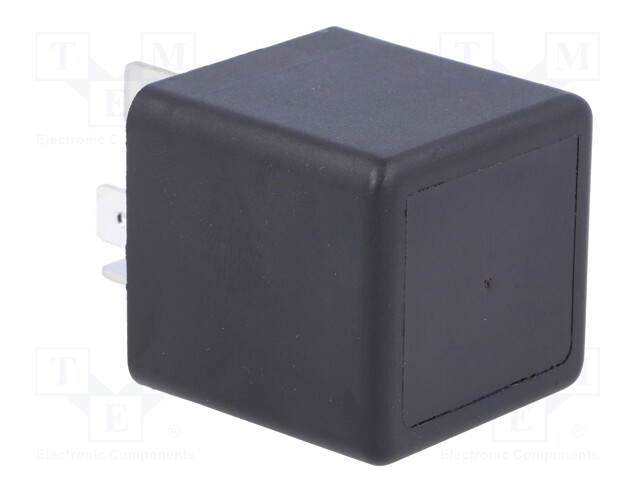

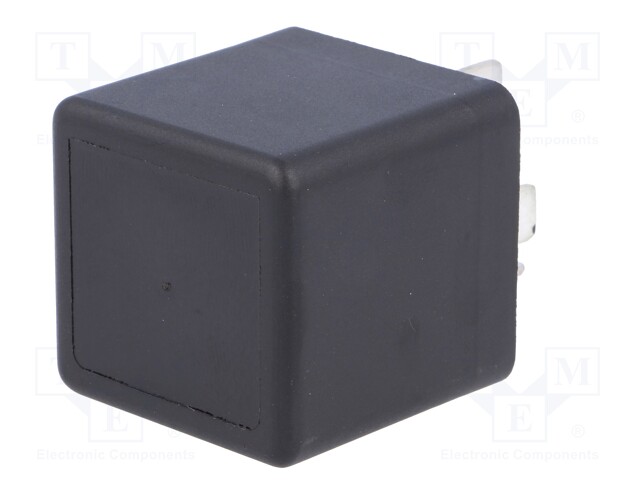

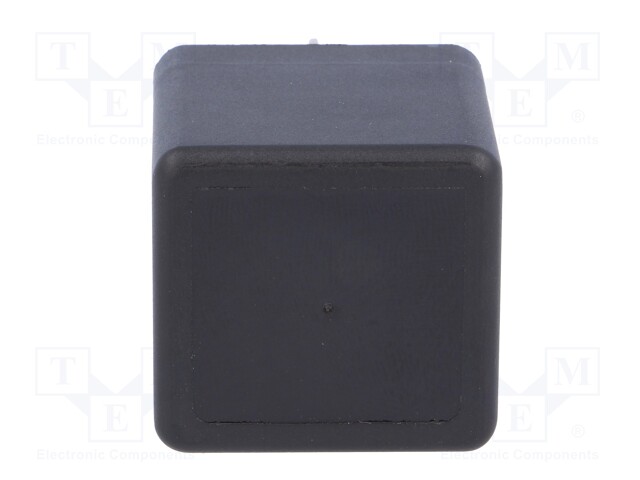

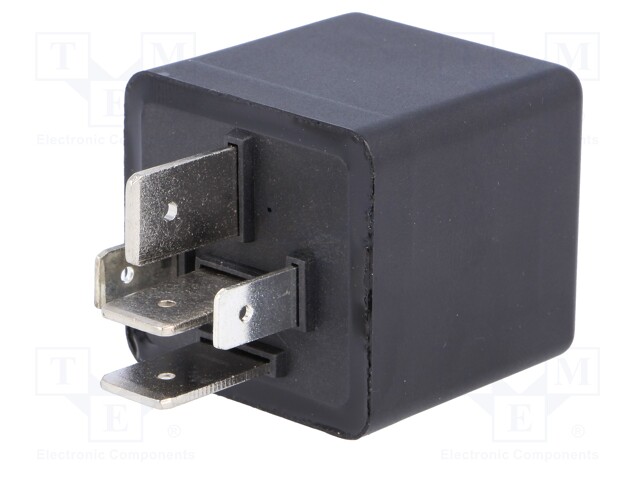

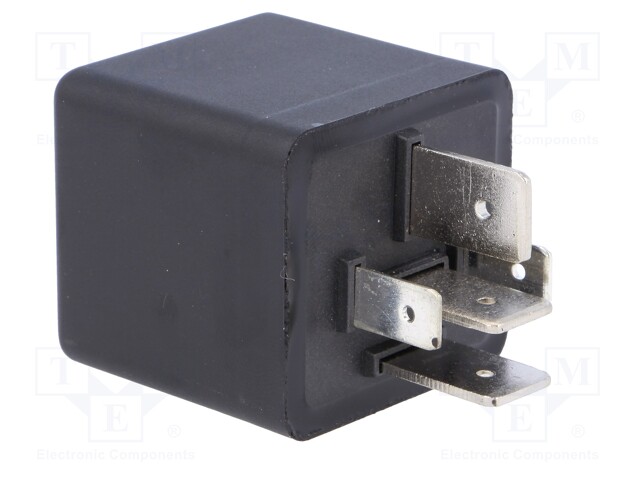

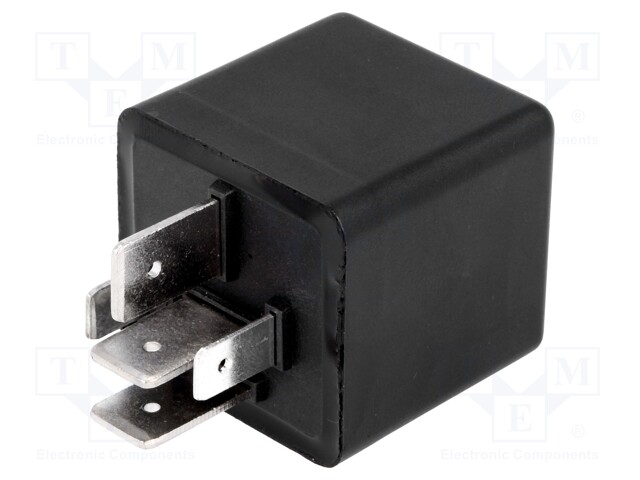

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 150A; automotive; 2.9W

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: FRC6BC-1-DC24
    Tootja: FORWARD INDUSTRIAL CO.
    Tootja tootekood: FRC6BC-1-DC24
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    10,94 € 10,94 € (KM-TA) 10.94 EUR

    10,94 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 150A; automotive; 2.9W

    Mounting on panel
    Operating temperature -40...85°C
    Leads connectors
    Contact material AgSnO<sub>2</sub>

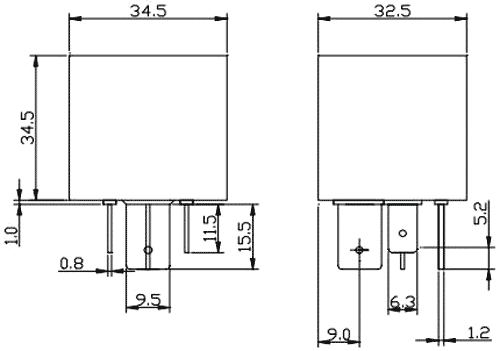

    Body dimensions 32.5x32.5x34mm
    Mechanical durability 10000000cycles
    Switched voltage ≤ 75V DC
    Electrical life 100000cycles
    Coil resistance 195Ω
    Rated coil voltage 24V DC

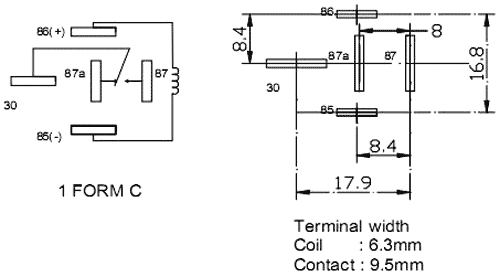

    Contacts configuration SPDT
    DC contacts rating @R 100A / 12V DC
    Contact resistance 30mΩ
    Contact current max. 150A
    Relay variant automotive
    Coil voltage max. 31.2V DC
    Type of relay electromagnetic
    Coil voltage min. 15.6V DC
    Coil power consumption 2.9W
    Operate time 10ms
    Release time 5ms
    Coil current 123mA
