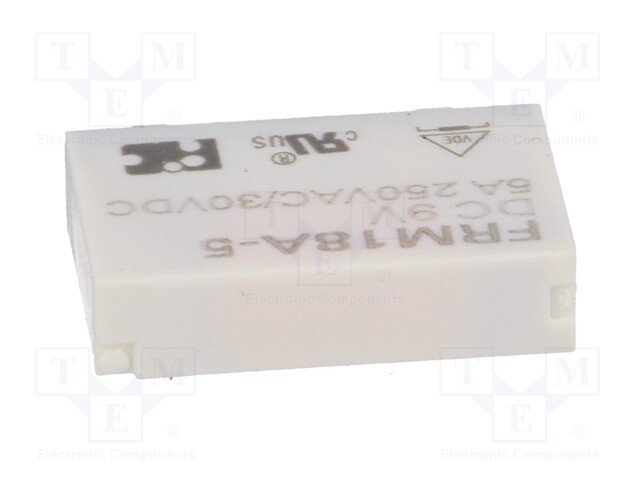

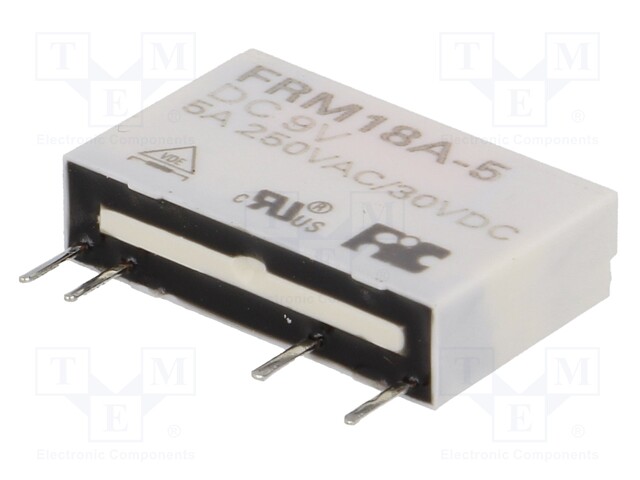

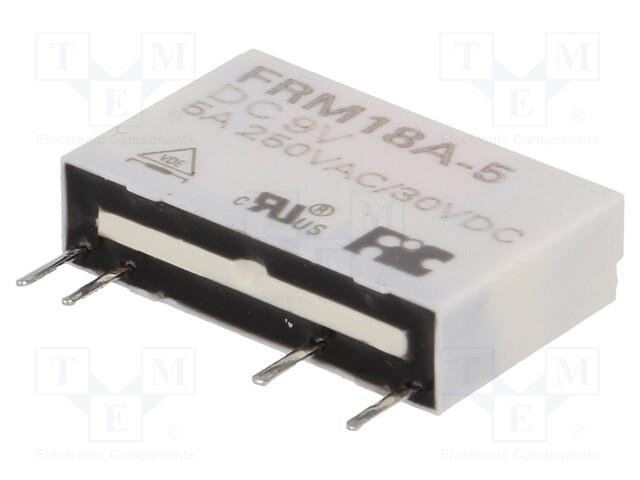

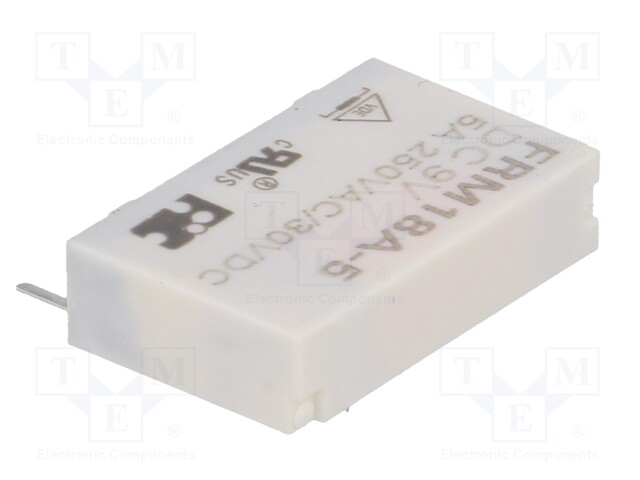

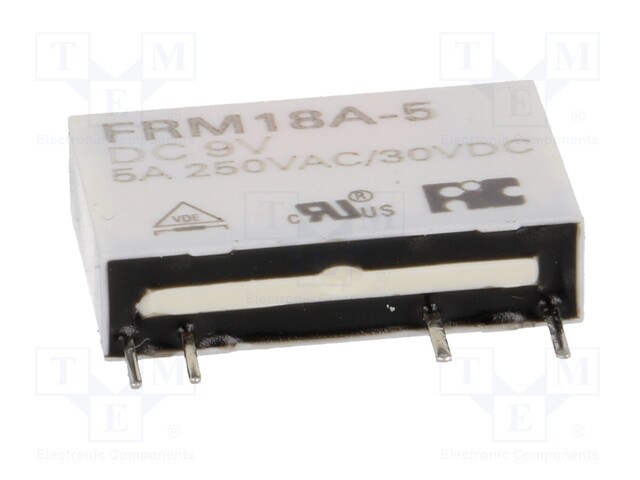

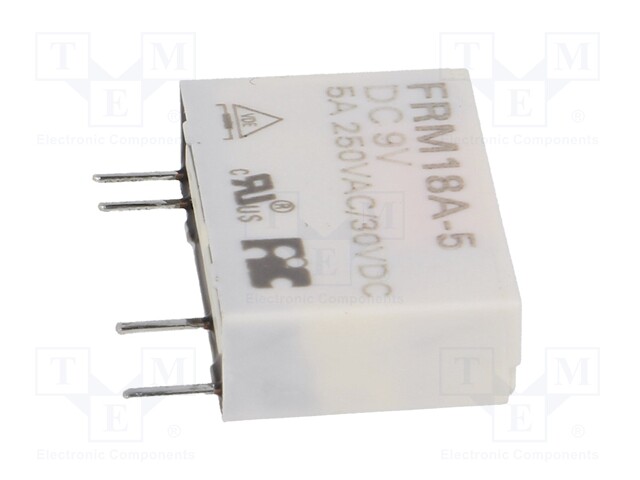

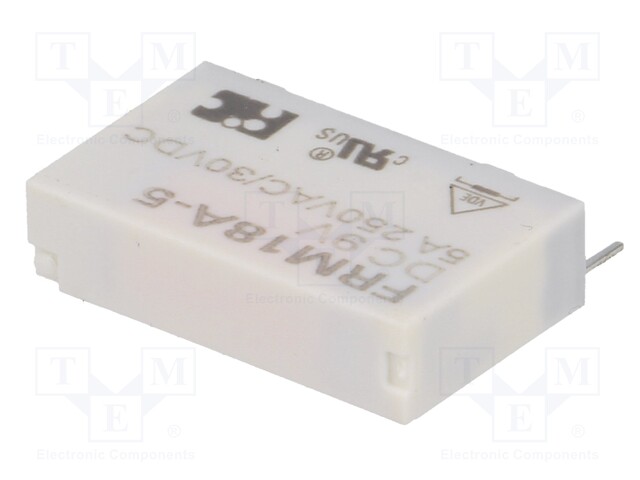

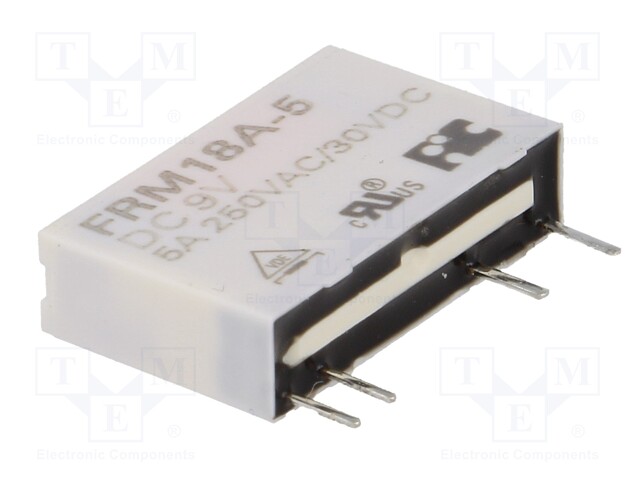

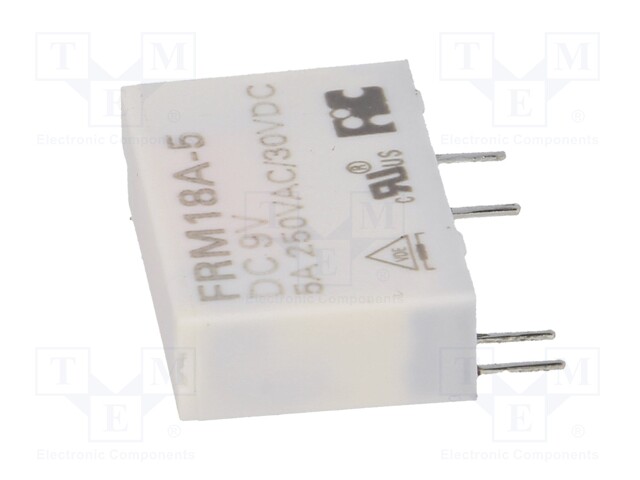

Relay: electromagnetic; SPST-NO; Ucoil: 9VDC; 5A/250VAC; 5A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: FRM18A-5 DC9V
    Tootja: FORWARD INDUSTRIAL CO.
    Tootja tootekood: FRM18A-5 DC9V
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    2,27 € 2,27 € (KM-TA) 2.27 EUR

    2,27 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 9VDC; 5A/250VAC; 5A/30VDC

    Mounting PCB
    Operating temperature -40...70°C
    Contact material silver alloy
    Terminal pitch 5mm

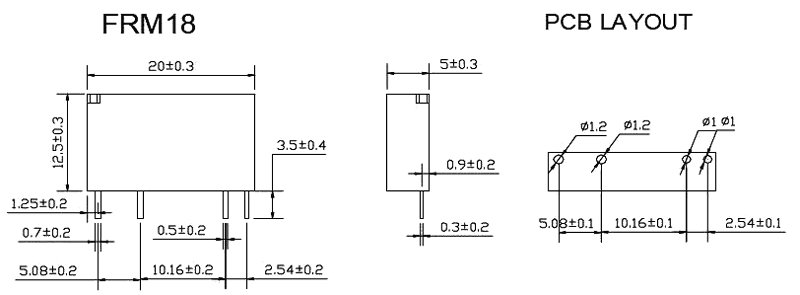

    Body dimensions 20x12.5x5mm
    Mechanical durability 20000000cycles
    Switched voltage ≤ 110V DC, ≤ 250V AC
    Coil resistance 675Ω
    Rated coil voltage 9V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant interface
    Type of relay electromagnetic
    Coil power consumption 120mW
    Coil current 13.3mA
