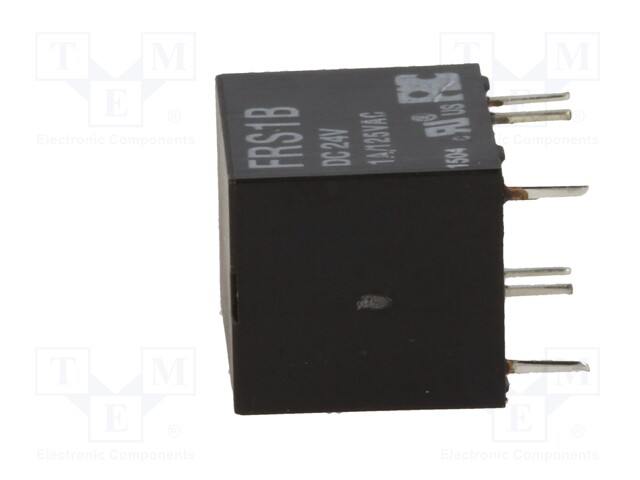

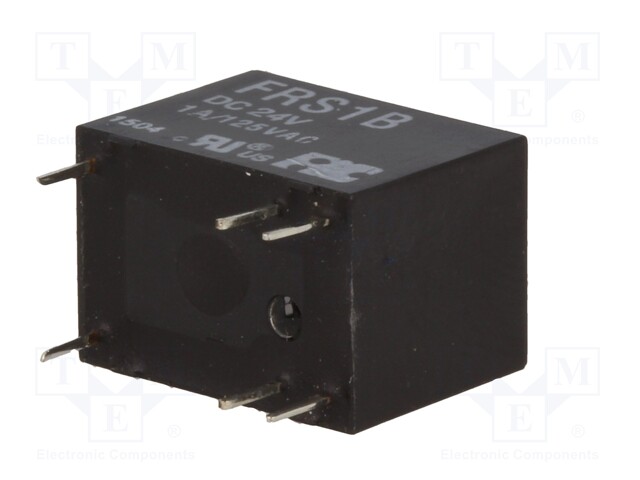

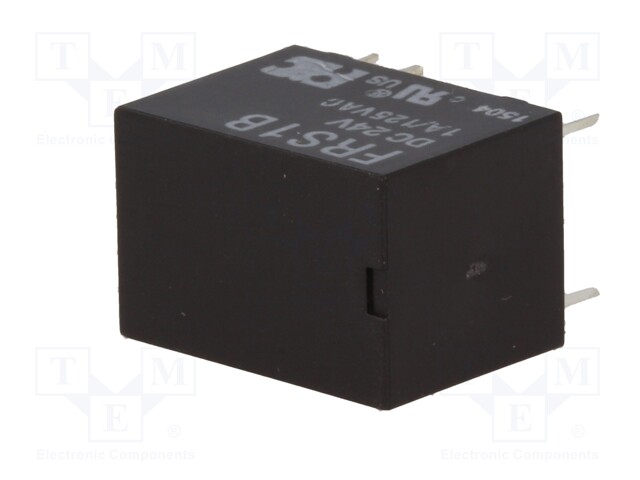

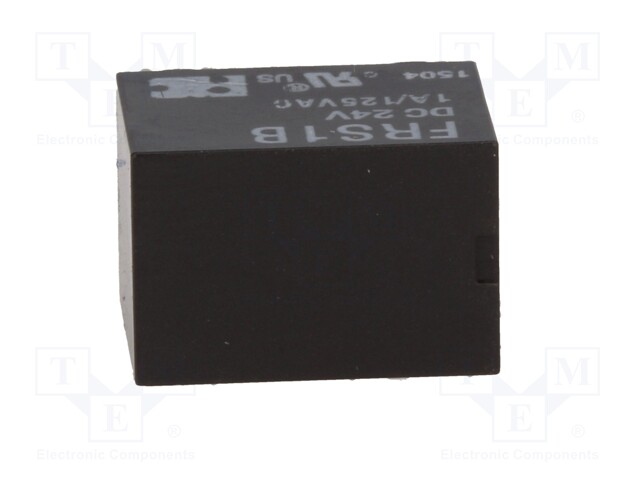

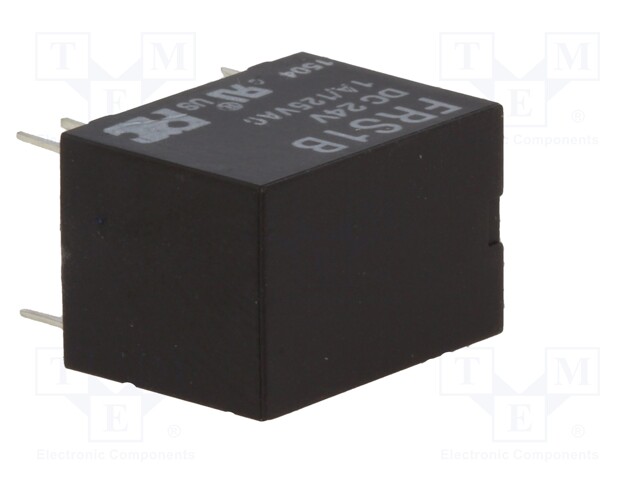

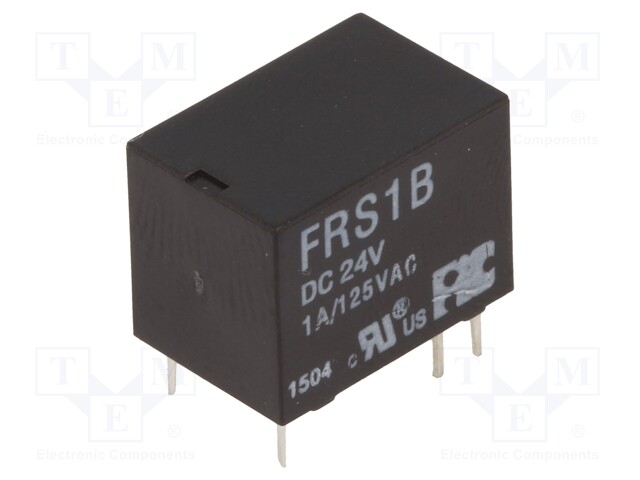

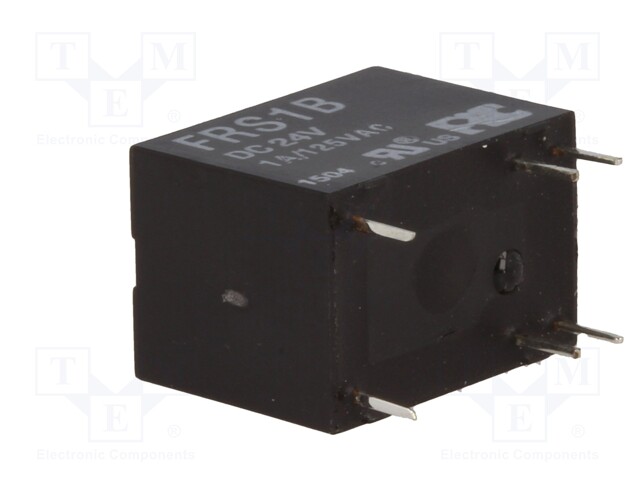

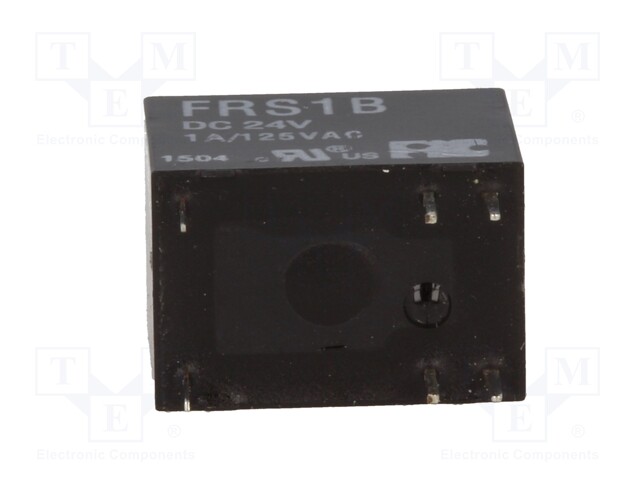

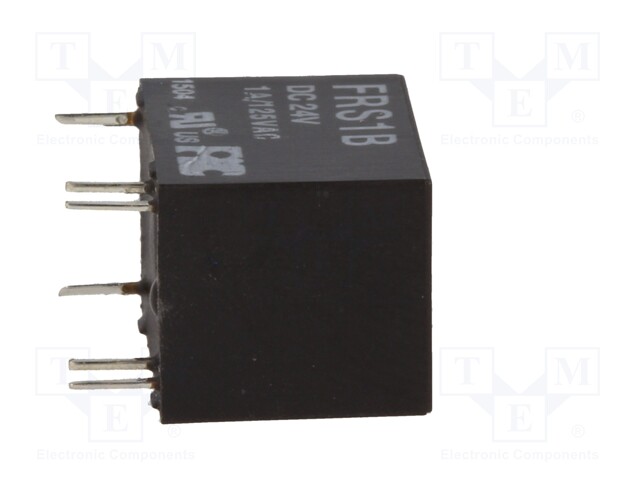

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 1A/125VAC; 1A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: FRS1-B-DC24
    Tootja: FORWARD INDUSTRIAL CO.
    Tootja tootekood: FRS1-B-DC24
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Coil current

    1,52 € 1,52 € (KM-TA) 1.52 EUR

    1,52 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 1A/125VAC; 1A/30VDC

    Mounting PCB
    Operating temperature -25...75°C
    Contact material AgNi

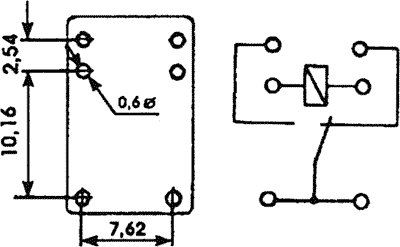

    Terminal pitch 2.54mm

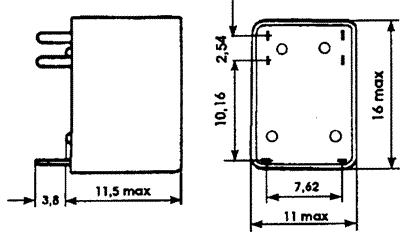

    Body dimensions 16x11x11.5mm
    Switched voltage ≤ 60V DC, ≤ 220V AC
    Coil resistance 1.28kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 1A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 1A / 125V AC
    Contact current max. 1A
    Relay variant subminiature
    Type of relay electromagnetic
    Coil power consumption 450mW
    Coil current 18.8mA
