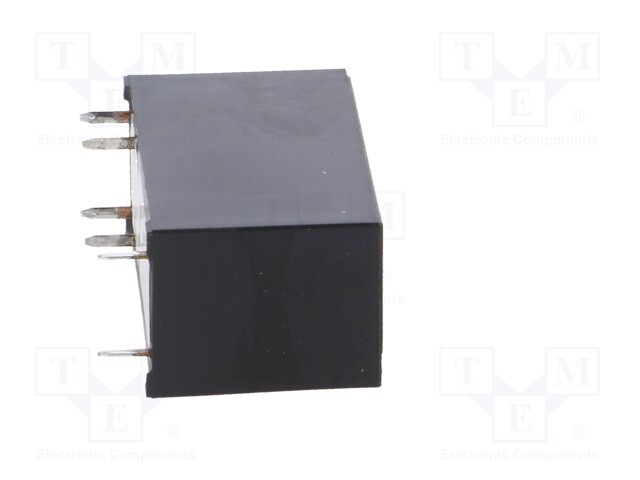

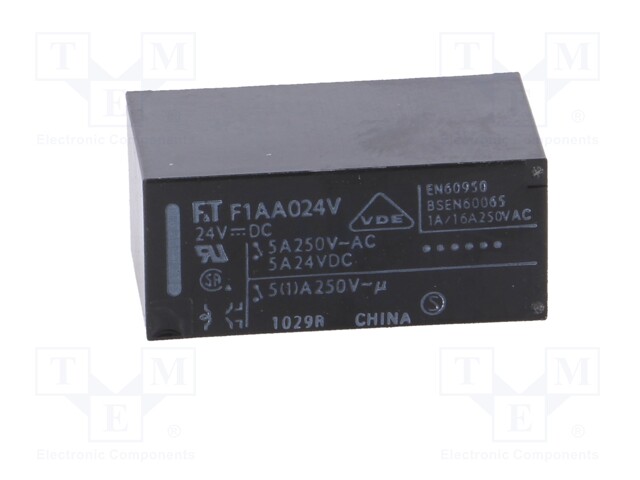

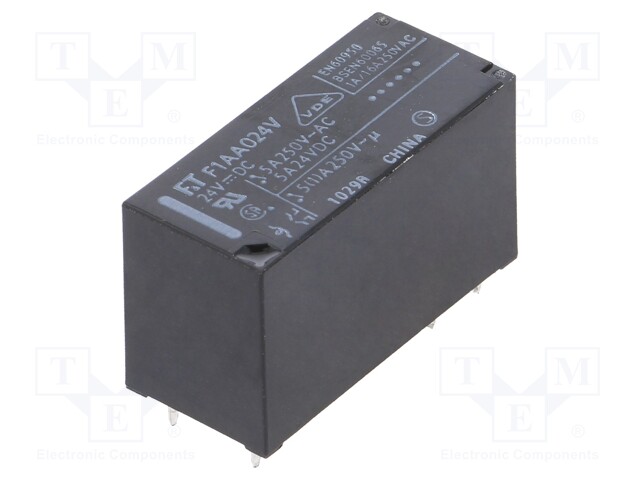

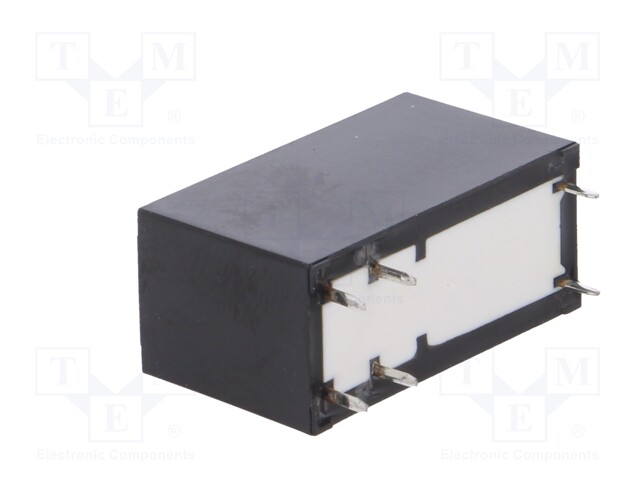

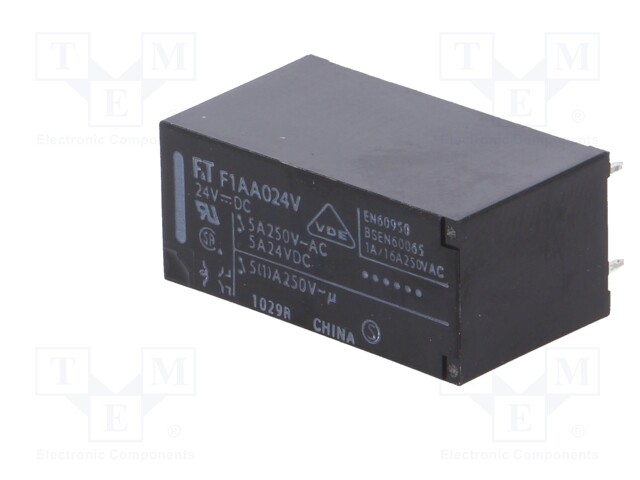

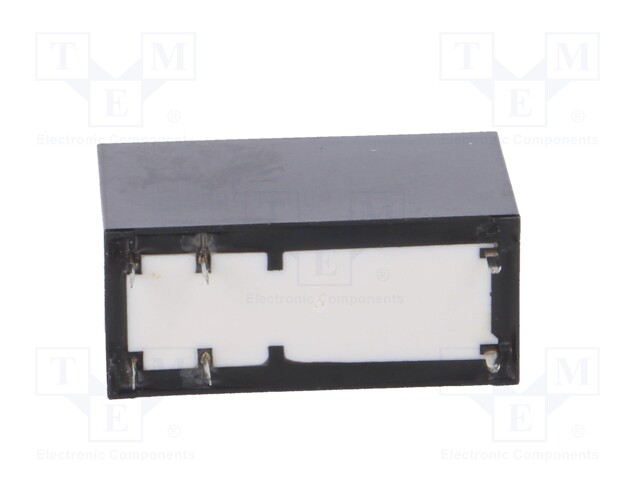

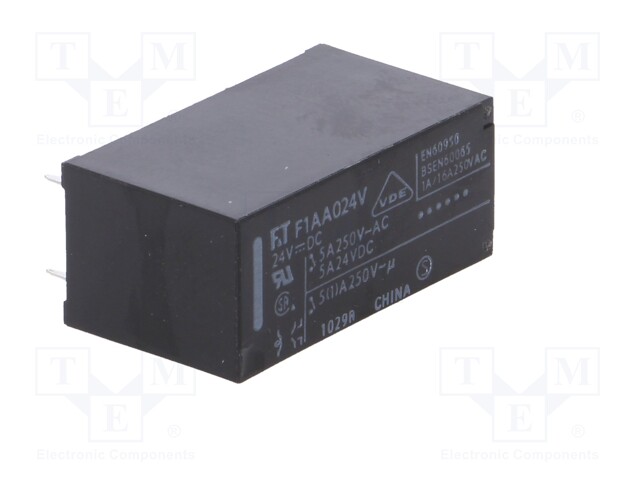

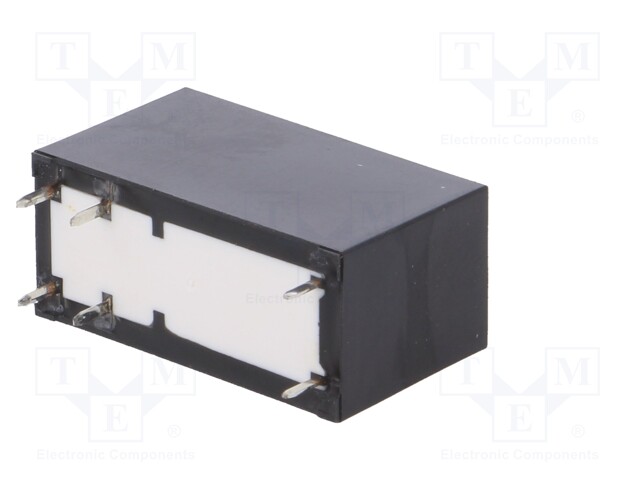

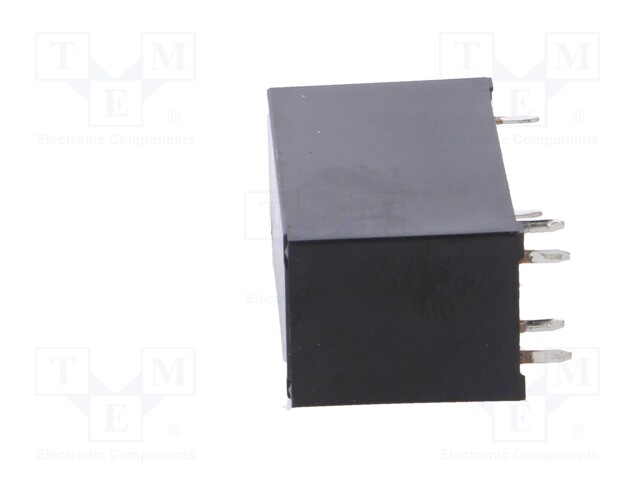

Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; 5A/250VAC; 5A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: FTR-F1AA024V
    Tootja: FCL Components
    Tootja tootekood: FTR-F1AA024V
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    2,40 € 2,40 € (KM-TA) 2.4 EUR

    2,40 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; DPST-NO; Ucoil: 24VDC; 5A/250VAC; 5A/24VDC

    Mounting PCB
    Operating temperature -40...75°C
    Contact plating gold-plated
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 5mm

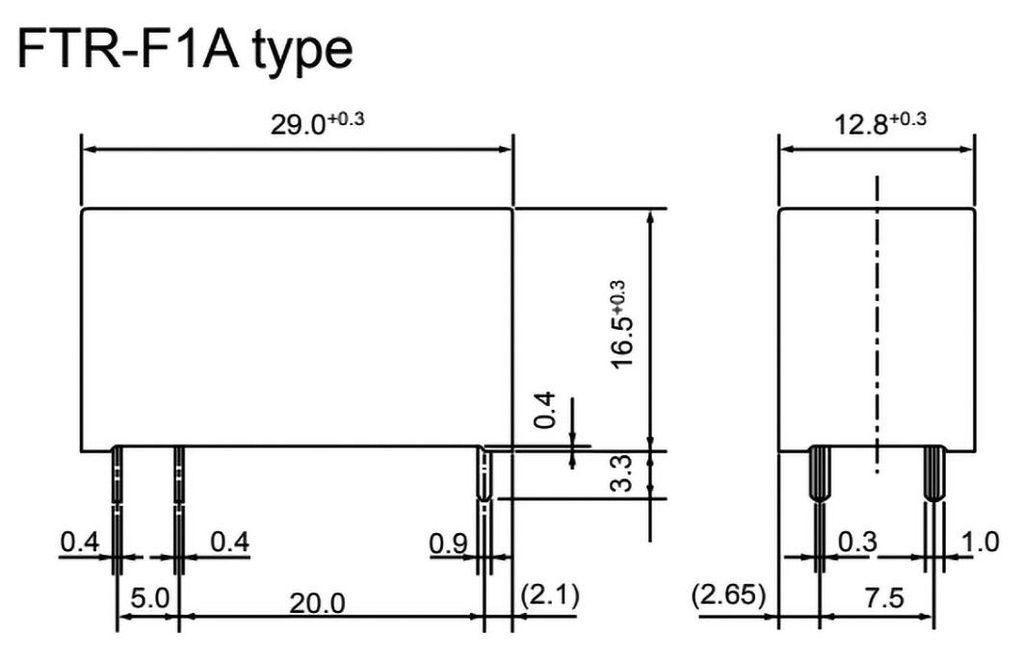

    Body dimensions 29x12.8x16.5mm
    Switched voltage ≤ 300V DC, ≤ 400V AC
    Coil resistance 1.1kΩ
    Rated coil voltage 24V DC

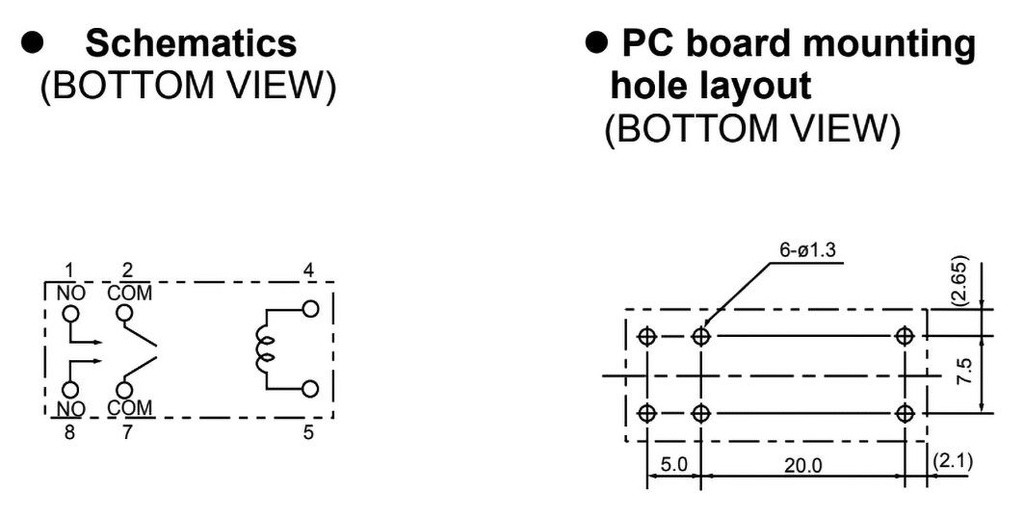

    Contacts configuration DPST-NO
    DC contacts rating @R 5A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 16.8V DC
    Coil power consumption 530mW
    Operate time 15ms
    Release time 5ms
