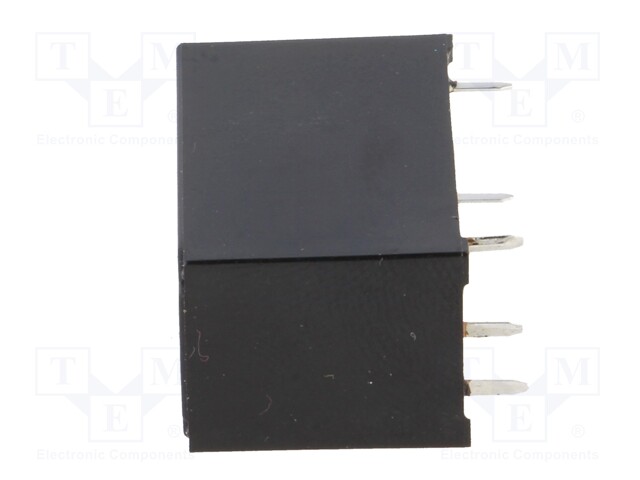

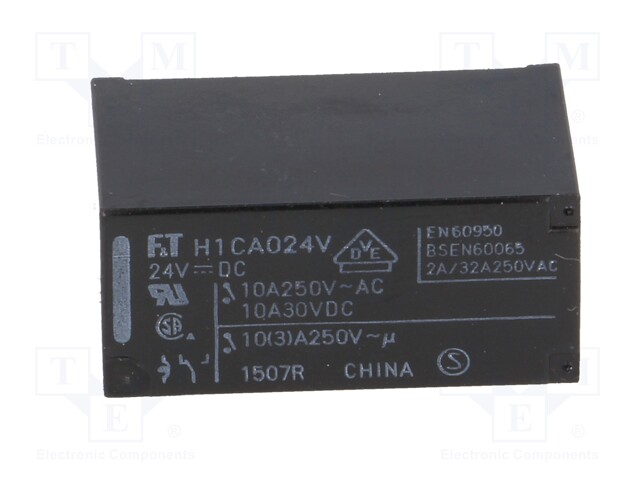

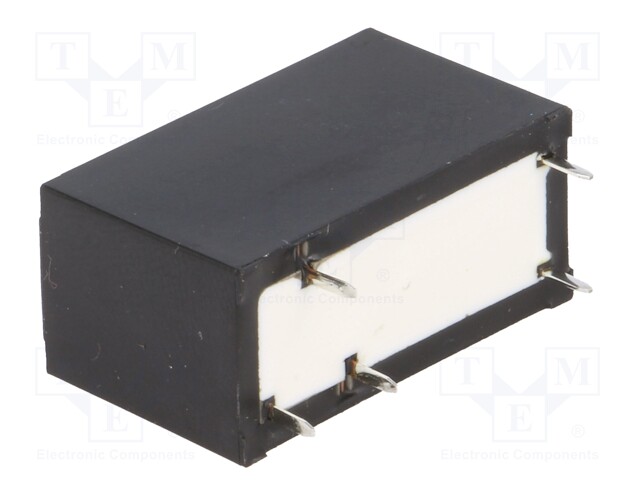

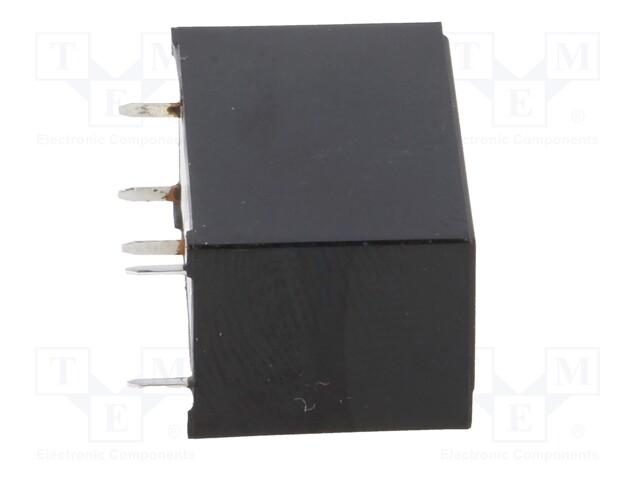

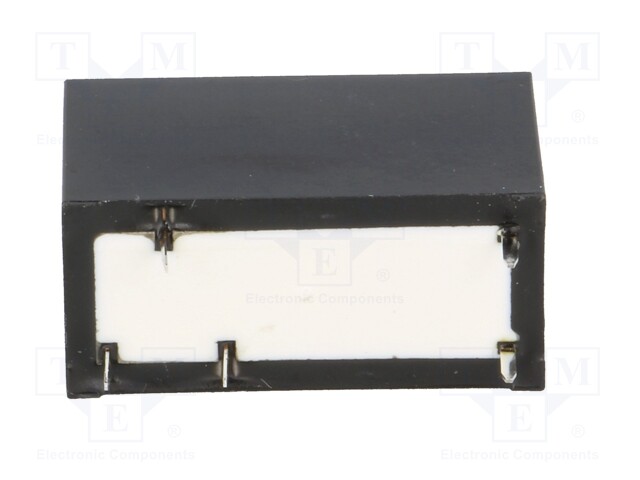

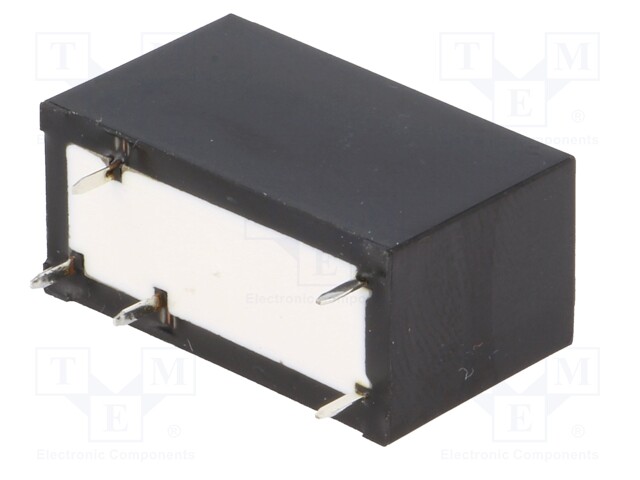

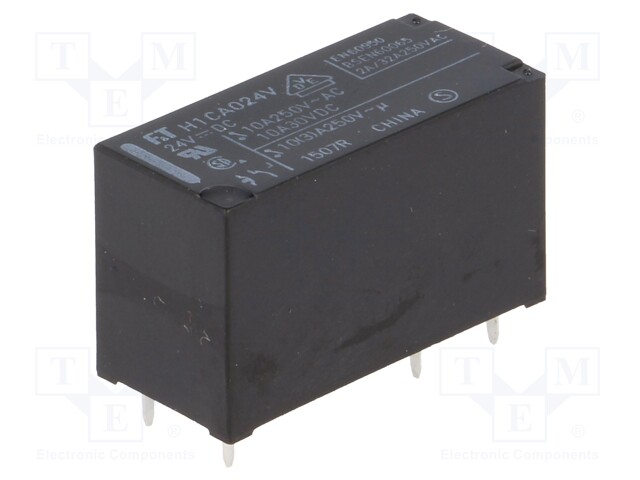

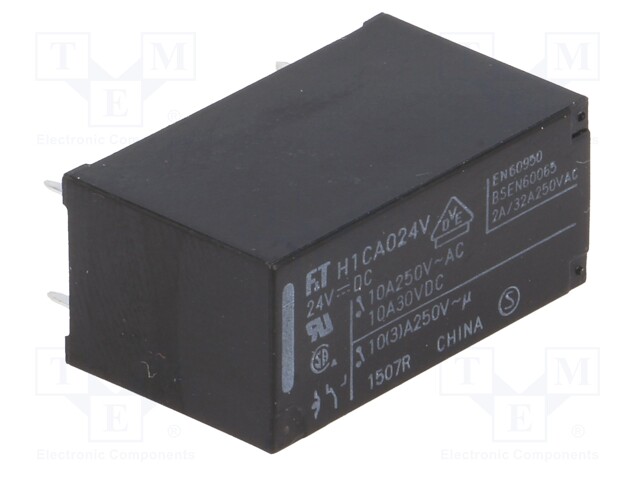

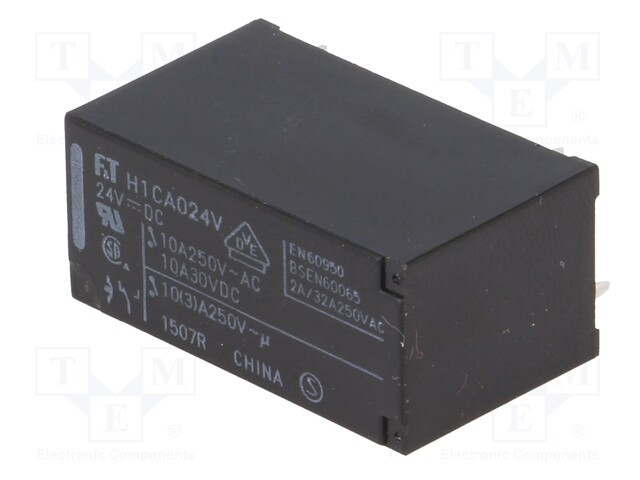

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/250VAC; 10A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: FTR-H1CA024V
    Tootja: FUJITSU
    Tootja tootekood: FTR-H1CA024V
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil voltage min.
    • Coil power consumption
    • Operate time
    • Release time

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 10A/250VAC; 10A/30VDC

    Mounting PCB
    Operating temperature -40...70°C
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 3.5mm
    Body dimensions 28x12.8x16.5mm
    Switched voltage ≤ 300V DC, ≤ 400V AC
    Coil resistance 1.1kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 10A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Relay variant miniature
    Type of relay electromagnetic
    Coil voltage min. 16.8V DC
    Coil power consumption 530mW
    Operate time 10ms
    Release time 5ms
