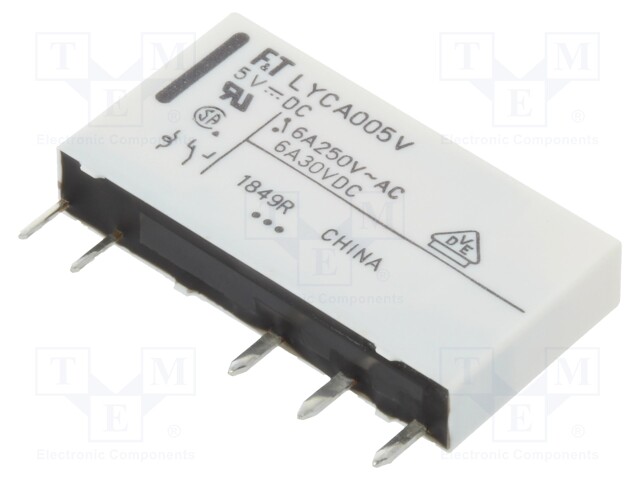

Relay: electromagnetic; SPDT; Ucoil: 5VDC; 6A/250VAC; 6A/24VDC; 6A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: FTR-LYCA005V
    Tootja: FUJITSU
    Tootja tootekood: FTR-LYCA005V
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Electrical life
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time

    3,90 € 3,90 € (KM-TA) 3.9 EUR

    3,90 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 5VDC; 6A/250VAC; 6A/24VDC; 6A

    Mounting PCB
    Operating temperature -40...85°C
    Contact material AgSnO<sub>2</sub> Au
    Terminal pitch 5.04mm

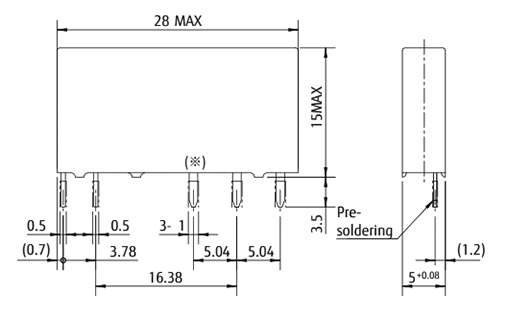

    Body dimensions 28x5x15mm
    Mechanical durability 10000000cycles
    Switched voltage ≤ 250V AC
    Electrical life 30000cycles
    Coil resistance 147Ω
    Rated coil voltage 5V DC
    Contacts configuration SPDT
    DC contacts rating @R 6A / 24V DC
    Contact resistance 30mΩ
    AC contacts rating @R 6A / 250V AC
    Contact current max. 6A
    Relay variant interface
    Type of relay electromagnetic
    Operate time 8ms
    Release time 4ms
