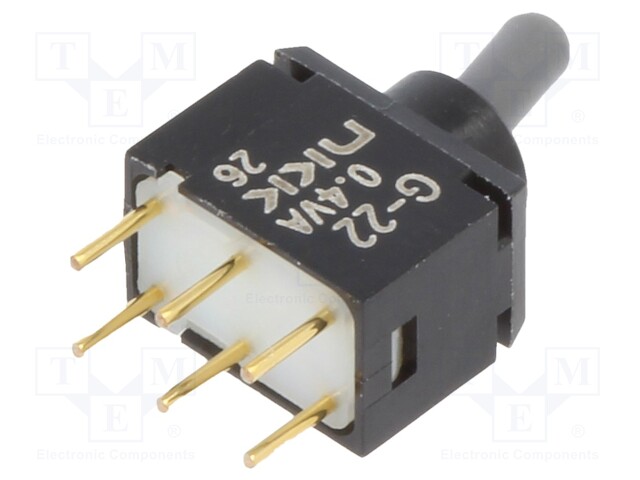

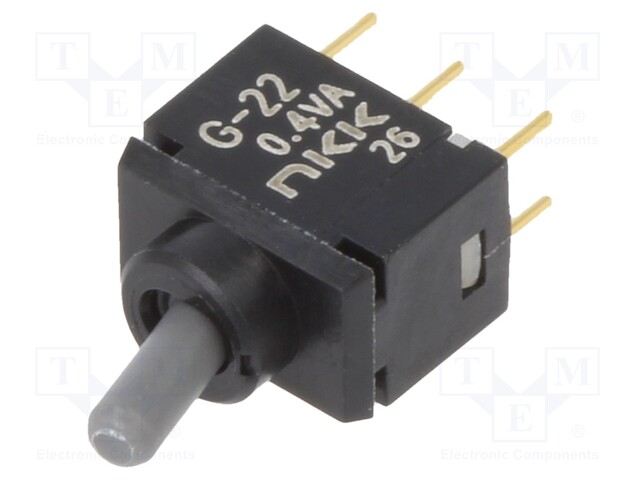

Switch: toggle; Pos: 2; DPDT; ON-ON; Leads: for soldering,straight

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G22AP
    Tootja: NKK SWITCHES
    Tootja tootekood: G22AP
    • Mounting
    • Operating temperature
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Leads
    • Contact material
    • Max. contact resistance
    • Terminal pitch
    • Body material
    • Mechanical durability
    • Number of terminals
    • Illumination
    • Min. insulation resistance
    • Electrical life
    • Poles number
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Actuator material
    • Kind of toggle

    6,93 € 6,93 € (KM-TA) 6.93 EUR

    6,93 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: toggle; Pos: 2; DPDT; ON-ON; Leads: for soldering,straight

    Mounting THT
    Operating temperature -25...85°C
    Type of switch toggle
    Contact plating gold-plated
    Number of positions 2
    Leads for soldering, straight
    Contact material phosphor bronze
    Max. contact resistance 80mΩ
    Terminal pitch 2.54mm
    Body material polyamide
    Mechanical durability 100000cycles
    Number of terminals 6
    Illumination none
    Min. insulation resistance 500MΩ
    Electrical life 100000cycles
    Poles number 2
    Contacts configuration DPDT
    DC contacts rating @R 100mA / 28V DC
    AC contacts rating @R 100mA / 28V AC
    Switching method ON-ON
    Stable positions number 2
    Operating Force 1.2N
    Actuator material polyamide
    Kind of toggle round
