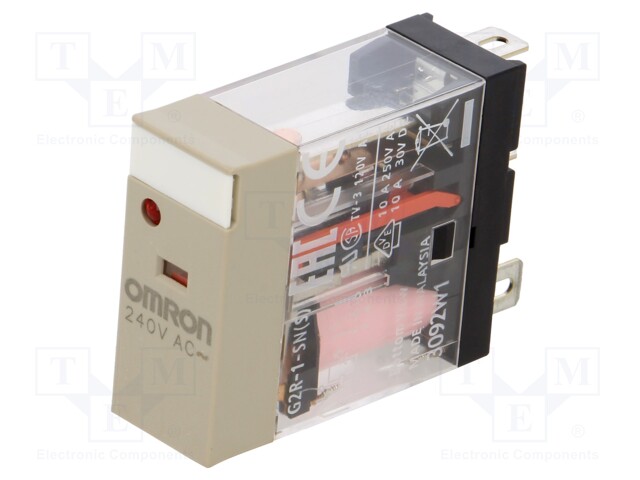

Relay: electromagnetic; SPDT; Ucoil: 240VAC; Icontacts max: 10A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G2R-1-SN 240VAC (S)-1
    Tootja: OMRON
    Tootja tootekood: G2R-1-SN 240VAC (S)
    • Mounting
    • Operating temperature
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Indication
    • Switching capacity
    • Switching capacity
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Operate time
    • Release time

    14,98 € 14,98 € (KM-TA) 14.98 EUR

    14,98 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 240VAC; Icontacts max: 10A

    Mounting socket
    Operating temperature -40...70°C

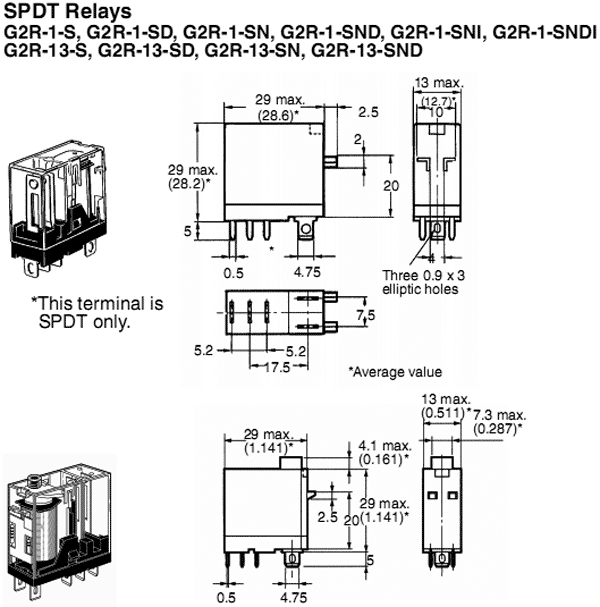

    Body dimensions 29x13x35.5mm
    Switched voltage ≤ 125V DC, ≤ 380V AC
    Indication LED
    Switching capacity 300W, 2.5kVA
    Contacts configuration SPDT
    DC contacts rating @R 10A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Relay variant industrial, miniature
    Type of relay electromagnetic
    Operate time 15ms
    Release time 10ms
