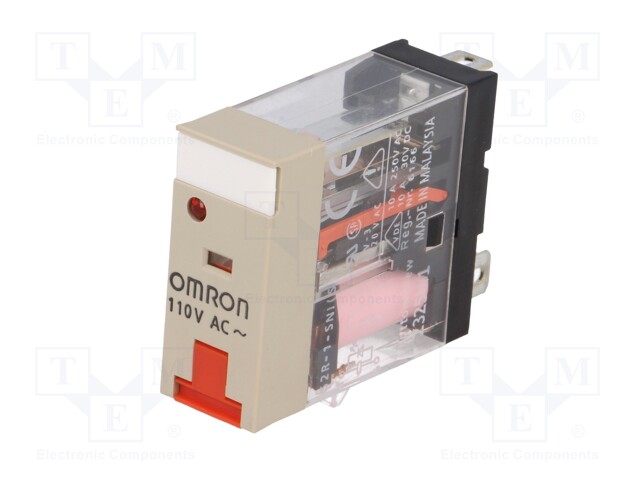

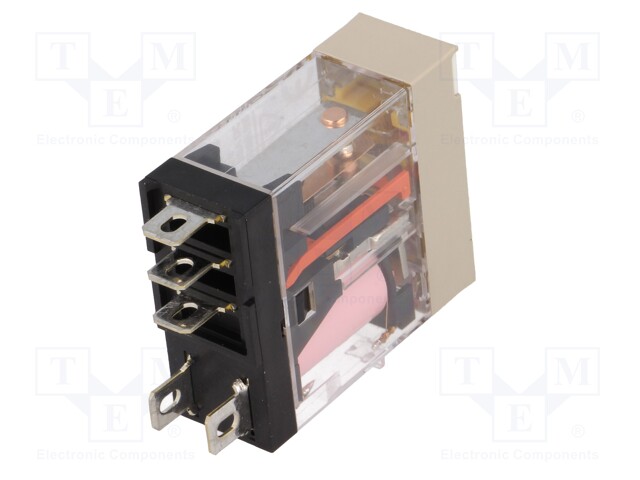

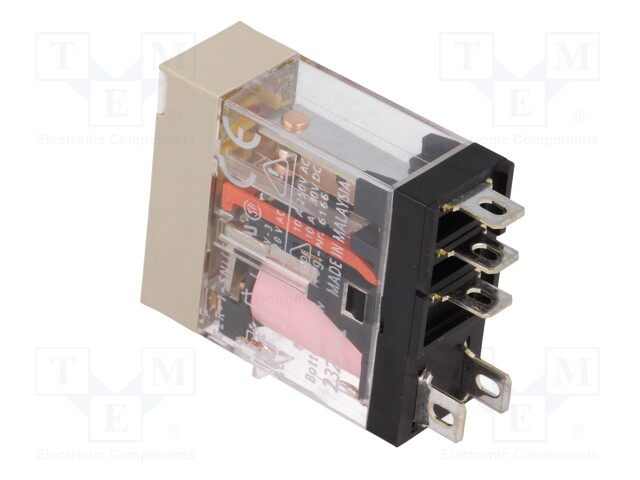

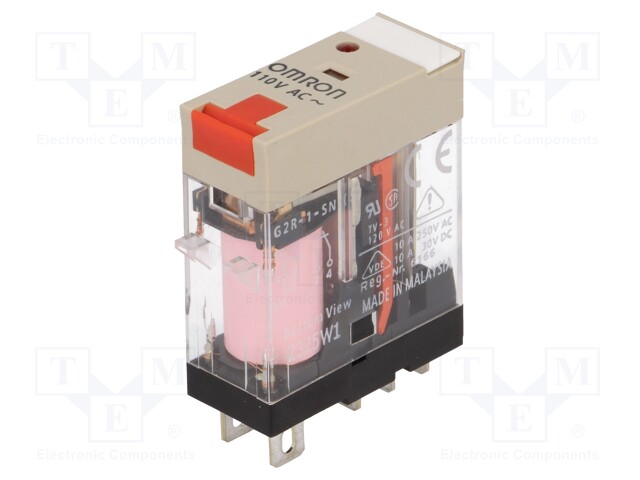

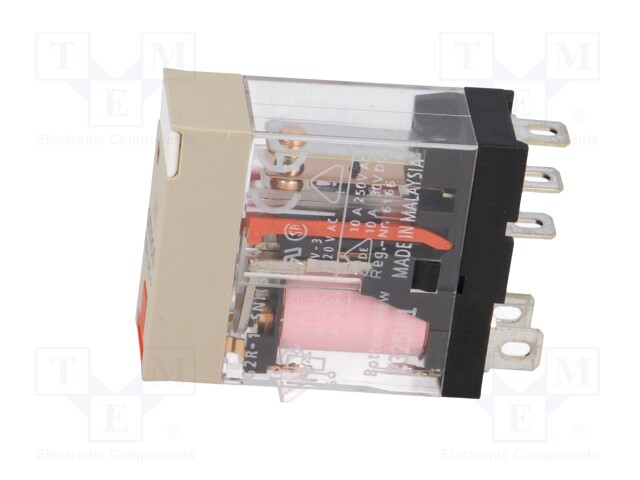

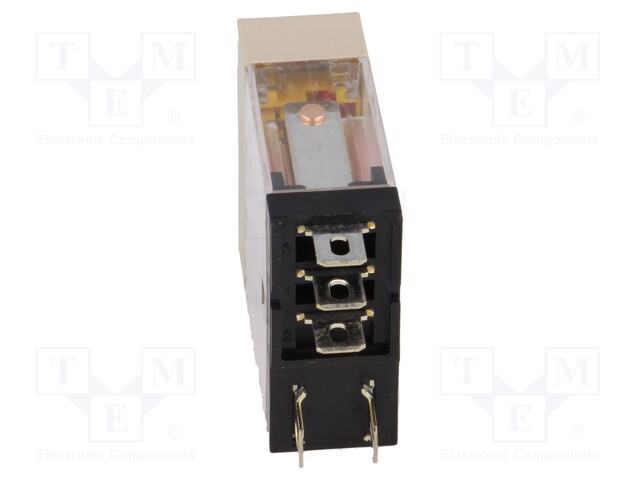

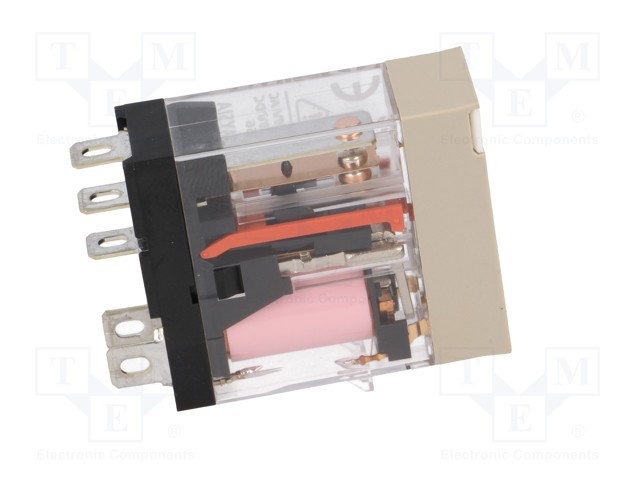

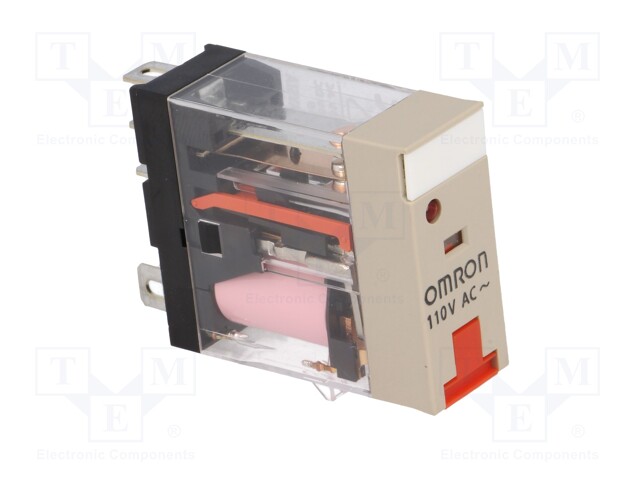

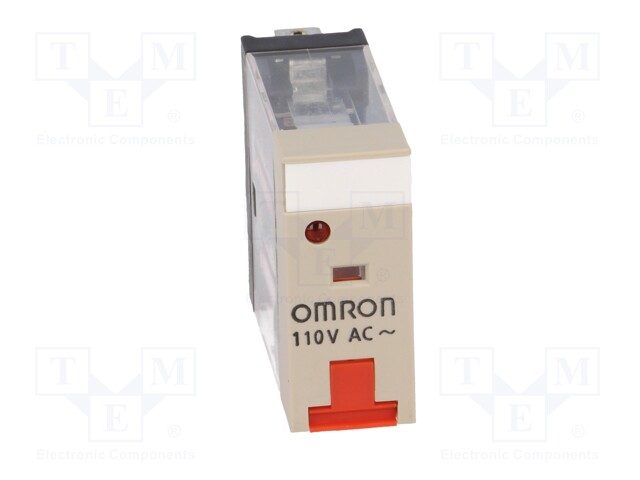

Relay: electromagnetic; SPDT; Ucoil: 110VAC; 10A/250VAC; 10A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G2R-1-SNI 110VAC (S)
    Tootja: OMRON
    Tootja tootekood: G2R-1-SNI 110VAC (S)
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Indication
    • Switching capacity
    • Switching capacity
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current
    • Optional equipment
    • Optional equipment

    15,96 € 15,96 € (KM-TA) 15.96 EUR

    15,96 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 110VAC; 10A/250VAC; 10A/30VDC

    Mounting socket
    Operating temperature -40...70°C
    Terminal pitch 5.2mm
    Body dimensions 29x13x35.5mm
    Switched voltage ≤ 125V DC, ≤ 380V AC
    Indication LED
    Switching capacity 300W, 2.5kVA
    Coil resistance 4.6kΩ
    Contacts configuration SPDT
    DC contacts rating @R 10A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 10A / 250V AC
    Contact current max. 10A
    Relay variant industrial, miniature
    Type of relay electromagnetic
    Coil power consumption 0.9VA
    Operate time 15ms
    Release time 10ms
    Coil current 11mA
    Optional equipment LED indicator, test button without blocking function
