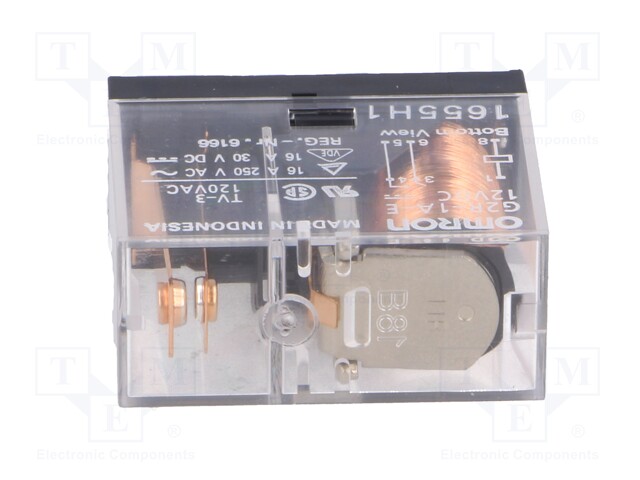

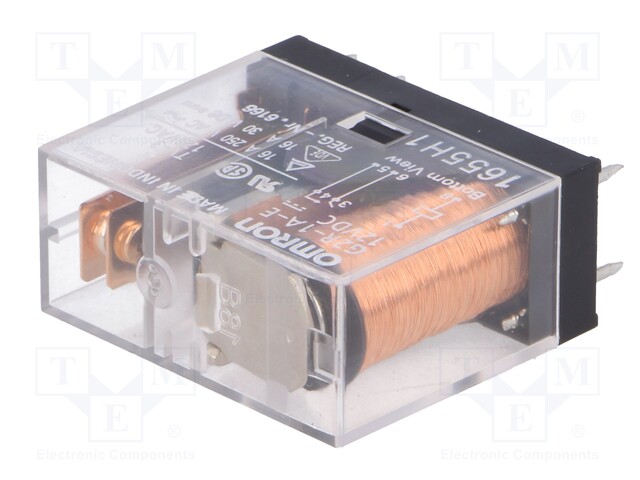

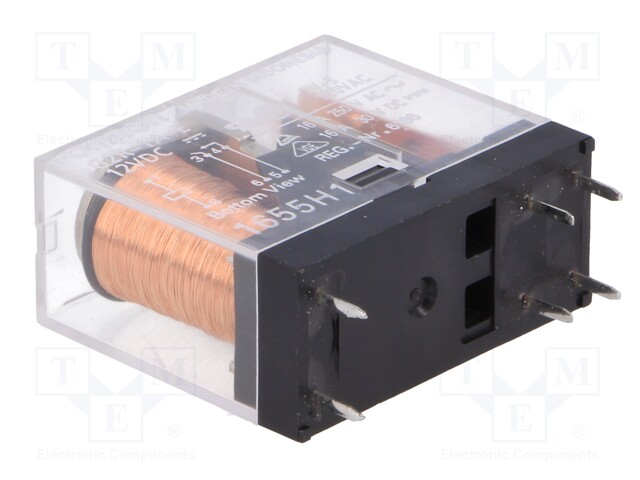

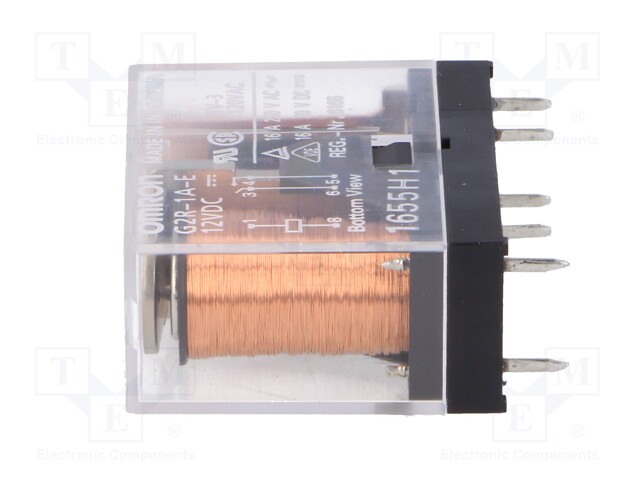

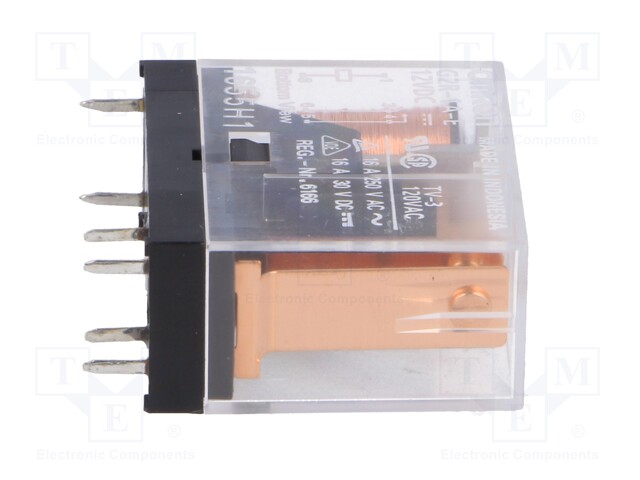

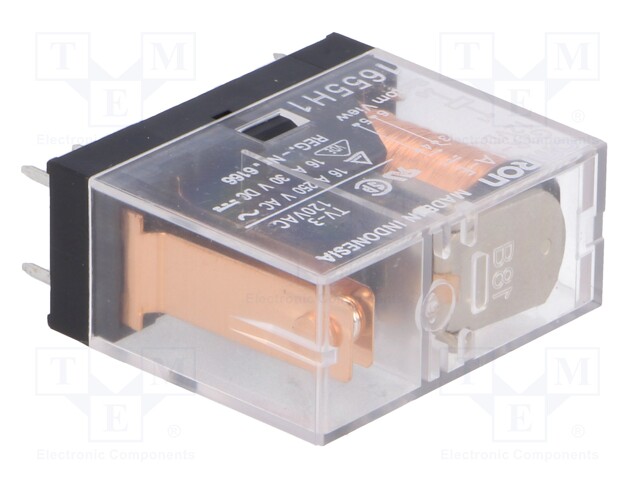

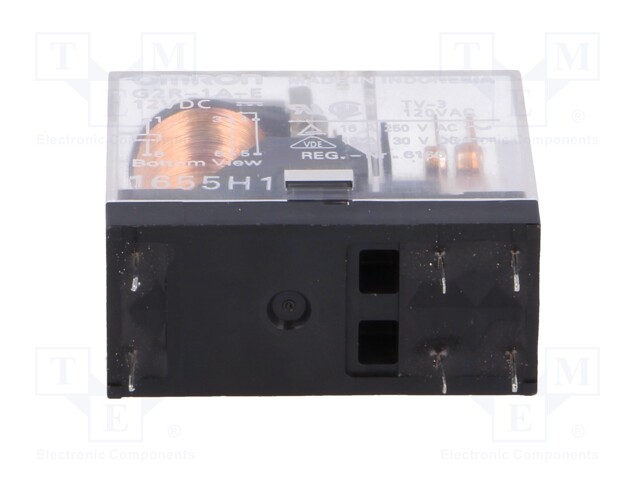

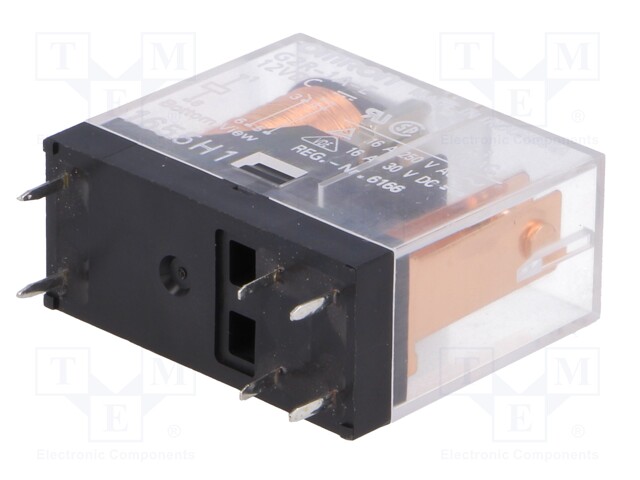

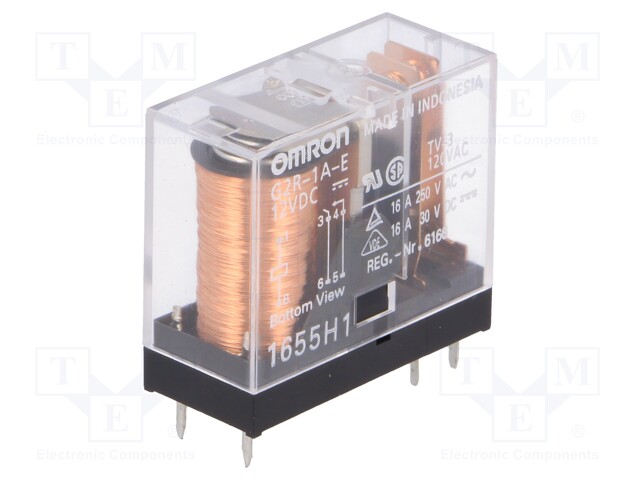

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A/250VAC; 30mΩ

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G2R-1A-E 12VDC
    Tootja: OMRON OCB
    Tootja tootekood: G2R-1A-E 12VDC
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Enclosure description
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    4,46 € 4,46 € (KM-TA) 4.46 EUR

    4,46 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A/250VAC; 30mΩ

    Mounting PCB
    Operating temperature -40...70°C

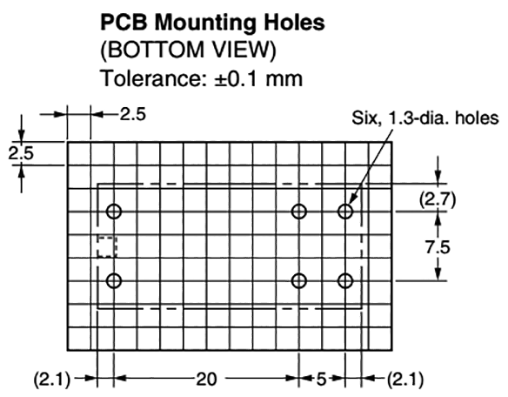

    Terminal pitch 5mm

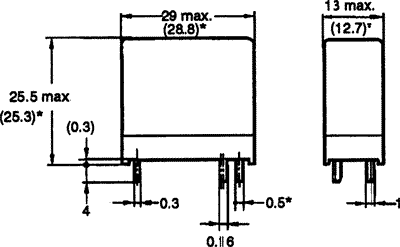

    Body dimensions 29x13x25.5mm
    Mechanical durability 20000000cycles
    Switched voltage ≤ 125V DC, ≤ 380V AC
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 16A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 16A / 250V AC
    Enclosure description standard seal
    Contact current max. 16A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 15ms
    Release time 5ms
    Coil current 43.6mA
