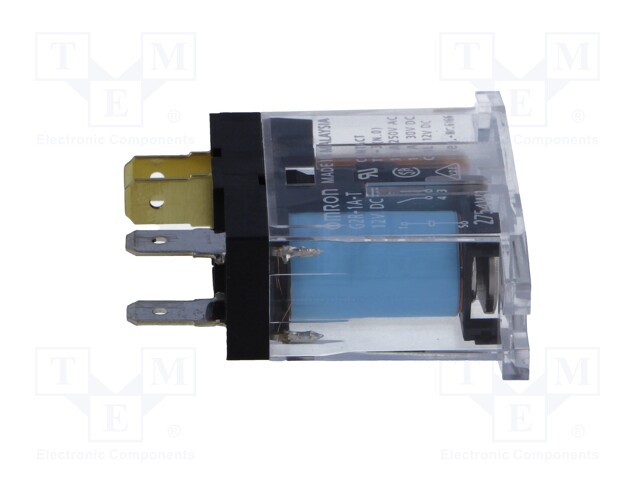

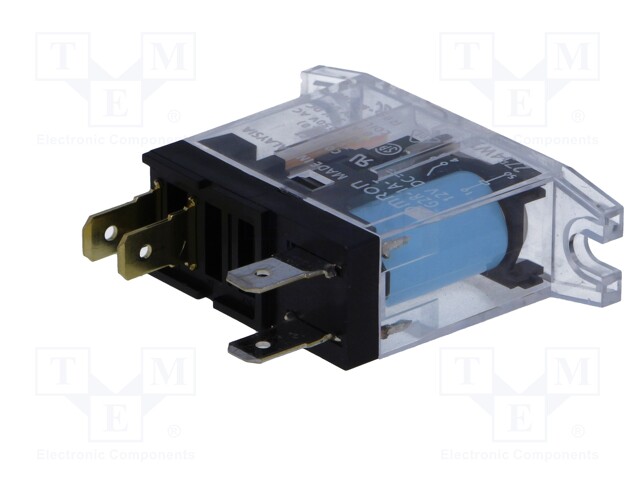

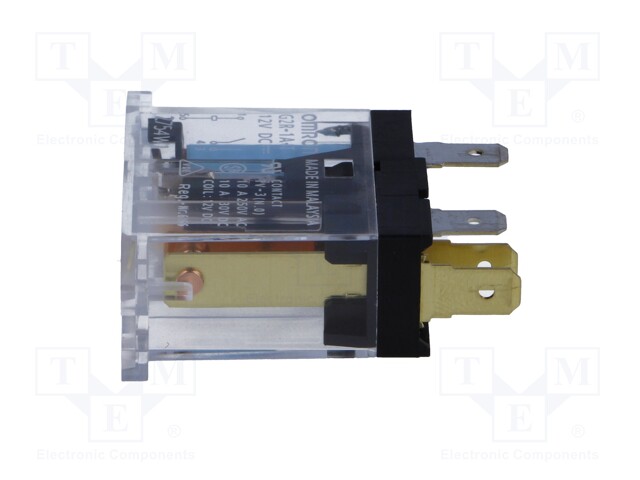

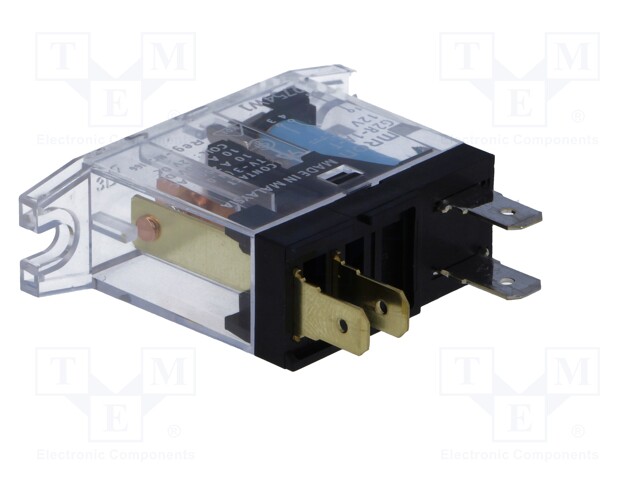

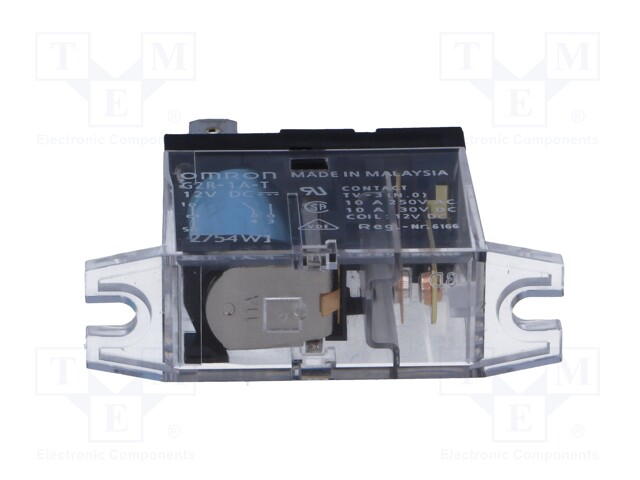

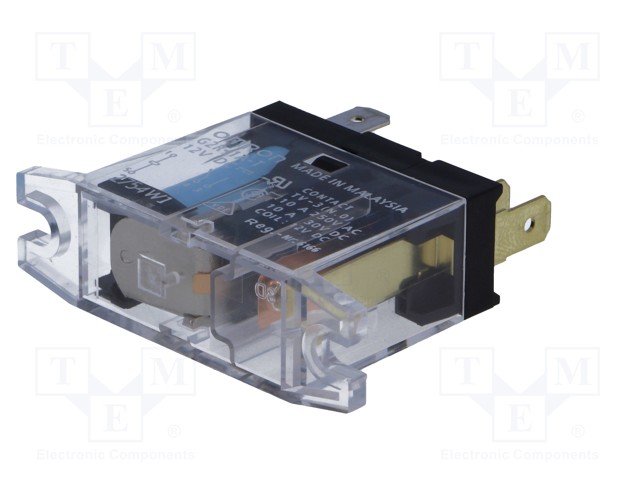

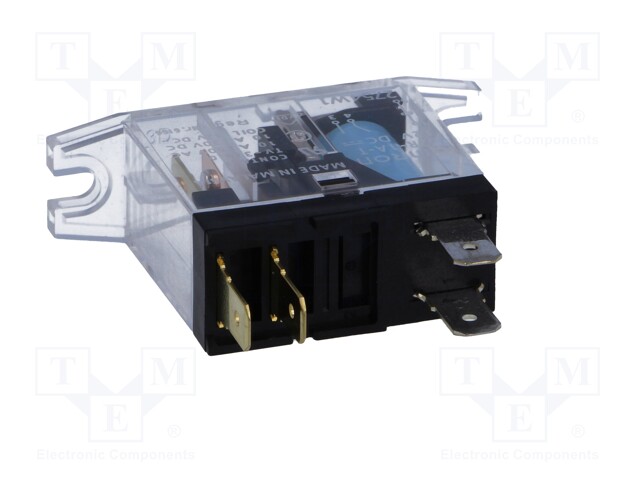

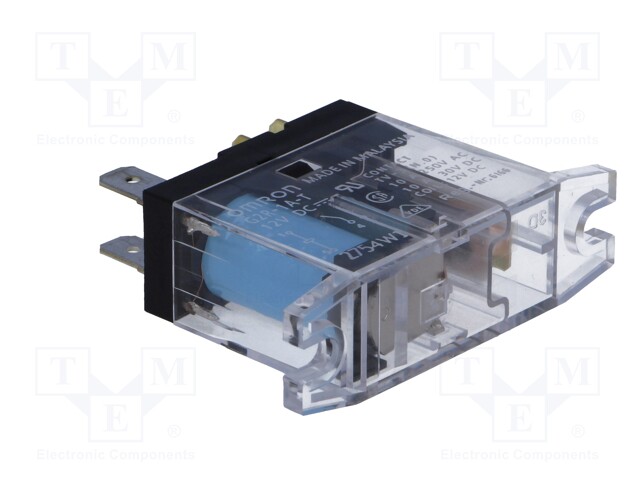

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A/250VAC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G2R-1A-T 12VDC
    Tootja: OMRON ELECTRONIC COMPONENTS
    Tootja tootekood: G2R-1A-T 12VDC
    • Mounting
    • Operating temperature
    • Leads
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Enclosure description
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    7,62 € 7,62 € (KM-TA) 7.62 EUR

    7,62 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 10A/250VAC

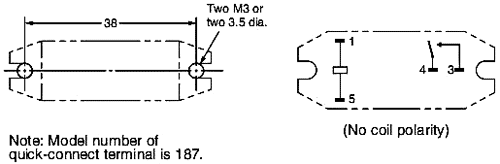

    Mounting screw type
    Operating temperature -40...70°C
    Leads connectors
    Terminal pitch 5.2mm

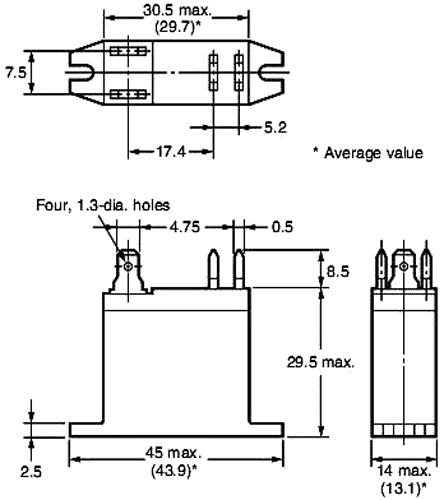

    Body dimensions 29x13x25.5mm
    Switched voltage ≤ 125V DC, ≤ 380V AC
    Coil resistance 275Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 10A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 10A / 250V AC
    Enclosure description standard seal
    Contact current max. 10A
    Relay variant miniature, monostable
    Type of relay electromagnetic
    Operate time 15ms
    Release time 5ms
    Coil current 43.6mA
