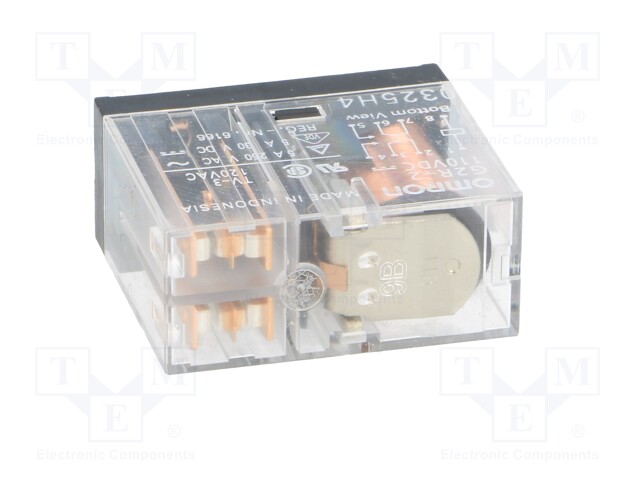

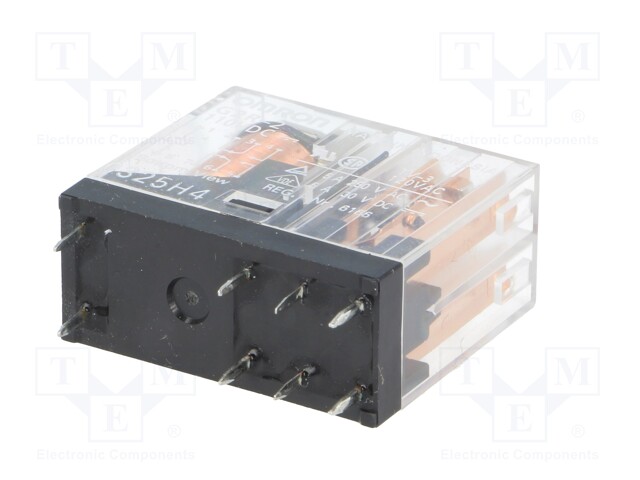

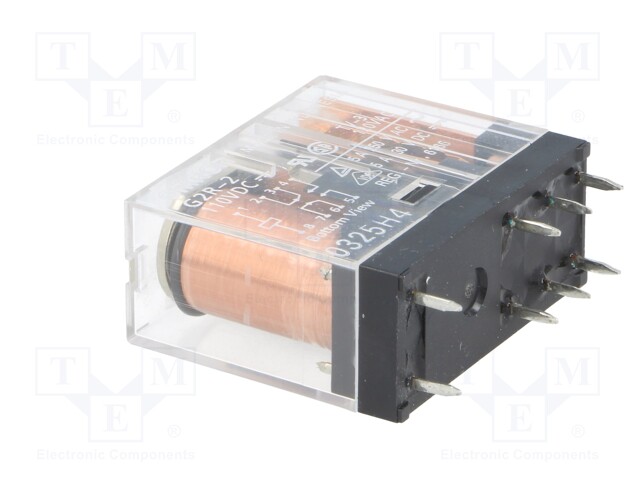

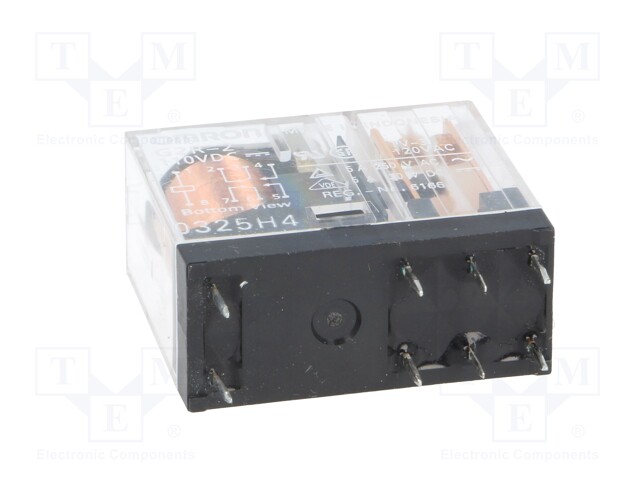

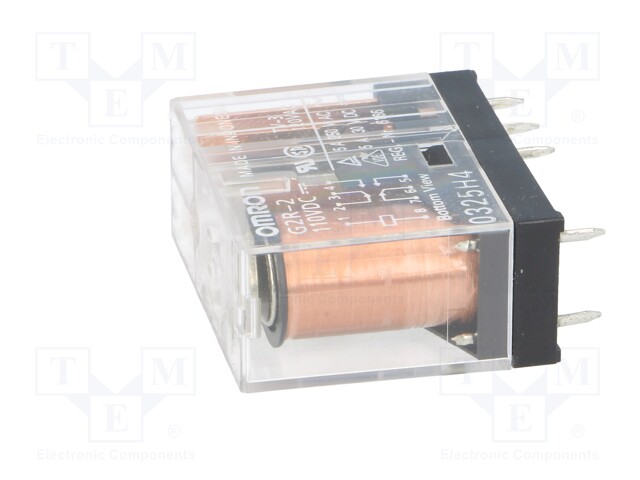

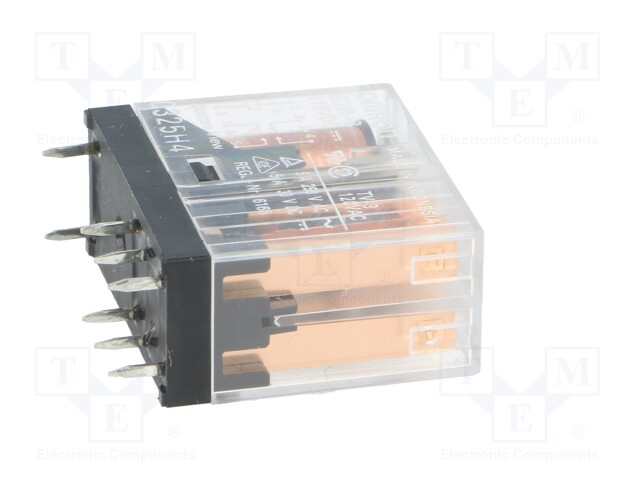

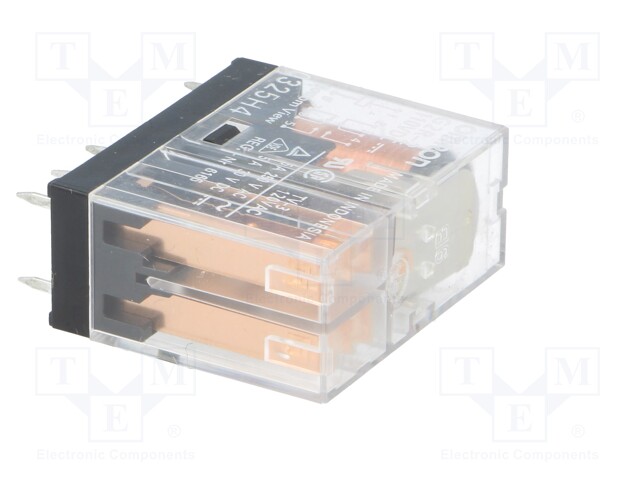

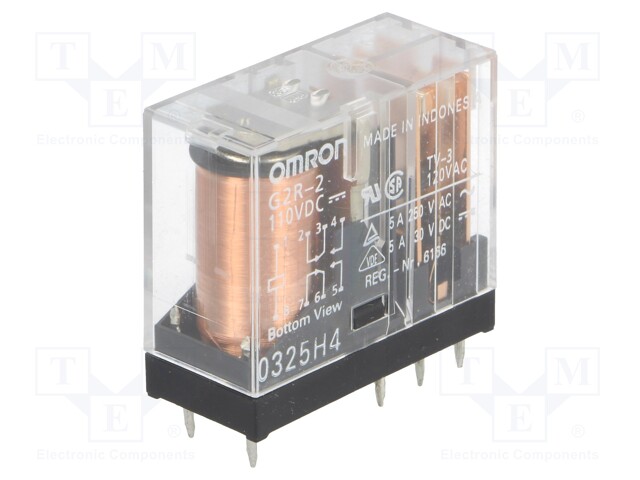

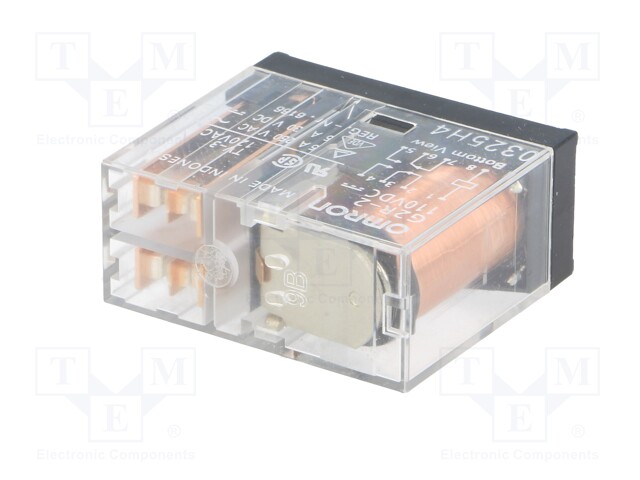

Relay: electromagnetic; DPDT; Ucoil: 110VDC; 5A/250VAC; 5A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G2R-2 110VDC
    Tootja: OMRON OCB
    Tootja tootekood: G2R-2 110VDC
    • Mounting
    • Operating temperature
    • Leads
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Enclosure description
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    5,84 € 5,84 € (KM-TA) 5.84 EUR

    5,84 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 110VDC; 5A/250VAC; 5A/30VDC

    Mounting PCB
    Operating temperature -40...70°C
    Leads for PCB
    Terminal pitch 5mm
    Body dimensions 29x13x25.5mm
    Switched voltage ≤ 125V DC, ≤ 380V AC
    Coil resistance 18.86kΩ
    Rated coil voltage 110V DC
    Contacts configuration DPDT
    DC contacts rating @R 5A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 5A / 250V AC
    Enclosure description standard seal
    Contact current max. 5A
    Relay variant miniature, monostable
    Type of relay electromagnetic
    Operate time 15ms
    Release time 5ms
    Coil current 5.3mA
