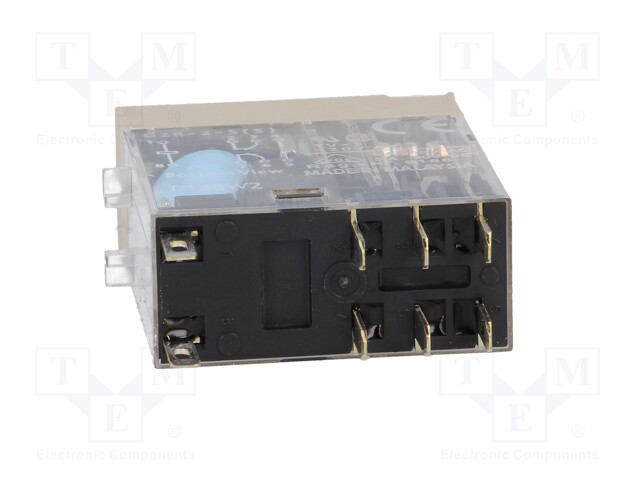

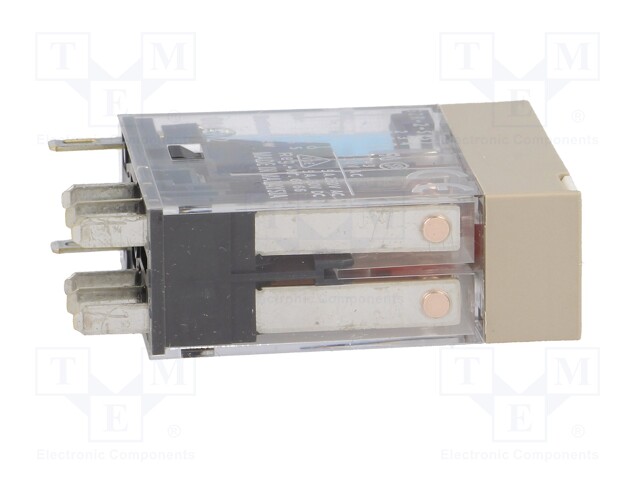

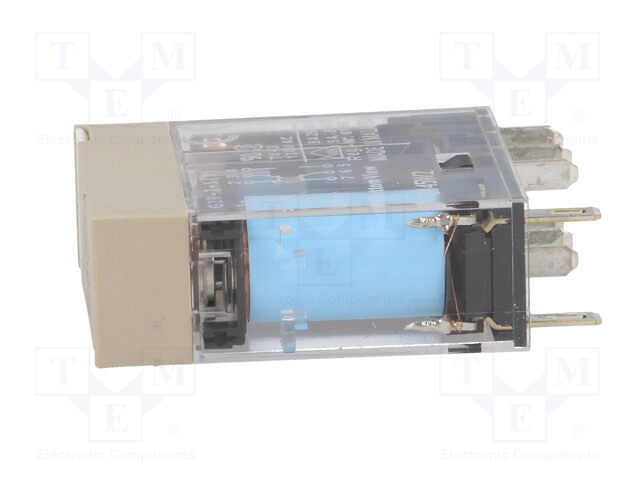

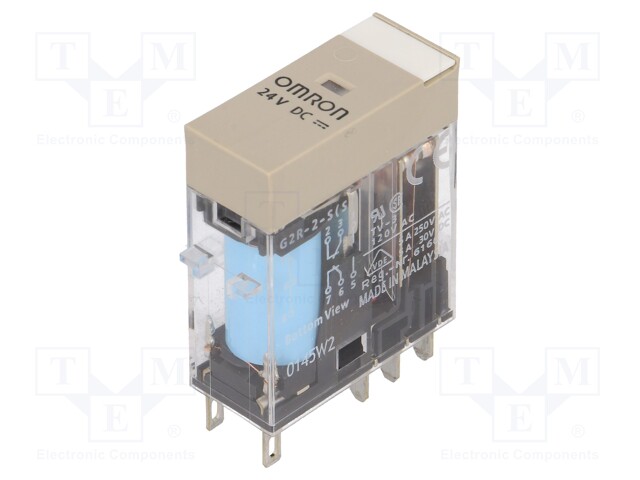

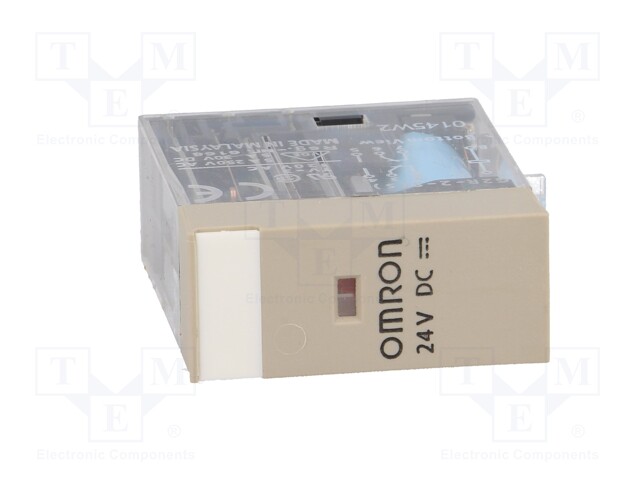

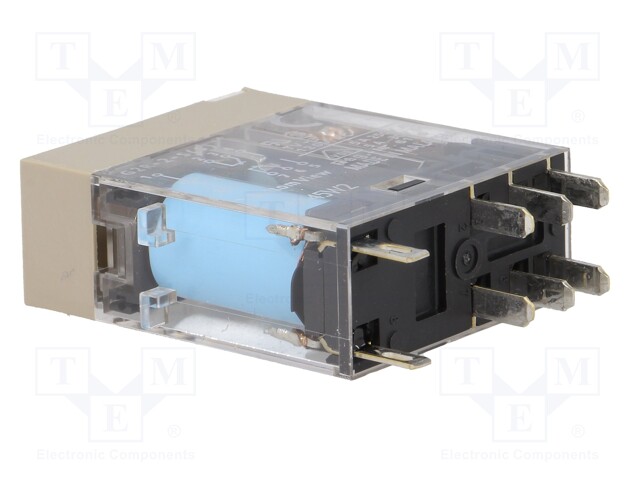

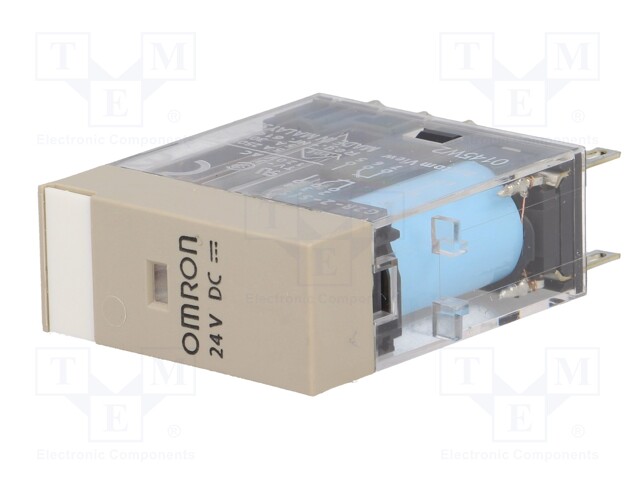

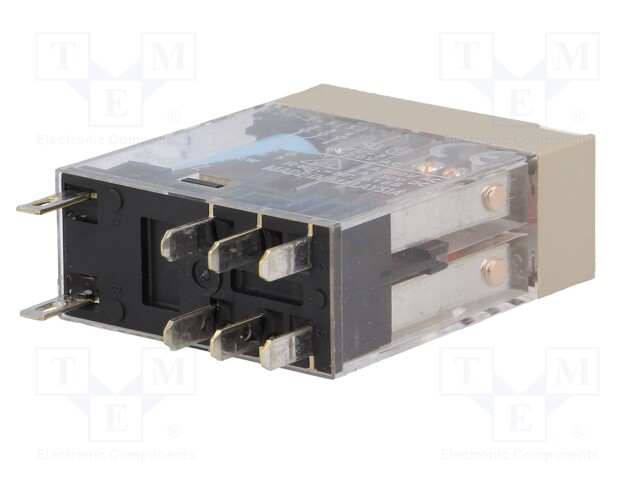

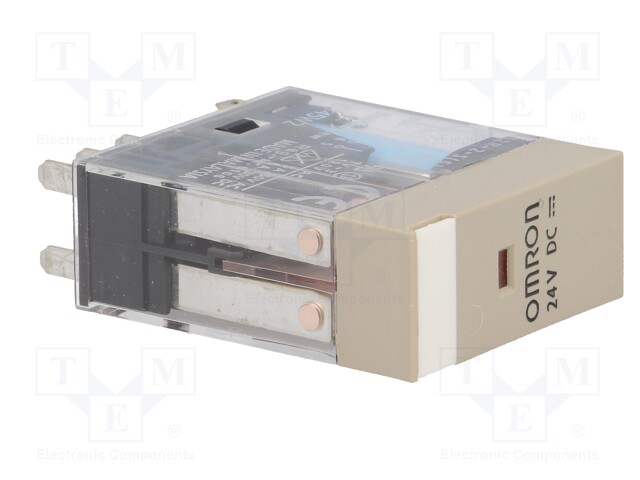

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 5A/250VAC; 5A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G2R-2-S 24VDC (S)
    Tootja: OMRON
    Tootja tootekood: G2R-2-S 24VDC (S)
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Switching capacity
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    5,60 € 5,60 € (KM-TA) 5.6000000000000005 EUR

    5,60 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 24VDC; 5A/250VAC; 5A/30VDC

    Mounting socket
    Operating temperature -40...70°C
    Terminal pitch 5mm
    Body dimensions 29x13x35.5mm
    Switched voltage ≤ 125V DC, ≤ 380V AC
    Switching capacity 150W, 1.25kVA
    Coil resistance 1.1kΩ
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 5A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant industrial, miniature
    Type of relay electromagnetic
    Coil power consumption 530mW
    Operate time 15ms
    Release time 5ms
    Coil current 21.8mA
