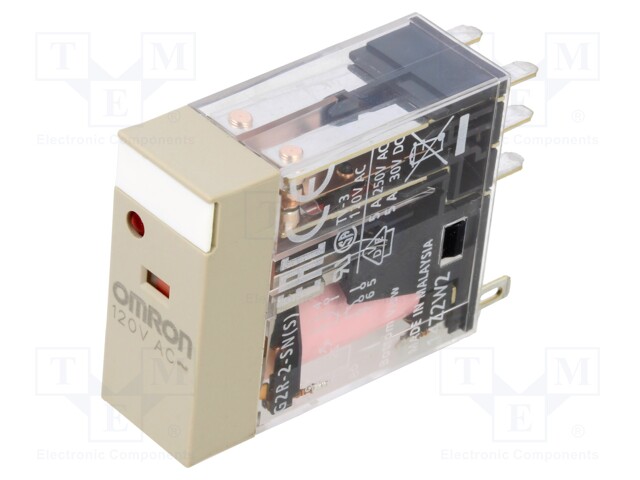

Relay: electromagnetic; DPDT; Ucoil: 120VAC; Icontacts max: 5A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G2R-2-SN 120VAC (S)-1
    Tootja: OMRON
    Tootja tootekood: G2R-2-SN 120VAC (S)
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Indication
    • Switching capacity
    • Switching capacity
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    21,48 € 21,48 € (KM-TA) 21.48 EUR

    21,48 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 120VAC; Icontacts max: 5A

    Mounting socket
    Operating temperature -40...70°C
    Terminal pitch 5mm

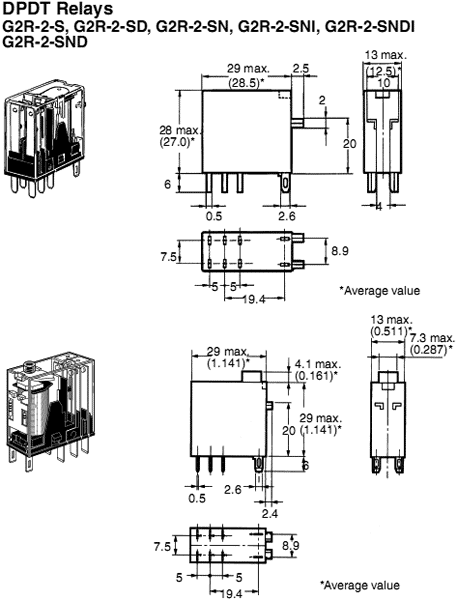

    Body dimensions 29x13x35.5mm
    Switched voltage ≤ 125V DC, ≤ 380V AC
    Indication LED
    Switching capacity 150W, 1.25kVA
    Contacts configuration DPDT
    DC contacts rating @R 5A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant industrial, miniature
    Type of relay electromagnetic
    Coil power consumption 0.9VA
    Operate time 15ms
    Release time 10ms
    Coil current 7.5mA
