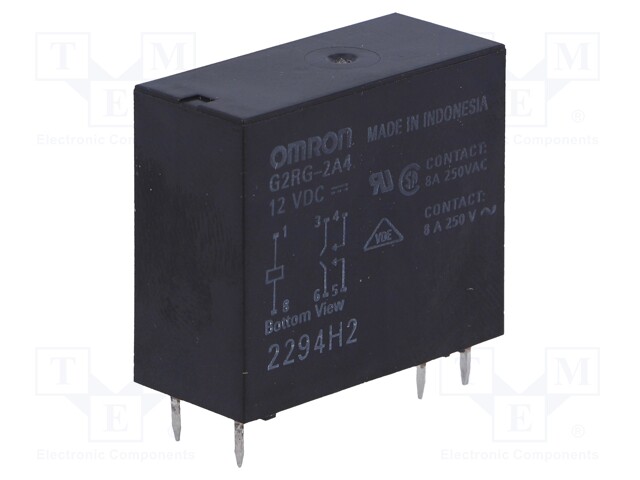

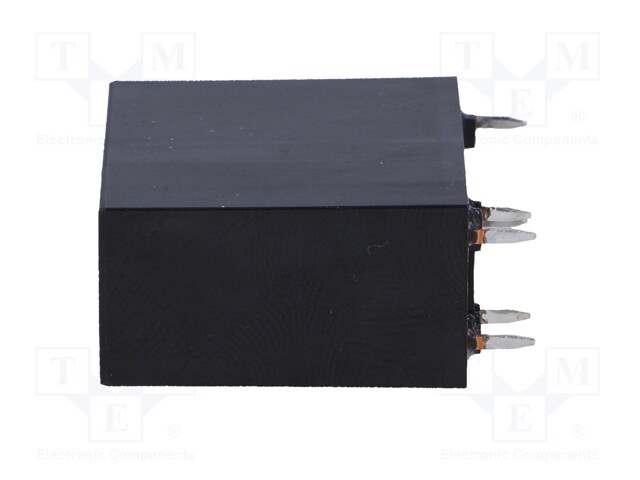

Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; 8A/250VAC; 8A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G2RG-2A4 12VDC
    Tootja: OMRON OCB
    Tootja tootekood: G2RG-2A4 12VDC
    • Mounting
    • Operating temperature
    • Leads
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Enclosure description
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    4,23 € 4,23 € (KM-TA) 4.23 EUR

    4,23 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPST-NO; Ucoil: 12VDC; 8A/250VAC; 8A/24VDC

    Mounting PCB
    Operating temperature -40...70°C
    Leads for PCB
    Terminal pitch 5mm
    Body dimensions 29x13.5x25.5mm
    Switched voltage ≤ 125V DC, ≤ 380V AC
    Coil resistance 180Ω
    Rated coil voltage 12V DC
    Contacts configuration DPST-NO
    DC contacts rating @R 8A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Enclosure description hermetic seal
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 15ms
    Release time 5ms
    Coil current 66.6mA
