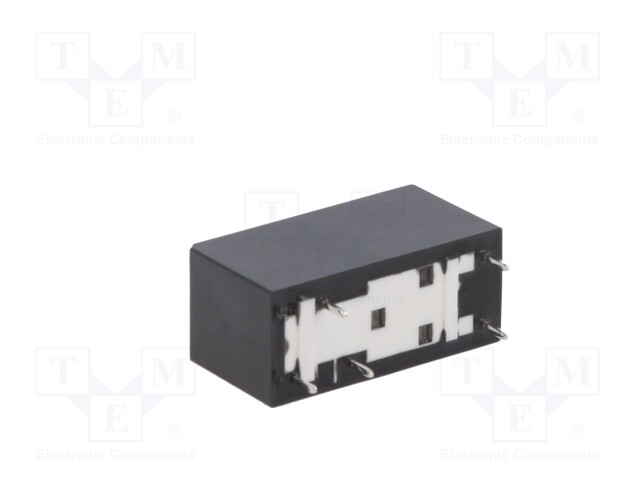

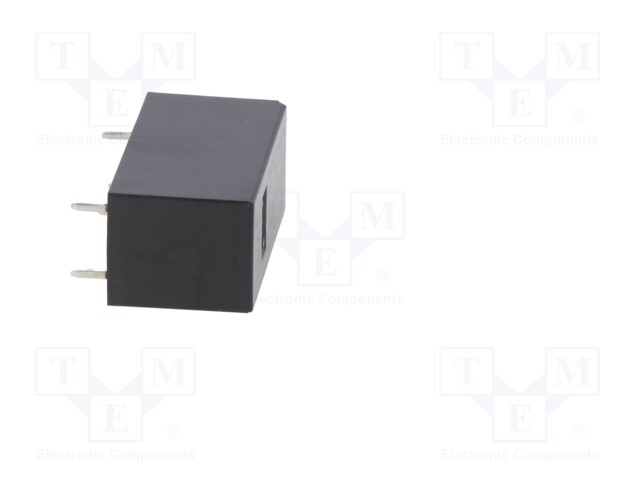

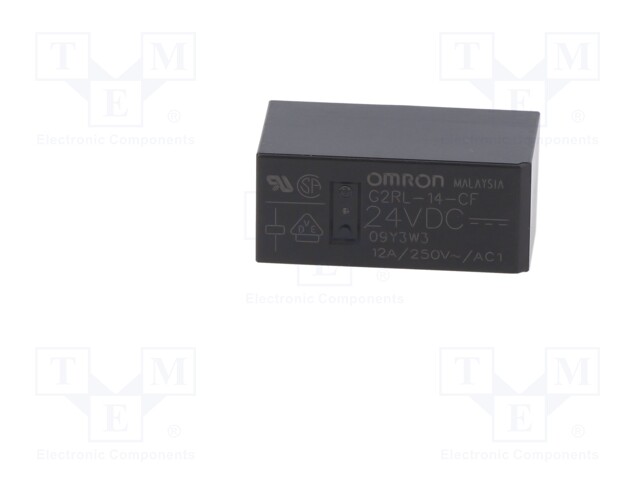

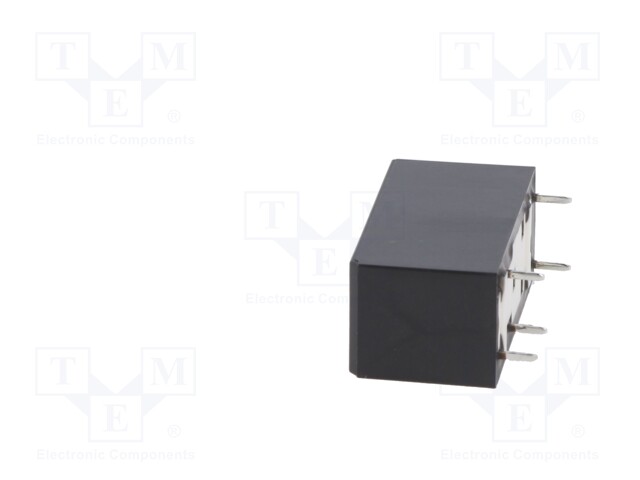

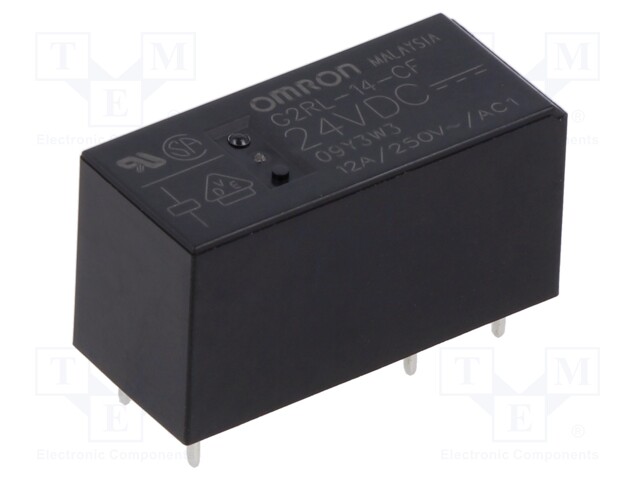

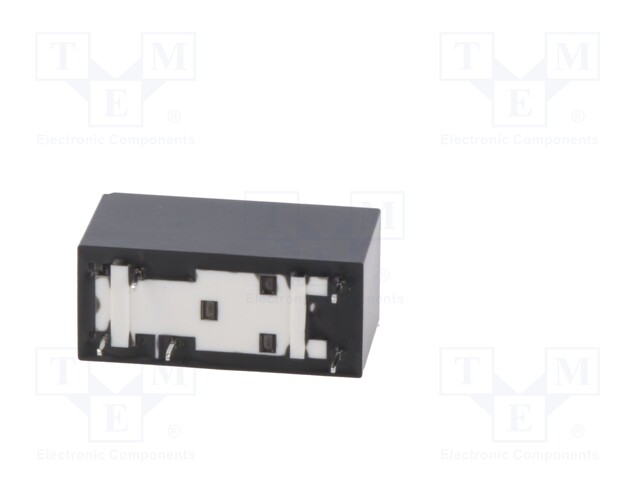

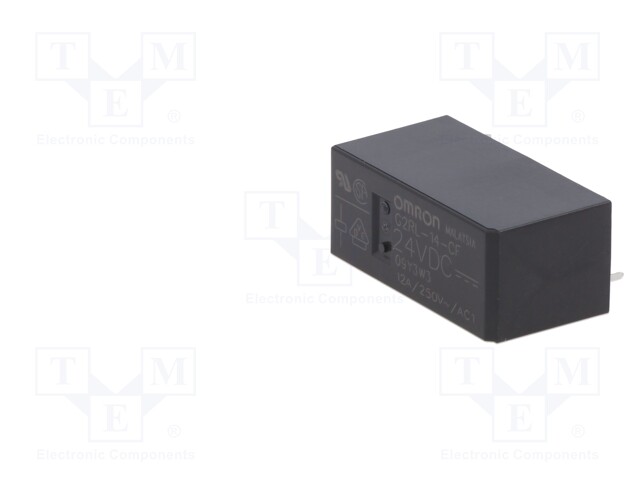

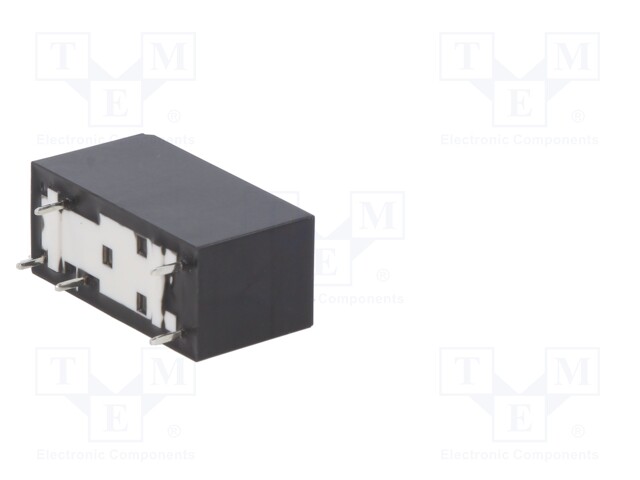

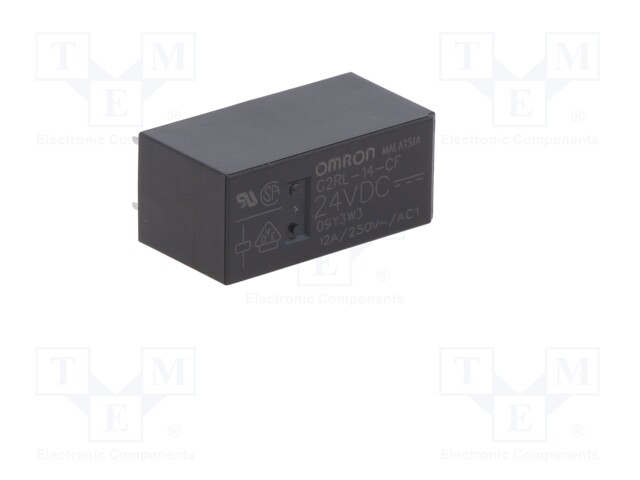

Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 12A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G2RL-14-CF-DC24
    Tootja: OMRON ELECTRONIC COMPONENTS
    Tootja tootekood: G2RL-14-CF-DC24
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Enclosure description
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    4,25 € 4,25 € (KM-TA) 4.25 EUR

    4,25 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; Icontacts max: 12A

    Mounting PCB
    Operating temperature -40...85°C
    Leads for PCB
    Contact material AgSnO<sub>2</sub>
    Body dimensions 29x12.7x15.7mm
    Mechanical durability 20000000cycles
    Switched voltage ≤ 300V DC, ≤ 440V AC
    Coil resistance 1.44kΩ
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 12A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 12A / 250V AC
    Enclosure description hermetic seal
    Contact current max. 12A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 15ms
    Release time 5ms
    Coil current 16.7mA
