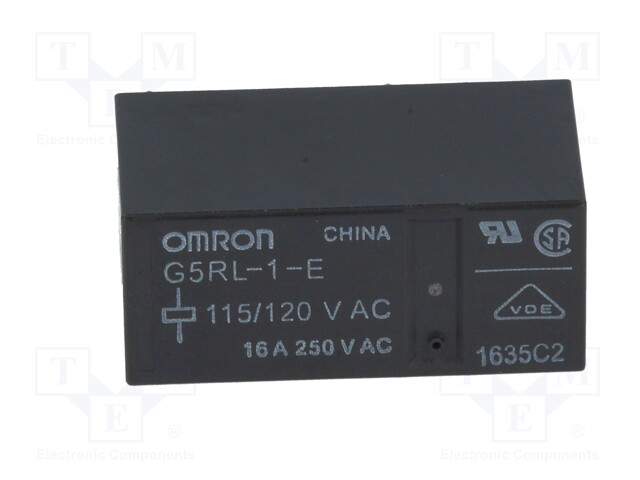

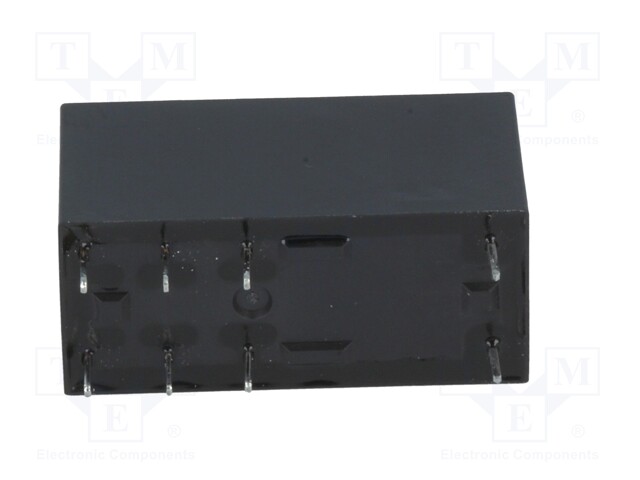

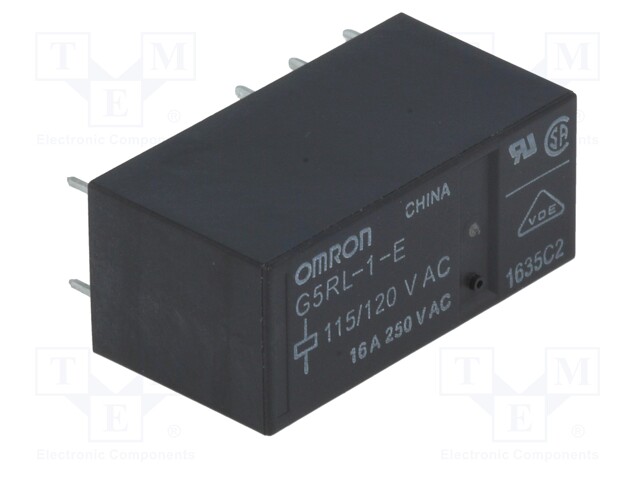

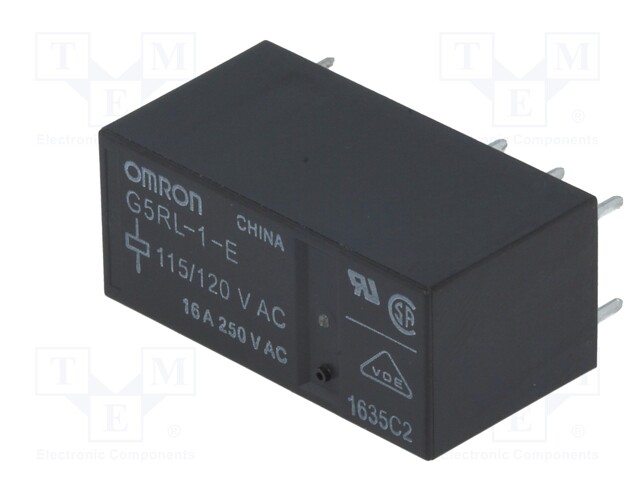

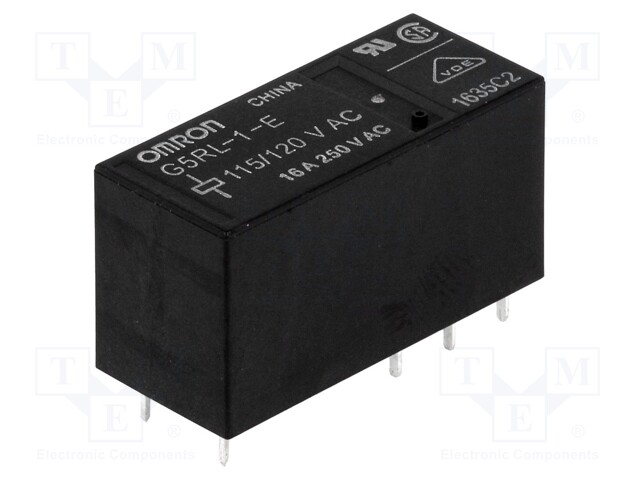

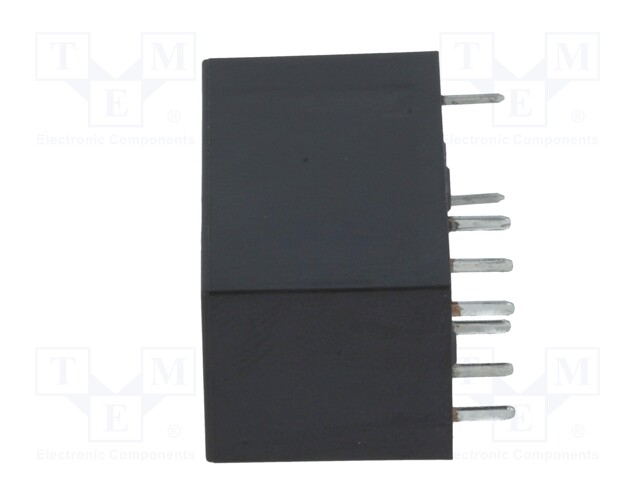

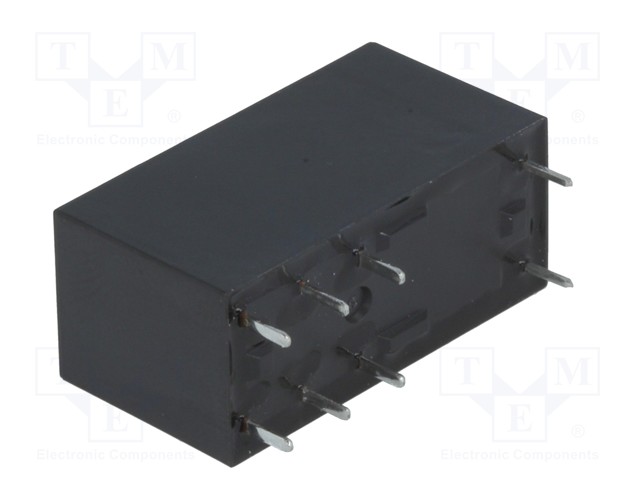

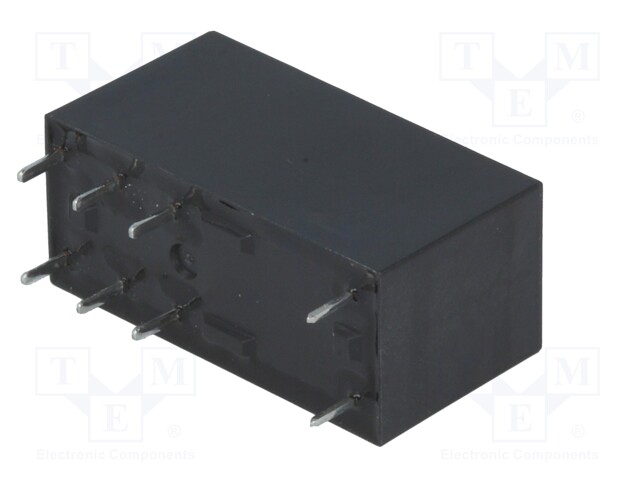

Relay: electromagnetic; SPDT; Ucoil: 115VAC; 16A/250VAC; 16A/24VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G5RL-1-E115/120AC
    Tootja: OMRON OCB
    Tootja tootekood: G5RL-1-E115/120AC
    • Mounting
    • Operating temperature
    • Leads
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    13,01 € 13,01 € (KM-TA) 13.01 EUR

    13,01 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 115VAC; 16A/250VAC; 16A/24VDC

    Mounting PCB
    Operating temperature -40...85°C
    Leads for PCB
    Terminal pitch 5mm
    Body dimensions 29x12.7x15.7mm
    Switched voltage ≤ 24V DC, ≤ 250V AC
    Coil resistance 11.6kΩ
    Contacts configuration SPDT
    DC contacts rating @R 16A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 0.67VA
    Operate time 15ms
    Release time 20ms
    Coil current 5.85mA
