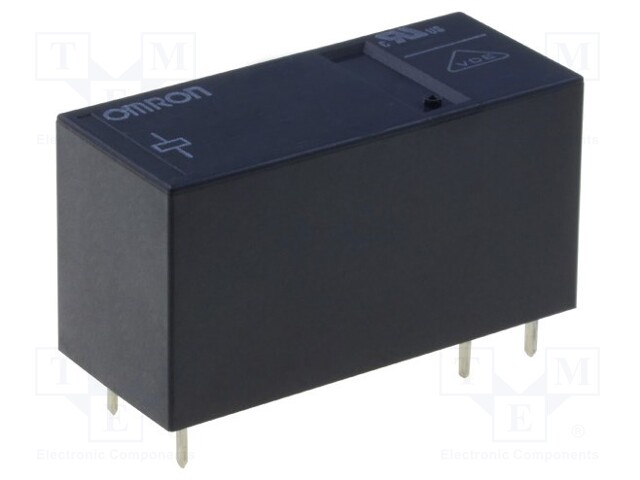

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A/250VAC; 400mW

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G5RL-1A-E-HR 12VDC
    Tootja: OMRON OCB
    Tootja tootekood: G5RL-1A-E-HR 12VDC
    • Mounting
    • Operating temperature
    • Leads
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Max surge current
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    3,99 € 3,99 € (KM-TA) 3.99 EUR

    3,99 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A/250VAC; 400mW

    Mounting PCB
    Operating temperature -40...85°C
    Leads for PCB
    Terminal pitch 5mm
    Body dimensions 29x12.7x15.7mm
    Switched voltage ≤ 24V DC, ≤ 250V AC
    Max surge current 50A
    Coil resistance 360Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 16A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant inrush, miniature
    Type of relay electromagnetic
    Coil power consumption 400mW
    Operate time 15ms
    Release time 5ms
    Coil current 33.3mA
