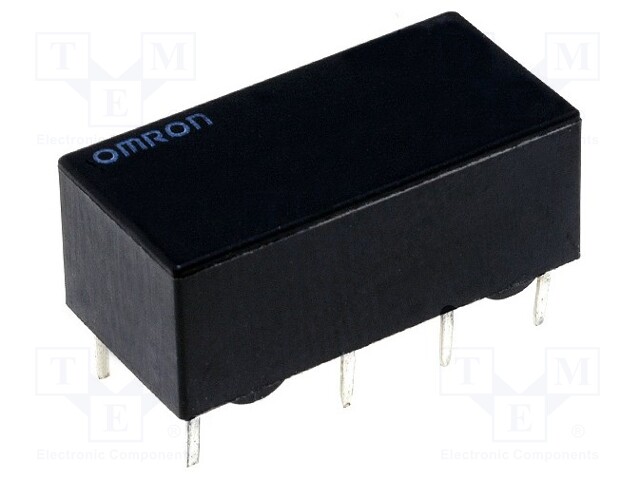

Relay: electromagnetic; DPDT; Ucoil: 24VDC; 0.5A/125VAC; 2A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G6A-274P-ST-US 24VDC
    Tootja: OMRON OCB
    Tootja tootekood: G6A-274P-ST-US 24VDC
    • Mounting
    • Operating temperature
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    5,25 € 5,25 € (KM-TA) 5.25 EUR

    5,25 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; DPDT; Ucoil: 24VDC; 0.5A/125VAC; 2A/30VDC

    Mounting PCB
    Operating temperature -40...70°C
    Contact material Ag
    Terminal pitch 5mm
    Body dimensions 20.2x10.1x8.4mm
    Switched voltage ≤ 220V DC, ≤ 250V AC
    Coil resistance 2.88kΩ
    Rated coil voltage 24V DC
    Contacts configuration DPDT
    DC contacts rating @R 2A / 30V DC
    Contact resistance 50mΩ
    AC contacts rating @R 500mA / 125V AC
    Contact current max. 2A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 5ms
    Release time 5ms
    Coil current 16.7mA
