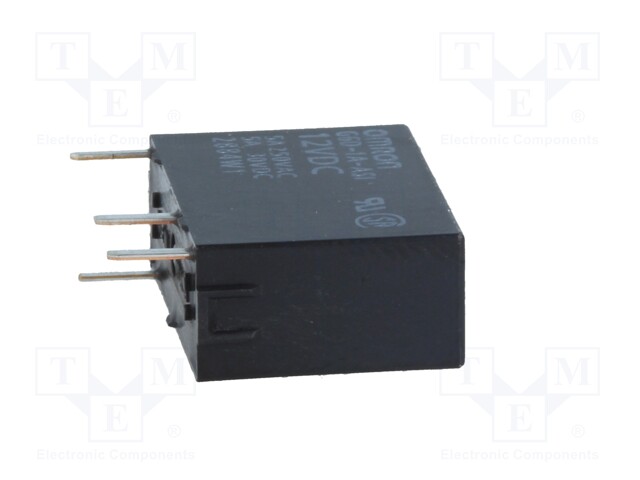

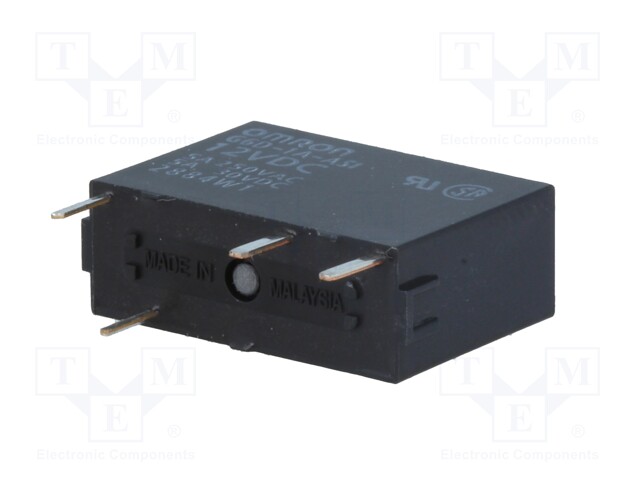

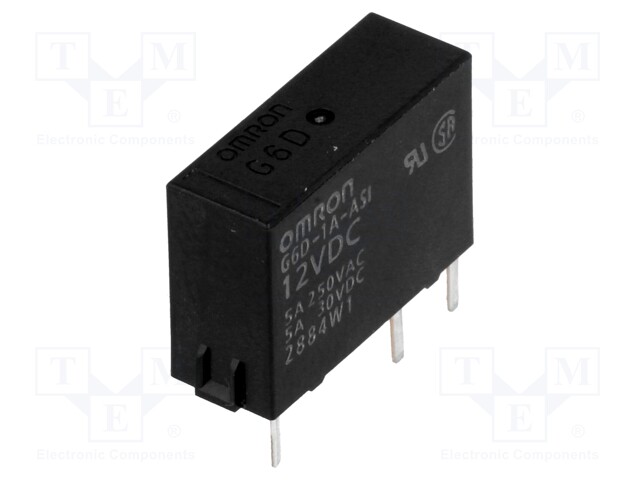

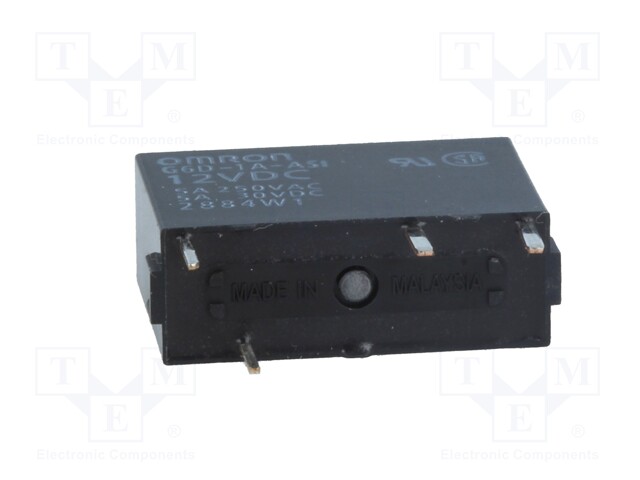

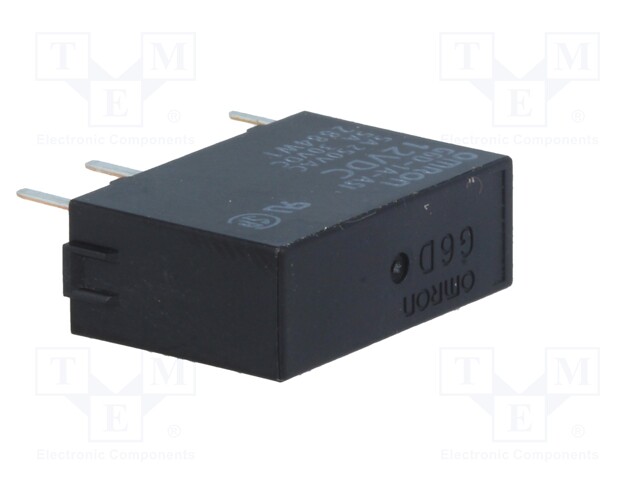

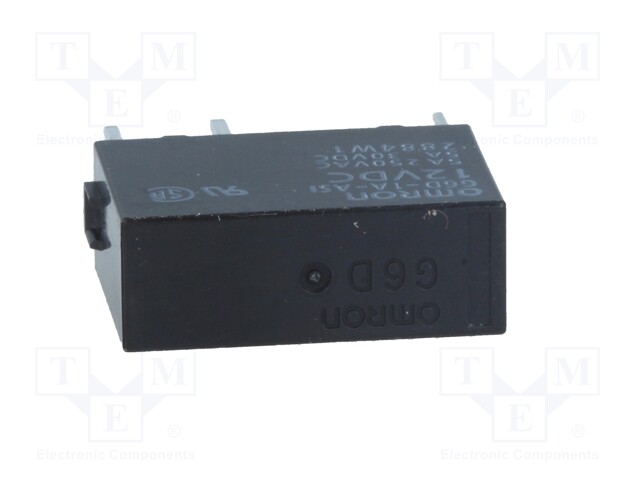

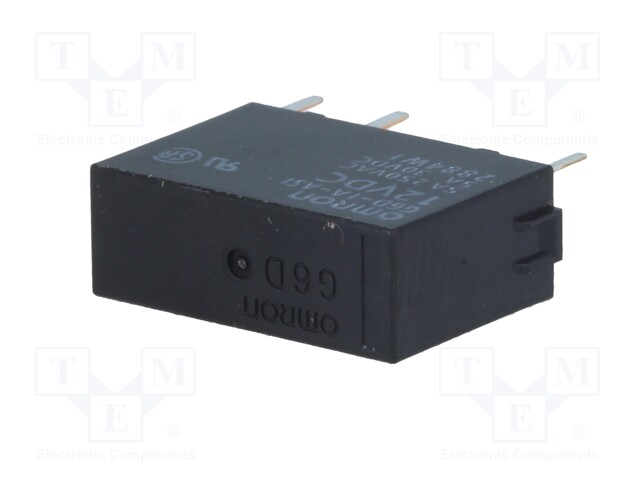

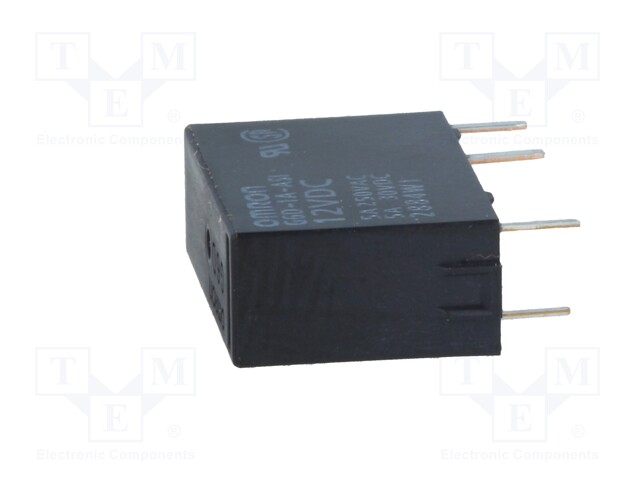

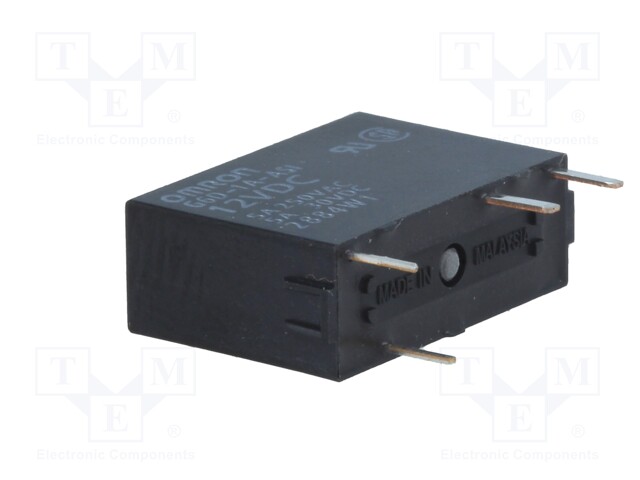

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A/250VAC; 5A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G6D-1A-ASI 12VDC
    Tootja: OMRON OCB
    Tootja tootekood: G6D-1A-ASI 12VDC
    • Mounting
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    3,96 € 3,96 € (KM-TA) 3.96 EUR

    3,96 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 5A/250VAC; 5A/30VDC

    Mounting PCB, socket
    Operating temperature -25...70°C
    Terminal pitch 5.08mm
    Body dimensions 17.5x6.5x12.5mm
    Switched voltage ≤ 30V DC, ≤ 250V AC
    Coil resistance 720Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 5A / 250V AC
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 200mW
    Operate time 10ms
    Release time 5ms
    Coil current 16.7mA
