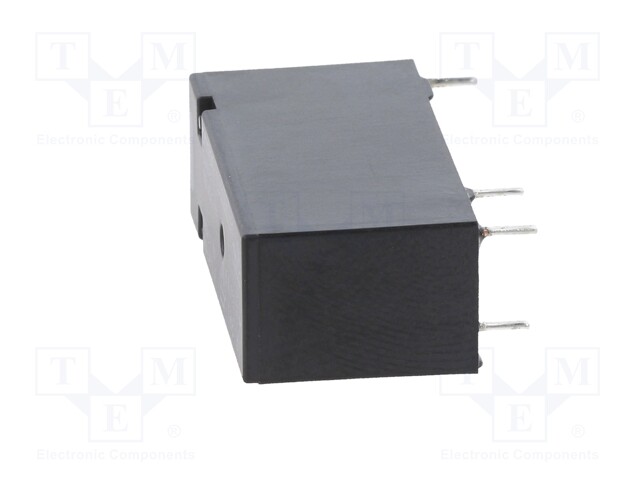

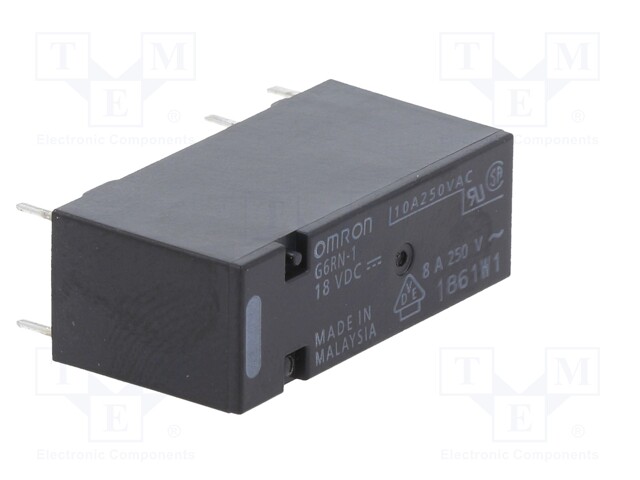

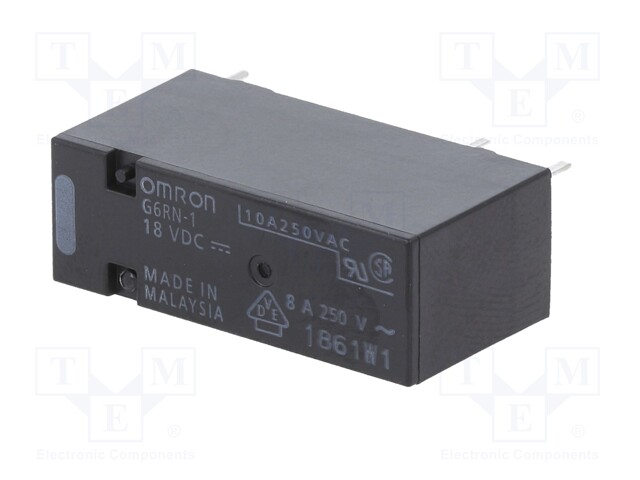

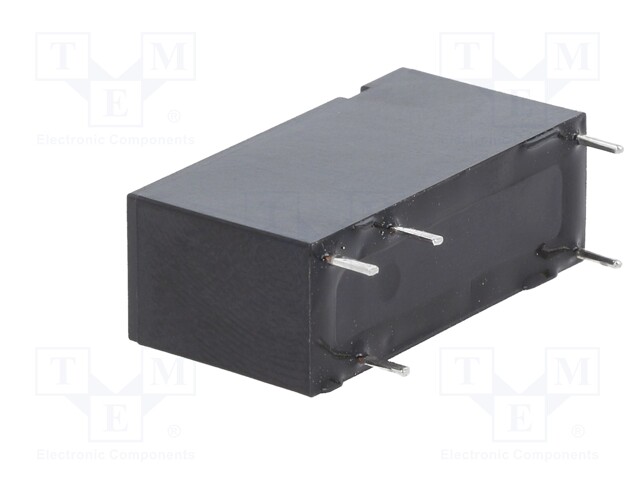

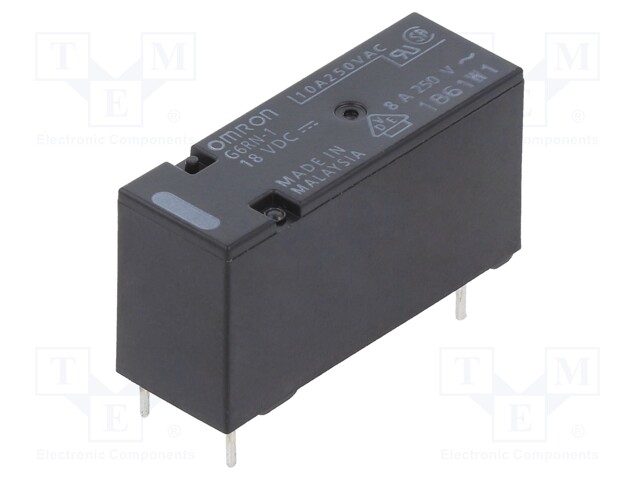

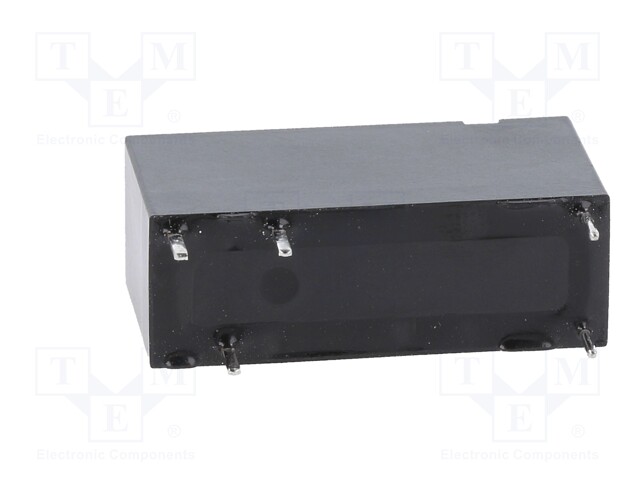

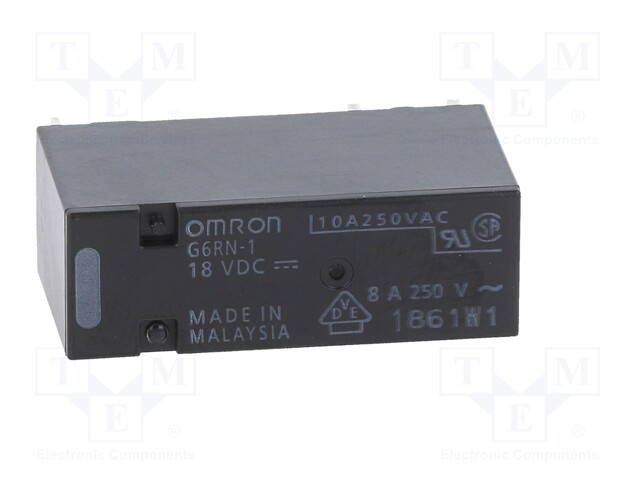

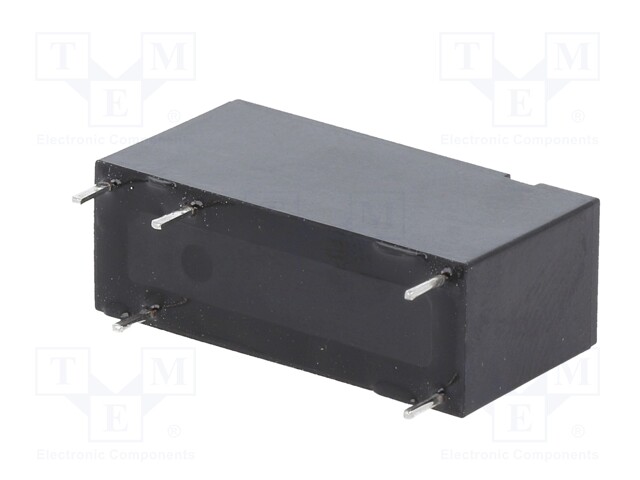

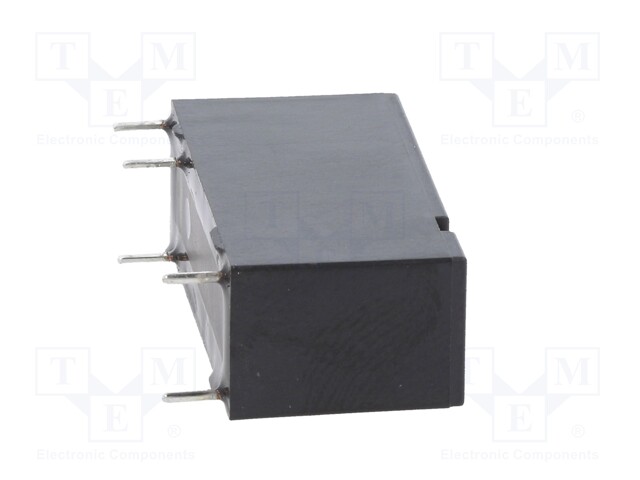

Relay: electromagnetic; SPDT; Ucoil: 18VDC; 8A/250VAC; 5A/30VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G6RN-1 18DC
    Tootja: OMRON OCB
    Tootja tootekood: G6RN-1 18DC
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    3,32 € 3,32 € (KM-TA) 3.3200000000000003 EUR

    3,32 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 18VDC; 8A/250VAC; 5A/30VDC

    Mounting PCB
    Operating temperature -40...85°C
    Leads for soldering
    Contact material Ag/Au
    Terminal pitch 3.2mm
    Body dimensions 28.5x10x15mm
    Switched voltage ≤ 30V DC, ≤ 250V AC
    Rated coil voltage 18V DC
    Contacts configuration SPDT
    DC contacts rating @R 5A / 30V DC
    Contact resistance 100MΩ
    AC contacts rating @R 8A / 250V AC
    Contact current max. 8A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 220mW
    Operate time 15ms
    Release time 5ms
    Coil current 12.2mA
