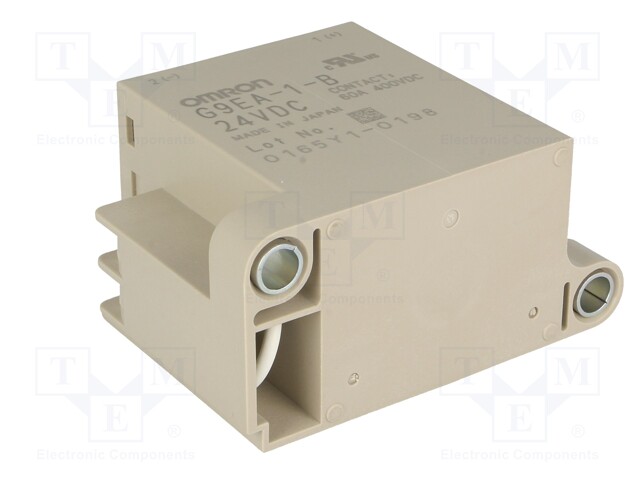

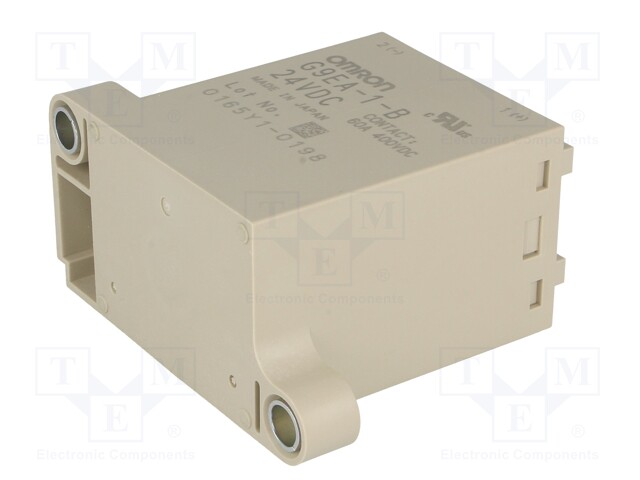

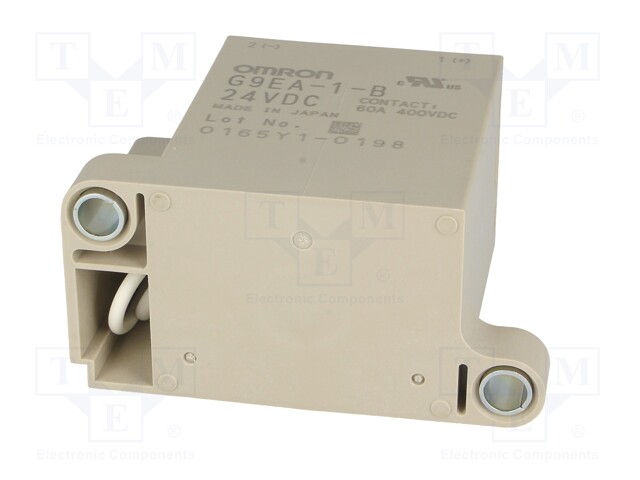

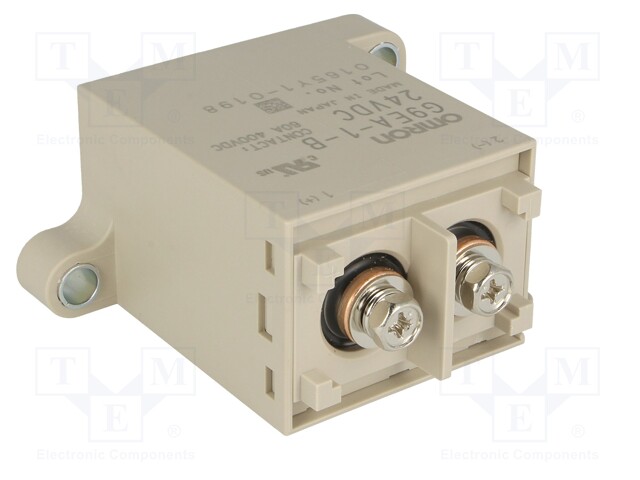

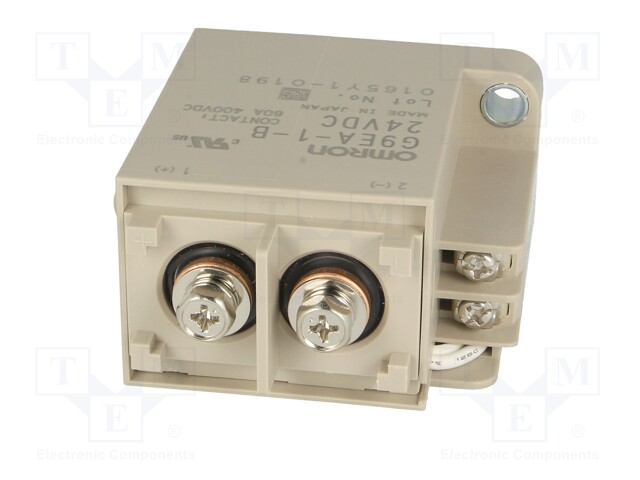

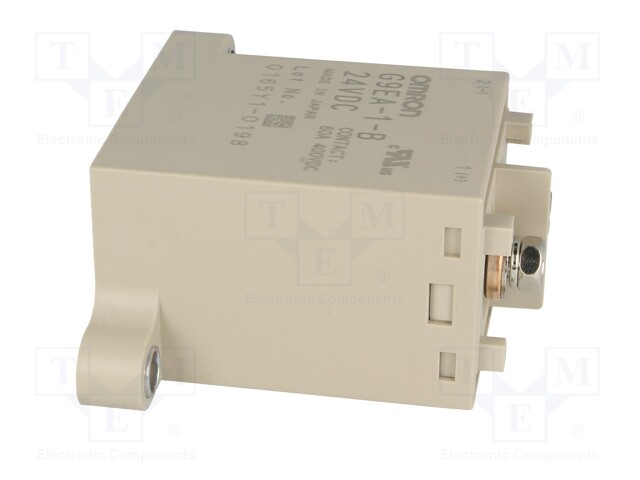

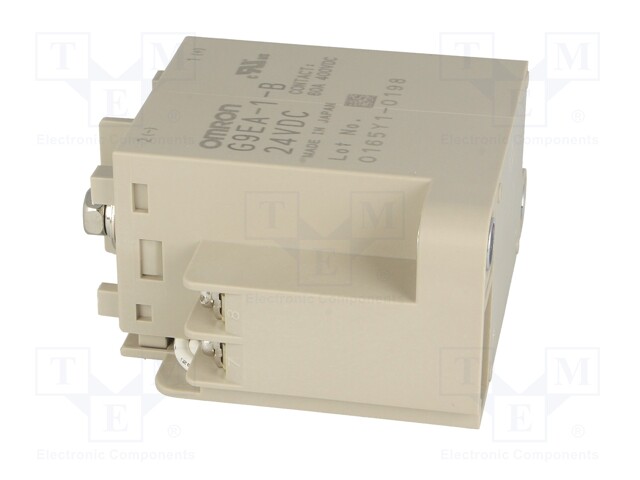

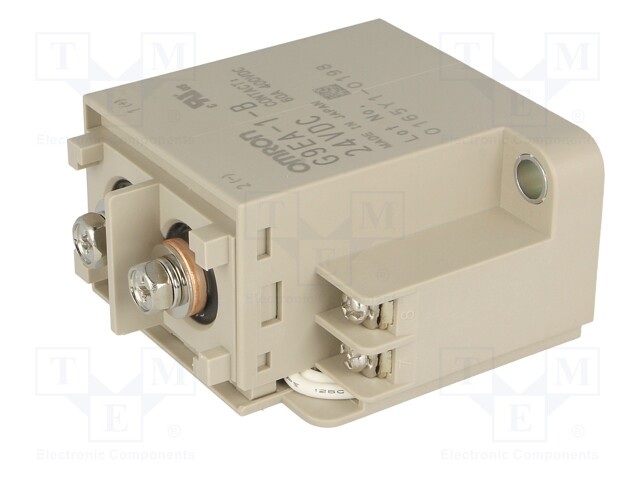

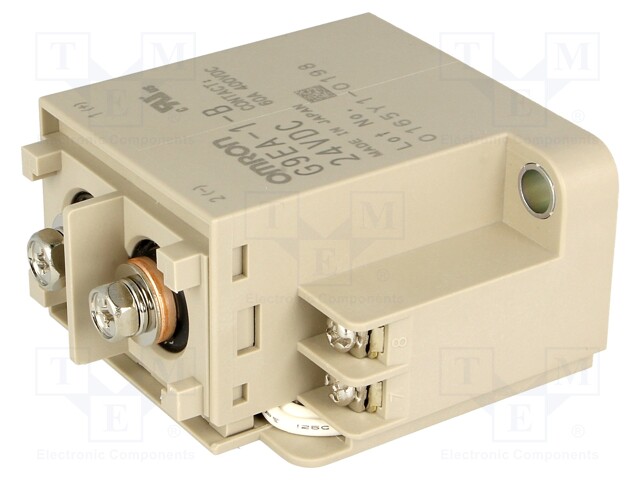

Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 100A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G9EA-1-B 24VDC
    Tootja: OMRON ELECTRONIC COMPONENTS
    Tootja tootekood: G9EA-1-B 24VDC
    • Mounting
    • Operating temperature
    • Leads
    • Leads
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 24VDC; Icontacts max: 100A

    Mounting on panel
    Operating temperature -40...70°C
    Leads M3.5 screws, M5 screws
    Body dimensions 73x36x67.2mm
    Switched voltage ≤ 400V DC
    Coil resistance 115.2Ω
    Rated coil voltage 24V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 60A / 400V DC
    Contact resistance 30mΩ
    Contact current max. 100A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 5W
    Operate time 50ms
    Release time 30ms
    Coil current 208mA
