Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 60A

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: G9EN-1 12VDC
    Tootja: OMRON ELECTRONIC COMPONENTS
    Tootja tootekood: G9EN-1 12VDC
    • Mounting
    • Operating temperature
    • Leads
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    130,90 € 130,90 € (KM-TA) 130.9 EUR

    130,90 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; Icontacts max: 60A

    Mounting on panel
    Operating temperature -40...85°C
    Leads M4 screws

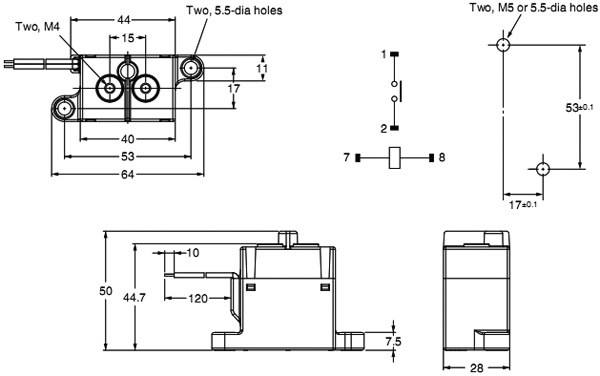

    Body dimensions 64x28x50mm
    Switched voltage ≤ 400V DC
    Coil resistance 28.8Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 60A / 400V DC
    Contact current max. 60A
    Relay variant power
    Type of relay electromagnetic
    Coil power consumption 5W
    Operate time 40ms
    Release time 20ms
    Coil current 417mA
