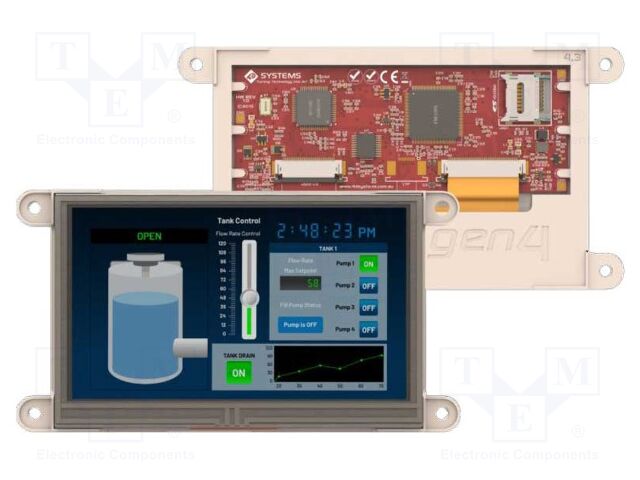

Display: TFT; 4.3"; 480x272; Window dimensions: 95.04x53.86mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: GEN4-ULCD-43DT-SB
    Tootja: 4D Systems
    Tootja tootekood: GEN4-ULCD-43DT-SB
    • Supply voltage
    • Operating temperature
    • Kind of connector
    • Interface
    • Interface
    • Interface
    • Interface
    • Type of pin configuration
    • Microcontroller
    • Display resolution
    • Display features
    • Display features
    • Display features
    • Display features
    • Screen size
    • Kind of display
    • Contrast
    • Window dimensions (H x W)
    • Type of display
    • Flash memory organisation

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Display: TFT; 4.3"; 480x272; Window dimensions: 95.04x53.86mm

    Supply voltage 4...5.5V
    Operating temperature -10...60°C
    Kind of connector FFC/FPC
    Interface GPIO, I2C x3, serial, SPI x3
    Type of pin configuration 1x30
    Microcontroller DIABLO16
    Display resolution 480x272
    Display features microSD card reader, pulse output, PWM output, quadrature input
    Screen size 4.3"
    Kind of display graphical
    Contrast 500:1
    Window dimensions (H x W) 95.04x53.86mm
    Type of display TFT
    Flash memory organisation 6x32kB
