Needle-like test probe; Operational spring compression: 4.3mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: GKS-075 303 120 A 1502 M
    Tootja: INGUN
    Tootja tootekood: GKS-075 303 120 A 1502 M
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Maksimum spring compression

    6,24 € 6,24 € (KM-TA) 6.24 EUR

    6,24 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Needle-like test probe; Operational spring compression: 4.3mm

    Mounting screw-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material CuBe
    Max. contact resistance 20mΩ
    Current rating 3A

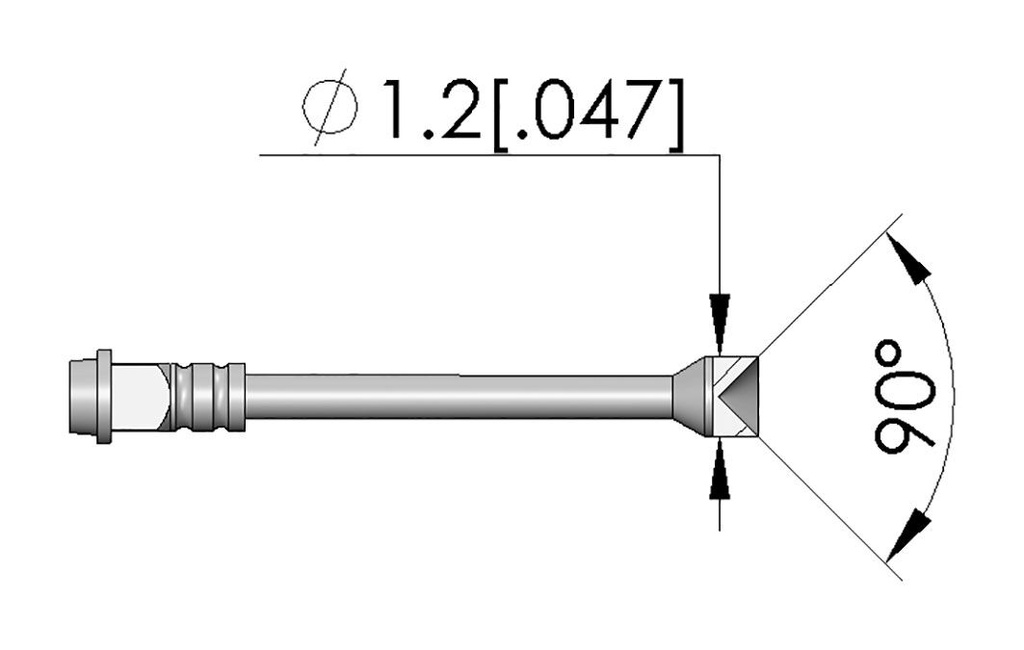

    Tip diameter 1.2mm
    Type of test accessories test probe
    Maksimum spring compression 6.35mm
