Test needle; GKS-100

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: GKS-100 306 200 A 2000 C
    Tootja: INGUN
    Tootja tootekood: GKS-100 306 200 A 2000 C
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance
    • Length
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Maksimum spring compression

    4,20 € 4,20 € (KM-TA) 4.2 EUR

    4,20 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Test needle; GKS-100

    Mounting push-in
    Operating temperature -100...200°C
    Contact plating gold-plated
    Contact material CuBe
    Max. contact resistance 100mΩ

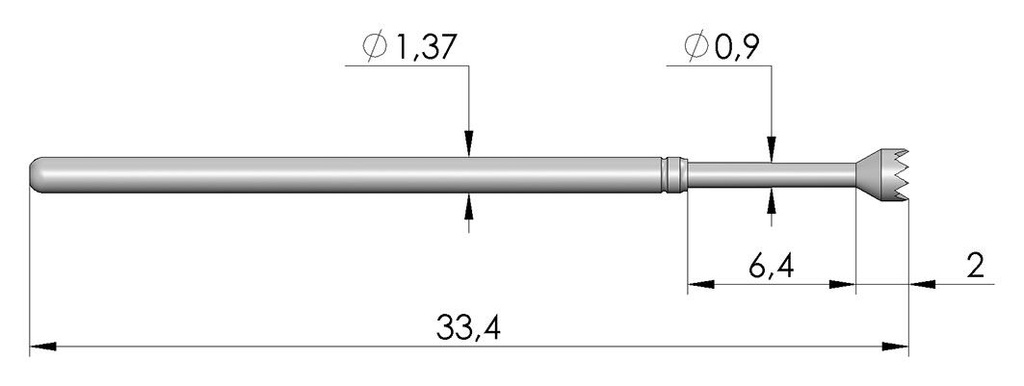

    Length 33.4mm
    Current rating 8A

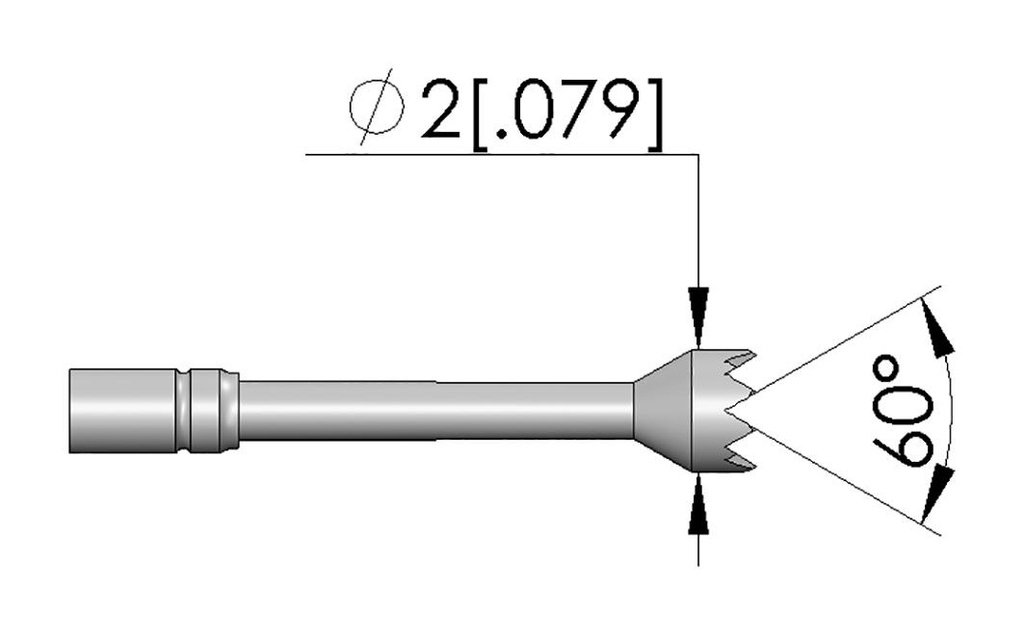

    Tip diameter 2mm
    Type of test accessories test probe
    Maksimum spring compression 6.35mm
