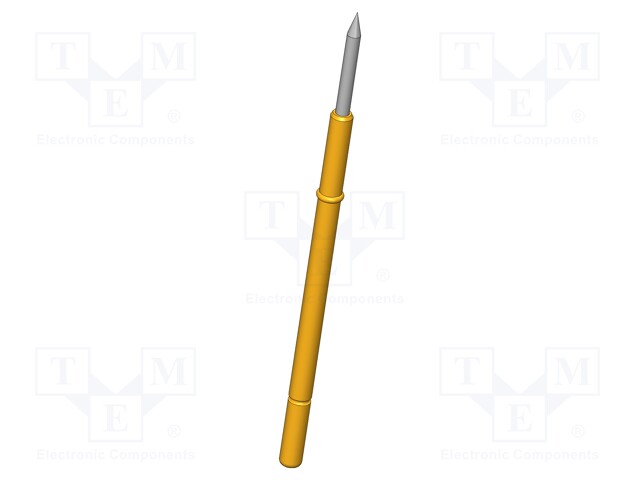

Test needle; Operational spring compression: 4mm; 5A; Ø: 1mm; 0.8N

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: GKS-112 201 100 R 0807
    Tootja: INGUN
    Tootja tootekood: GKS-112 201 100 R 0807
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance
    • Length
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Operational spring compression
    • Maksimum spring compression

    6,72 € 6,72 € (KM-TA) 6.72 EUR

    6,72 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Test needle; Operational spring compression: 4mm; 5A; Ø: 1mm; 0.8N

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating rhodium plated
    Contact material steel
    Max. contact resistance 20mΩ

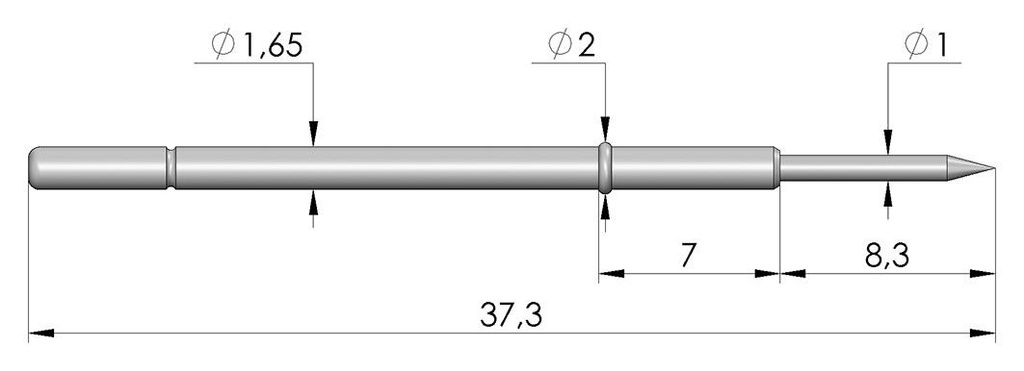

    Length 37.3mm
    Current rating 5A

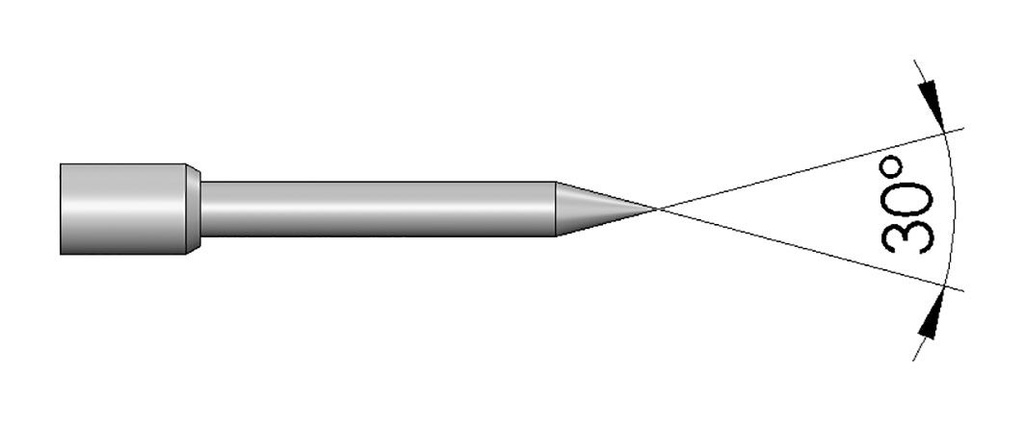

    Tip diameter 1mm
    Type of test accessories test probe
    Operational spring compression 4mm
    Maksimum spring compression 8mm
