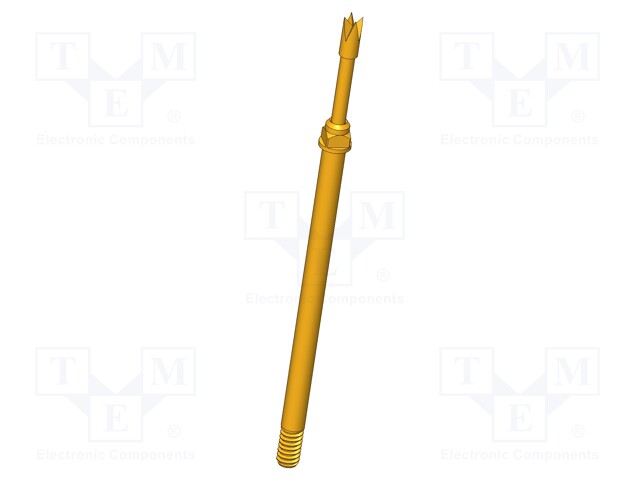

Test needle; Operational spring compression: 4mm; 5A; Ø: 1.3mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: GKS-112 214 130 A 5002 M
    Tootja: INGUN
    Tootja tootekood: GKS-112 214 130 A 5002 M
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Operational spring compression
    • Maksimum spring compression

    4,80 € 4,80 € (KM-TA) 4.8 EUR

    4,80 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Test needle; Operational spring compression: 4mm; 5A; Ø: 1.3mm

    Mounting screw-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material steel
    Max. contact resistance 20mΩ
    Current rating 5A
    Tip diameter 1.3mm
    Type of test accessories test probe
    Operational spring compression 4mm
    Maksimum spring compression 5.3mm
