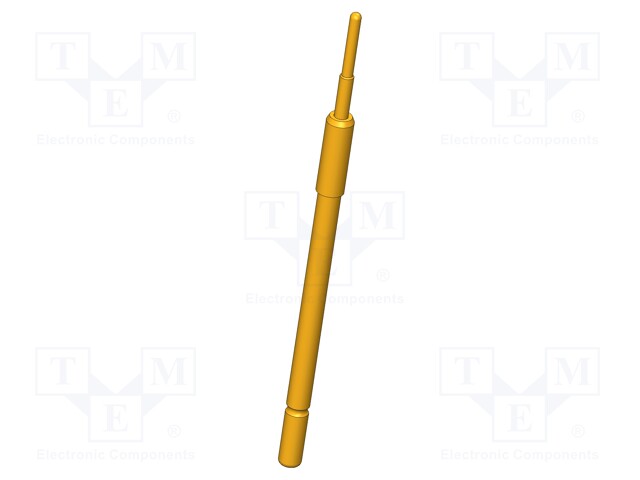

Test needle; Operational spring compression: 4mm; 8A; Ø: 0.8mm

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: GKS-112 305 080 A 1506
    Tootja: INGUN
    Tootja tootekood: GKS-112 305 080 A 1506
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance
    • Length
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Operational spring compression
    • Maksimum spring compression
    • Blade tip shape

    3,24 € 3,24 € (KM-TA) 3.24 EUR

    3,24 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Test needle; Operational spring compression: 4mm; 8A; Ø: 0.8mm

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material CuBe
    Max. contact resistance 20mΩ

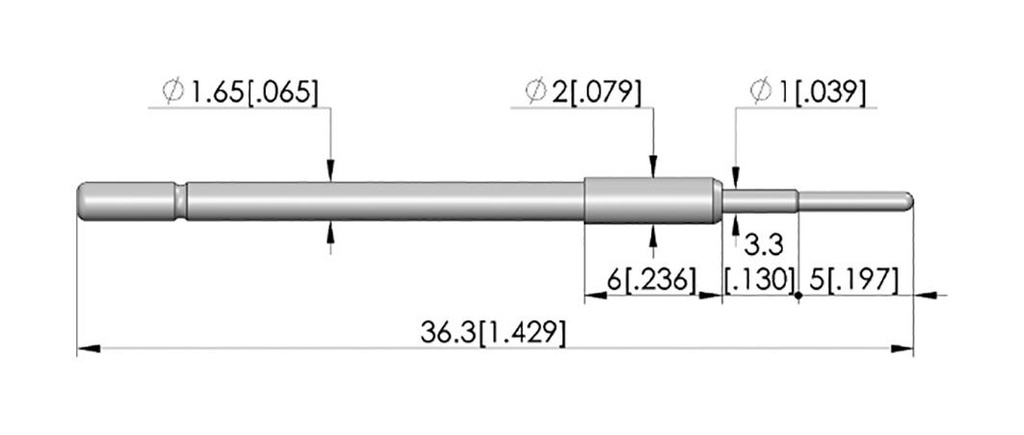

    Length 36.3mm
    Current rating 8A

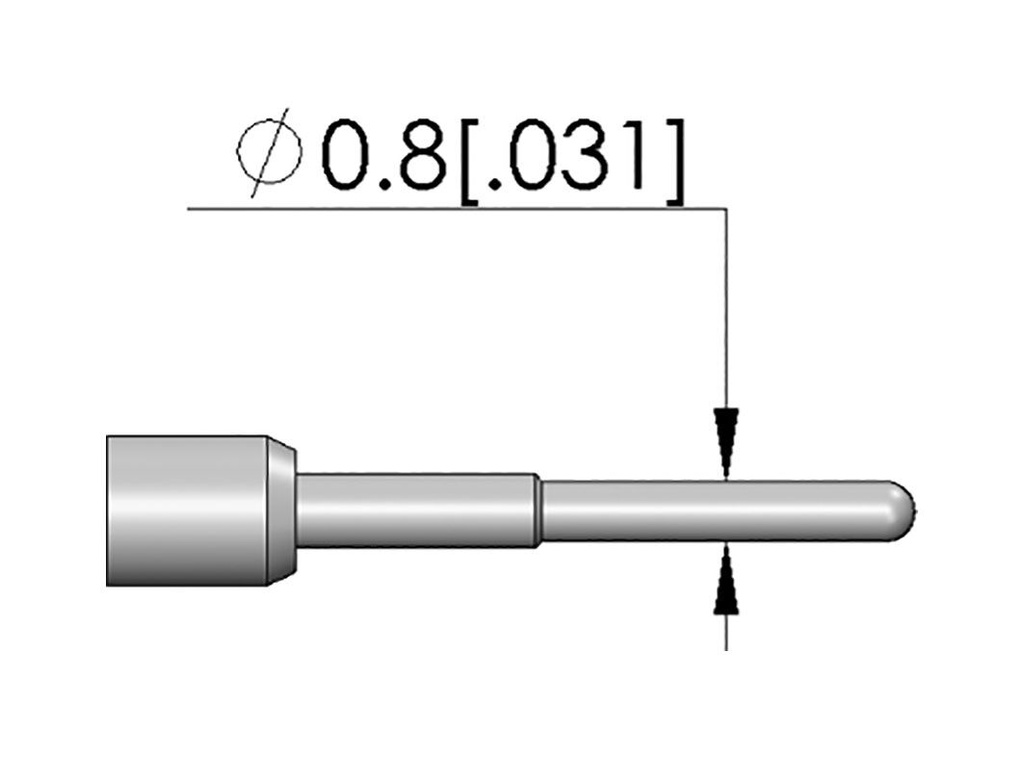

    Tip diameter 800µm
    Type of test accessories test probe
    Operational spring compression 4mm
    Maksimum spring compression 8mm
    Blade tip shape round
