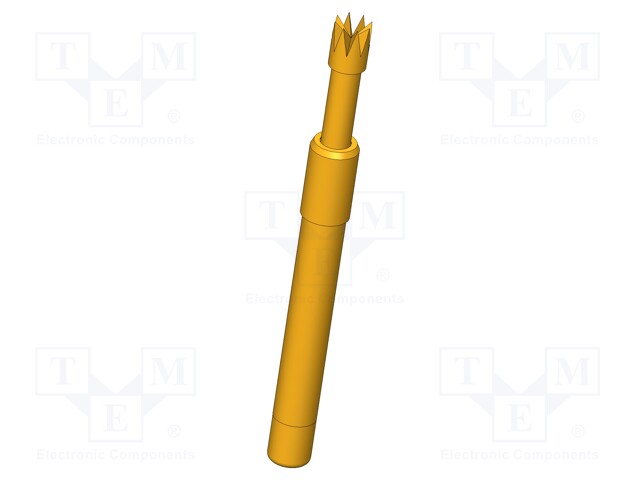

Test needle; GKS-113

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: GKS-113 288 230 A 0605
    Tootja: INGUN
    Tootja tootekood: GKS-113 288 230 A 0605
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Operational spring compression
    • Maksimum spring compression

    3,72 € 3,72 € (KM-TA) 3.72 EUR

    3,72 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Test needle; GKS-113

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating gold-plated
    Contact material steel
    Max. contact resistance 30mΩ
    Current rating 5A

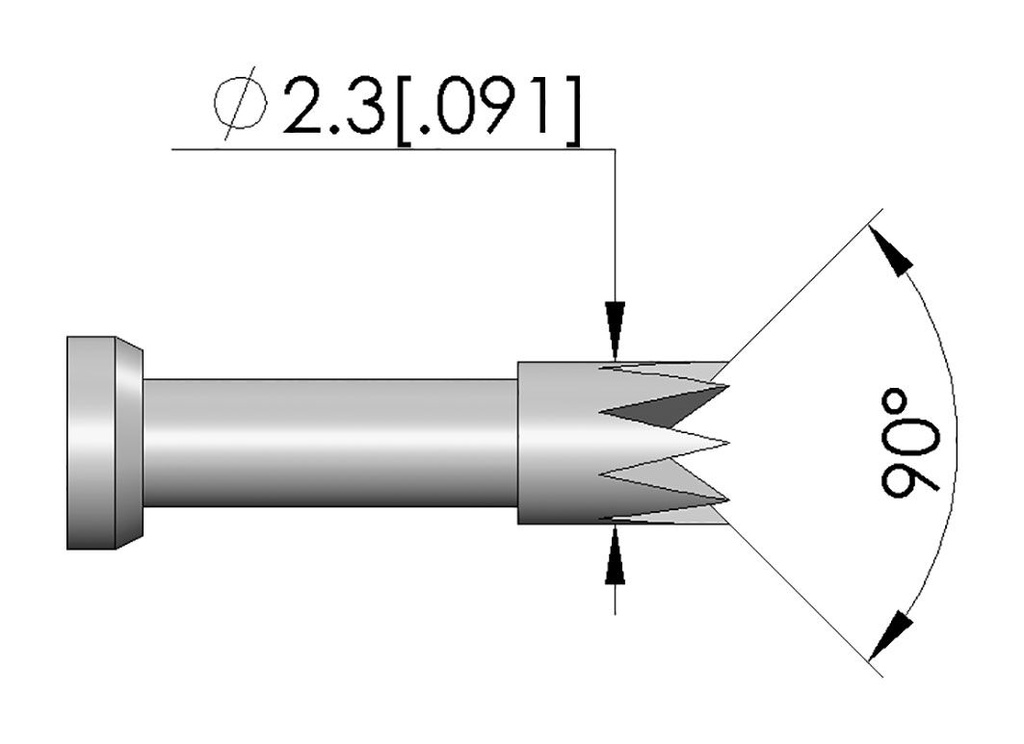

    Tip diameter 2.3mm
    Type of test accessories test probe
    Operational spring compression 4mm
    Maksimum spring compression 5.3mm
