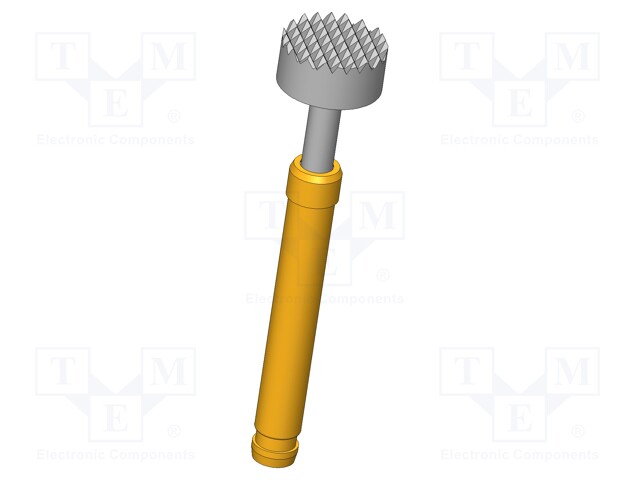

Test needle; GKS-113

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: GKS-113 306 600 R 5002
    Tootja: INGUN
    Tootja tootekood: GKS-113 306 600 R 5002
    • Mounting
    • Operating temperature
    • Contact plating
    • Contact material
    • Max. contact resistance
    • Current rating
    • Tip diameter
    • Type of test accessories
    • Operational spring compression
    • Maksimum spring compression

    3,72 € 3,72 € (KM-TA) 3.72 EUR

    3,72 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Test needle; GKS-113

    Mounting push-in
    Operating temperature -40...80°C
    Contact plating rhodium plated
    Contact material CuBe
    Max. contact resistance 30mΩ
    Current rating 8A

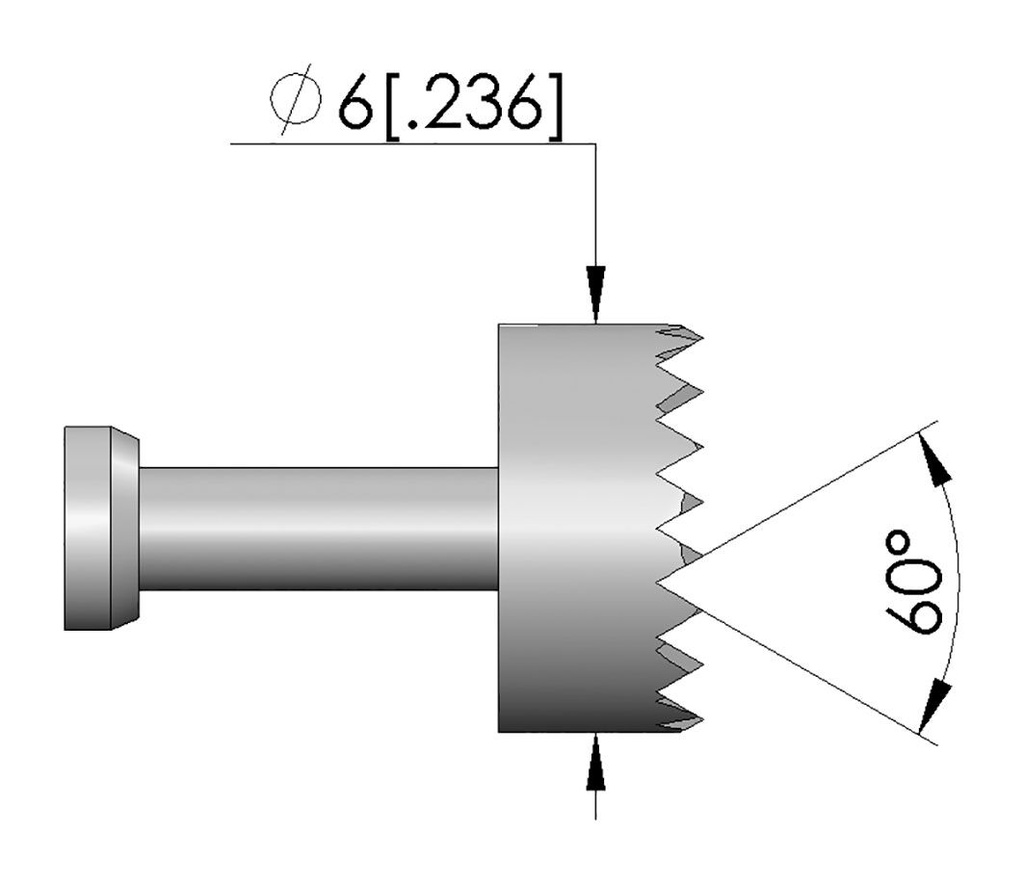

    Tip diameter 6mm
    Type of test accessories test probe
    Operational spring compression 4mm
    Maksimum spring compression 5.3mm
